Retrofit InCar Hotspot - AZ82.80-P-0002SC

MODEL 216.3/3/3 (except 216.374/377/379) with CODE (386) Comfort telephony

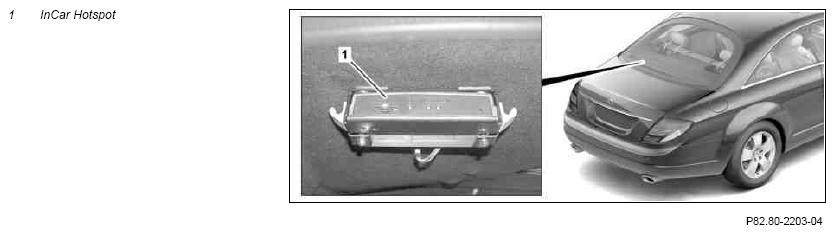

Fig 1: Identifying InCar Hotspot

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or Keyless-Go start/stop button from EZS control unit	Keyless-Go start/stop button only on vehicles with code (889) Keyless-Go.
2	Remove left paneling and top paneling in trunk		AR68.30-P-4600SX
3	Remove E-net compensator		AR82.70-P-0010SC
4	Remove rear shelf reinforcement		AR64.10-P-1200SX
5	Disconnect electrical connector of trunk Keyless-Go antenna	On vehicles with code (889) Keyless go The trunk Keyless-Go antenna is located at the bracket of the rear SAM control unit with fuse and relay module.
	Install
6	Retrofit wiring harness of InCar Hotspot (1)	Treat screw/bolt of ground connection of bracket at body with corrosion protection.	AZ82.80-P-0002-01SX
		Anticorrosion grease	*BR00.45-Z-1006-06A
7	Connect electrical connector of trunk Keyless- Go antenna	On vehicles with code (889) Keyless go
8	Install rear shelf reinforcement		AR64.10-P-1200SX
9	Install E-net compensator		AR82.70-P-0010SC
10	Install removed paneling in trunk		AR68.30-P-4600SX
11	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002SC " note under field organization texts .
12	Perform function test of InCar Hotspot (1)	See operator's manual for InCar Hotspot (1).
