Remove/install taillamp, trunk lid - AR82.10-P-4915SC

MODEL 216 as of model year 2011

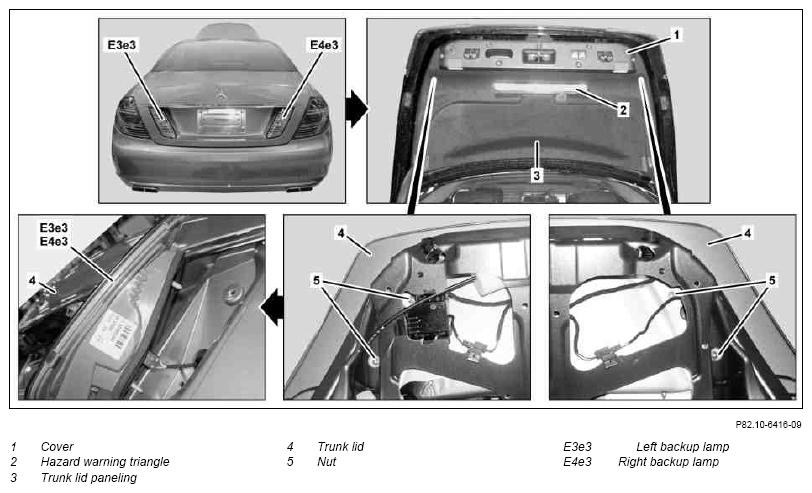

Fig 1: Identifying Taillamp And Trunk Lid Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1)
2	Remove hazard warning triangle (2) and remove holder
3	Detach trunk lid trim (3)		Figure
4	Remove nuts (5) for left backup lamp (E3e3) or right backup lamp (E4e3) from trunk lid (4)
5	Remove left backup lamp (E3e3) or right backup lamp (E4e3) from trunk lid (4)	Check sealing of left backup lamp (E3e3) or right backup lamp (E4e3) for signs of damage, replace if necessary.
6	Install in the reverse order

Fig 2: Identifying Snap-Release Tool (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
