Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LEA

MODEL 216.3 as of Model Year 2010 /AEJ 09

MODEL 221.0 /1 (except 221.095 /195) as of Model Year 2010 /AEJ 09 MOPF

Shown on model 216.3 up to 31.8.10

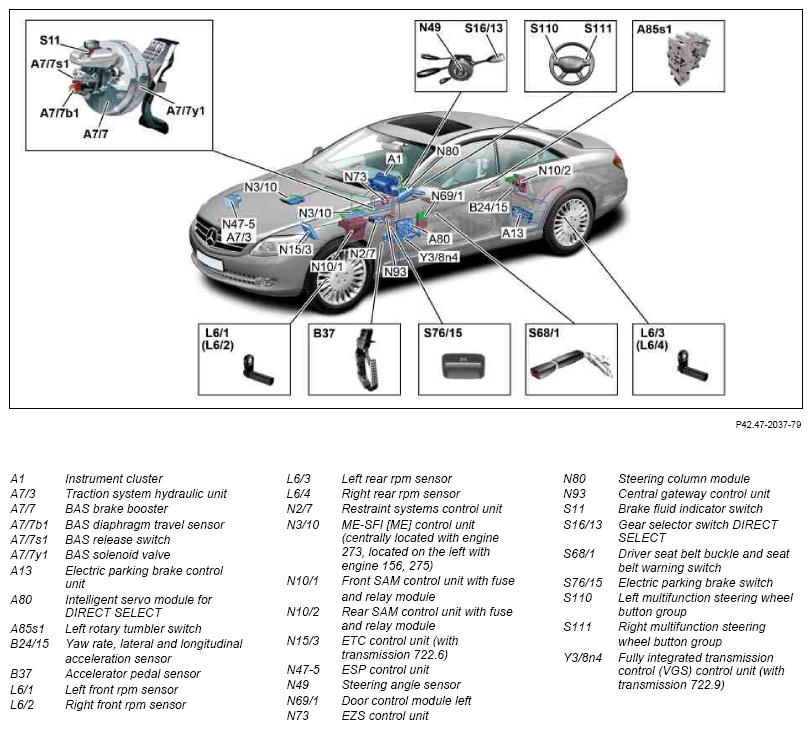

Fig 1: Overview Of Adaptive Brake (ABR) Components - Shown On Model 216.3 Up To 31.8.10

Courtesy of MERCEDES-BENZ USA

Shown on model 216.3 as of 1.9.10 (with basic system)

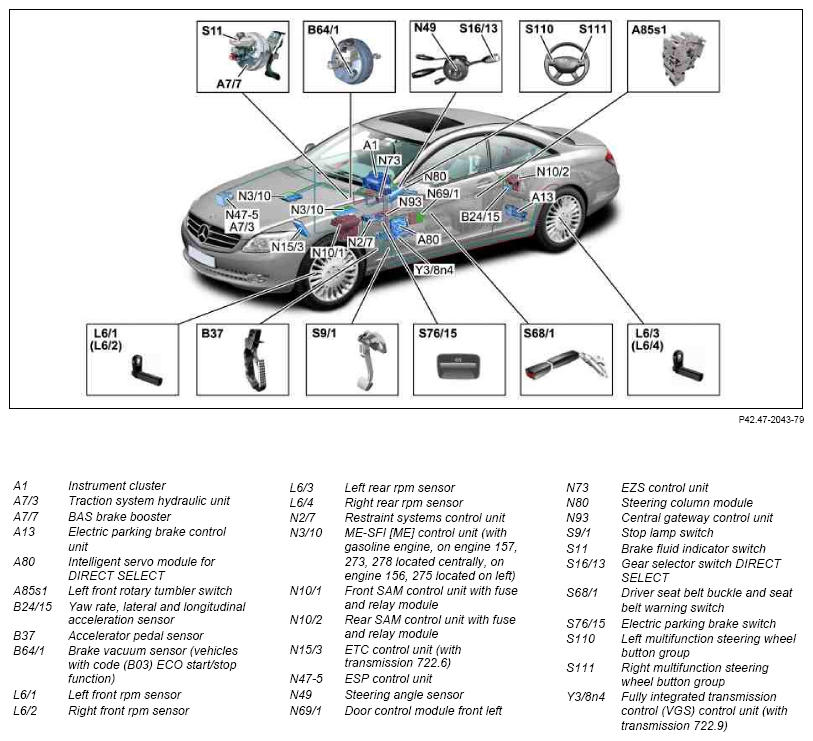

Fig 2: Overview Of Adaptive Brake (ABR) Components - Shown On Model 216.3 As Of 1.9.10

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 up to 31.8.10 (with basic system)

Fig 3: Overview Of Adaptive Brake (ABR) Components - Shown On Model 221.0 Up To 31.8.10

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 as of 1.9.10 (with basic system)

Fig 4: Overview Of Adaptive Brake (ABR) Components - Shown On Model 221.0 As Of 1.9.10

Courtesy of MERCEDES-BENZ USA
