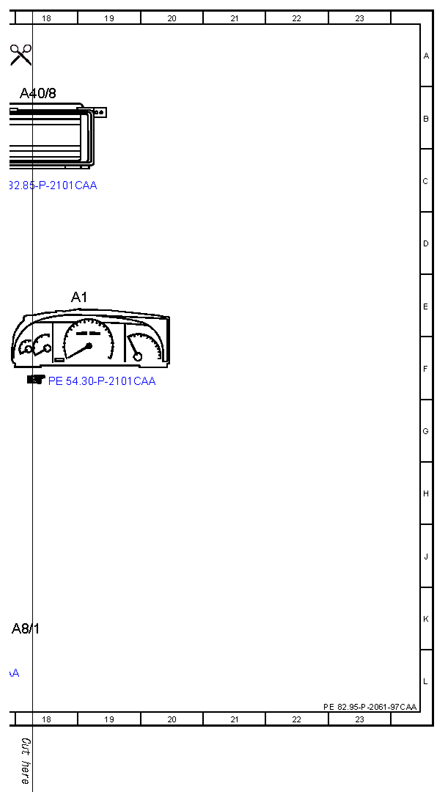

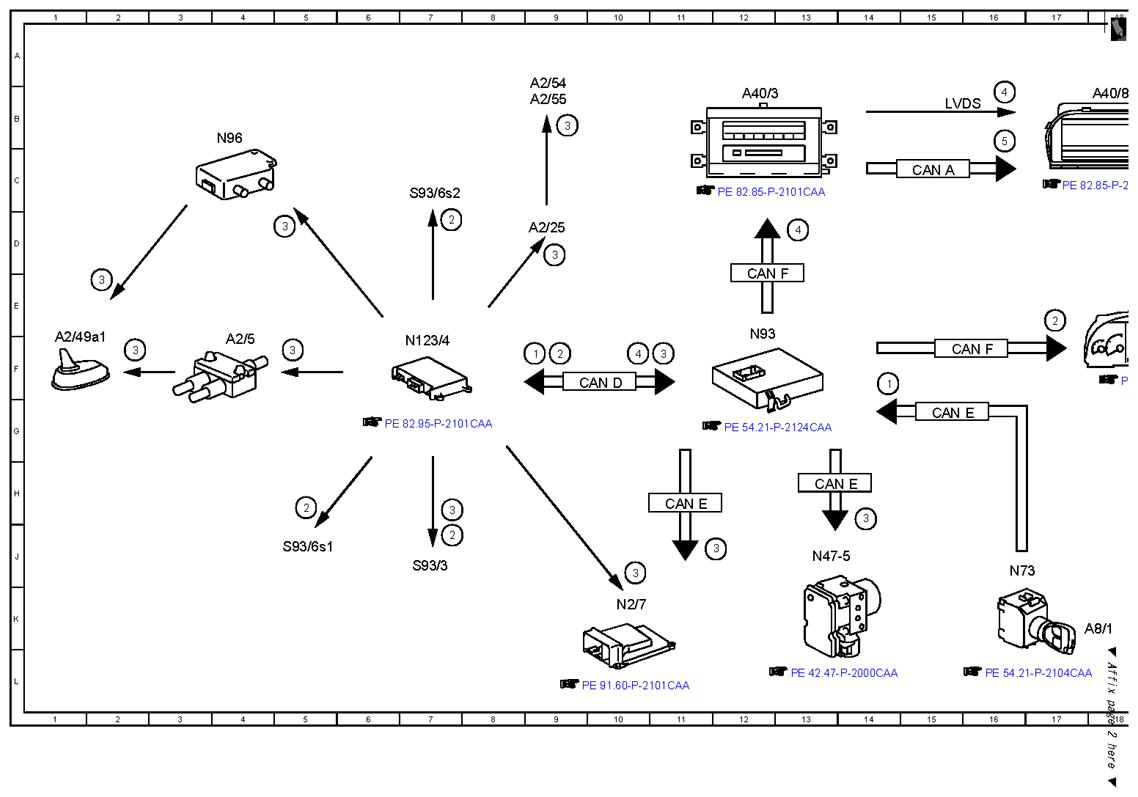

Electrical function diagram for status display of emergency call system, function - PE82.95-P-2061-97CAA
MODEL 216 with CODE (359) TELE AID emergency call system as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 14F |
| 1 | Circuit 15R/circuit 15, status ON | 9F |
| 2 | Status indication, signal | 9F |
| 2 | Status indication, signal | 7J |
| 2 | Status indication, signal | 5H |
| 2 | Status indication, signal | 7D |
| 2 | Status indication, signal | 9F |
| 3 | Check signal, signal | 9B |
| 3 | Check signal, signal | 9D |
| 3 | Check signal, signal | 5D |
| 3 | Check signal, signal | 2D |
| 3 | Check signal, signal | 2F |
| 3 | Check signal, signal | 5F |
| 3 | Check signal, signal | 7H |
| 3 | Check signal, signal | 11F |
| 3 | Check signal, signal | 10J |
| 3 | Check signal, signal | 11J |
| 3 | Check signal, signal | 14H |
| 4 | COMAND display, message | 10F |
| 4 | COMAND display, message | 16B |
| 4 | COMAND display, message | 13D |
| 5 | Switch on/off, signal | 16C |
| A1 | Instrument cluster | 19E |
| A2/25 | Emergency call system antenna splitter | 9D |
| A2/49a1 | Telephone antenna | 2F |
| A2/5 | Antenna splitter | 4F |
| A2/54 | Emergency call system left backup antenna | 9B |
| A2/55 | Emergency call system right backup antenna | 9B |
| A40/3 | COMAND control unit | 12B |
| A40/8 | COMAND display | 18B |
| A8/1 | Transmitter key | 18K |
| CAN A | Telematics CAN | 15C |
| CAN D | Diagnostic CAN | 10F |
| CAN E | Chassis CAN | 11H |
| CAN E | Chassis CAN | 13H |
| CAN E | Chassis CAN | 15G |
| CAN F | Central CAN | 16F |
| CAN F | Central CAN | 12D |
| LVDS | Low voltage differential signal | 16B |
| N123/4 | Emergency call system control unit | 7F |
| N2/7 | Restraint systems control unit | 10K |
| N47-5 | ESP control unit | 13J |
| N73 | EIS [EZS] control unit | 16J |
| N93 | Central gateway control unit | 12F |
| N96 | Frequency switchover control unit | 4B |
| S93/3 | SOS pushbutton switch | 7J |
| S93/6s1 | MB-Info button | 5J |
| S93/6s2 | Telediagnosis button | 7C |
