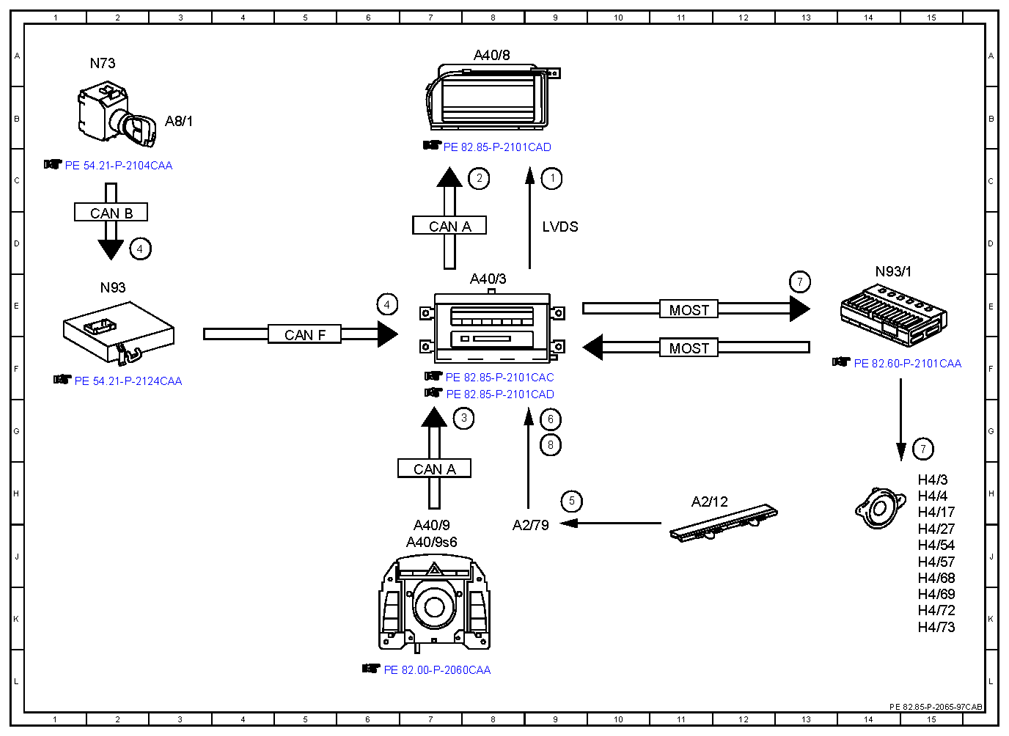

Electrical function diagram for TV mode, function - PE82.85-P-2065-97CAB
MODEL 216 with CODE (529) HIGH Class Japan as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Audio/COMAND display, signal | 9C |
| 2 | Switch-on request, signal | 8C |
| 3 | 7G | |
| 4 | Circuit 15R/circuit 15, status ON | 6E |
| 4 | Circuit 15R/circuit 15, status ON | 2D |
| 5 | TV antennas, signal | 9H |
| 6 | Video and TV, signal | 9G |
| 7 | Speaker, actuation | 13E |
| 7 | Speaker, actuation | 14G |
| 8 | Audio, signal | 9G |
| A2/12 | Rear window antenna amplifier module | 11H |
| A2/79 | TV antenna selector | 8H |
| A40/3 | COMAND control unit | 8E |
| A40/8 | COMAND display | 8A |
| A40/9 | Front central operating unit | 7J |
| A40/9s6 | Button "ON" | 7J |
| A8/1 | Transmitter key | 3B |
| CAN A | Telematics CAN | 7D |
| CAN A | Telematics CAN | 7H |
| CAN B | Interior CAN | 2D |
| CAN F | Central CAN | 5E |
| H4/17 | Bass module speaker | 15H |
| H4/27 | Center cockpit speaker (centerfill) | 15J |
| H4/3 | Left door rear speaker | 15H |
| H4/4 | Right door rear speaker | 15H |
| H4/54 | Left rear surround speaker | 15J |
| H4/57 | Right rear surround speaker | 15J |
| H4/68 | Left door Sound tweeter | 15J |
| H4/69 | Right door Sound tweeter | 15K |
| H4/72 | Left door Sound woofer and midrange speaker group | 15K |
| H4/73 | Right door Sound woofer and midrange speaker group | 15K |
| LVDS | Low voltage differential signal | 9D |
| MOST | Media Oriented System Transport | 11E |
| MOST | Media Oriented System Transport | 11F |
| N73 | EIS [EZS] control unit | 2A |
| N93 | Central gateway control unit | 2E |
| N93/1 | Audio tuner control unit | 15D |
