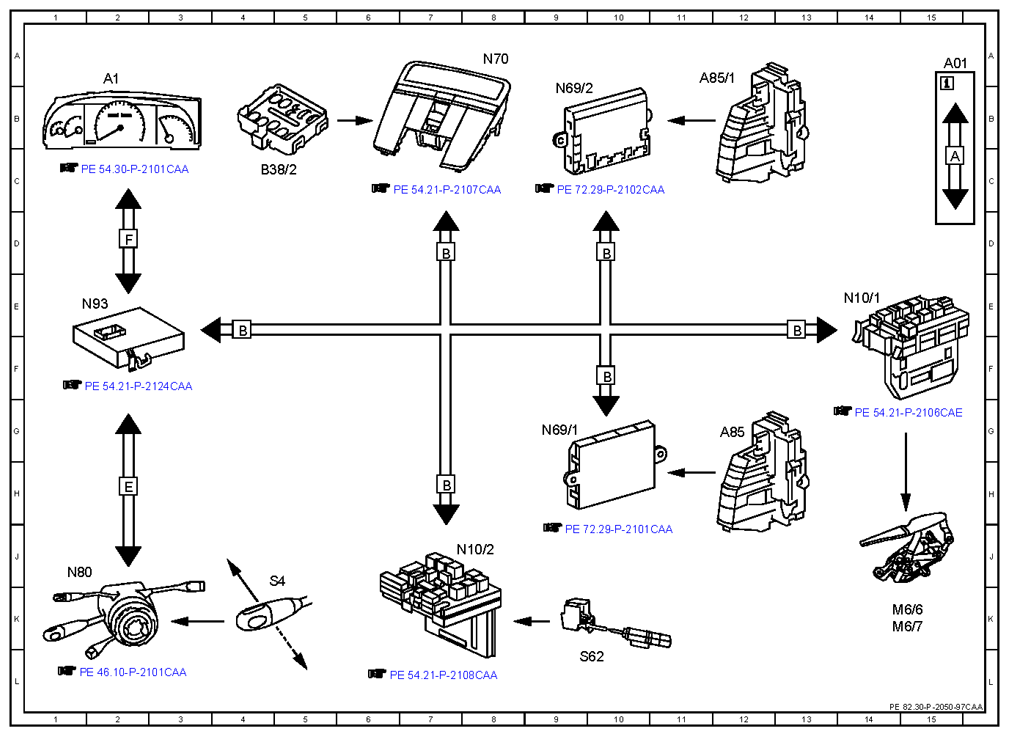

Electrical function schematic for windshield wipers - PE82.30-P-2050-97CAA
MODEL 216 with CODE (345) Rain sensor up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15A |
| A1 | Instrument cluster | 2A |
| A85 | Left door lock unit | 12G |
| A85/1 | Right door lock unit | 12B |
| B38/2 | Rain/light sensor | 5C |
| M6/6 | Master wiper motor | 15K |
| M6/7 | Slave wiper motor | 15K |
| N10/1 | Front SAM control unit with fuse and relay module | 14E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7J |
| N69/1 | Left door control unit | 9G |
| N69/2 | Right door control unit | 10B |
| N70 | Overhead control panel control unit | 8A |
| N80 | Steering column module | 1J |
| N93 | Central gateway control unit | 2E |
| S4 | Combination switch | 4J |
| S62 | ATA [EDW] hood switch | 9K |
