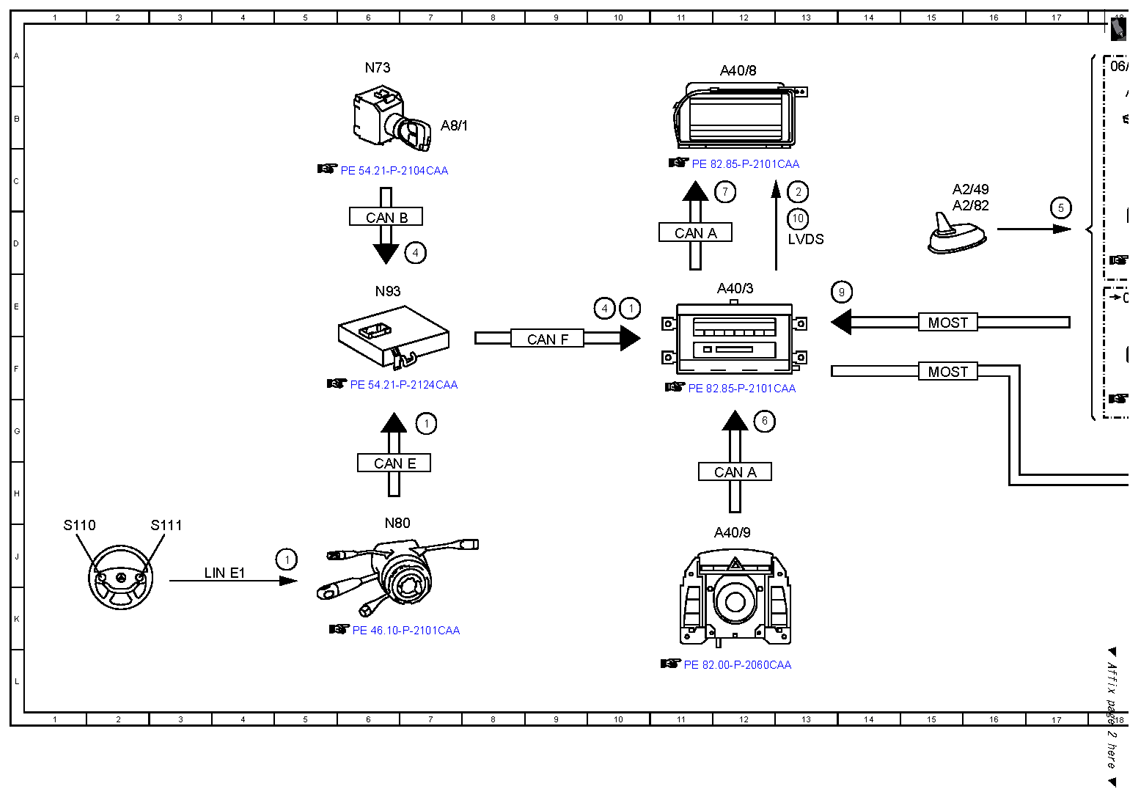

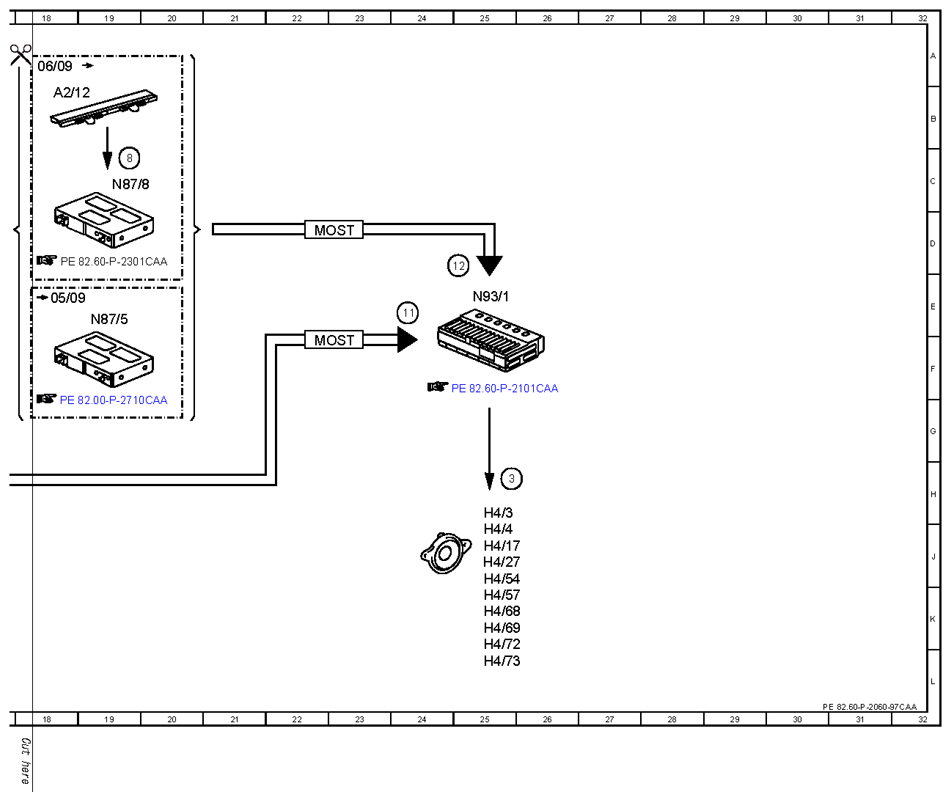

Electrical function schematic for SDAR function - PE82.60-P-2060-97CAA
MODEL 216 up to 31.5.09 with CODE (536) SIRIUS satellite radio as of model year 2009 /YoM 08
MODEL 216 with CODE (517) HD Radio as of model year 2010 /YoM 09
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 7G |
| 1 | Multifunction steering wheel button group, signal | 5J |
| 1 | Multifunction steering wheel button group, signal | 10E |
| 10 | Audio data display actuation | 13D |
| 11 | Speaker request | 24E |
| 12 | Audio, signal | 25D |
| 2 | Volume display, actuation | 13C |
| 3 | Speaker, actuation | 25H |
| 4 | Circuit 15R/circuit 15, status ON | 7D |
| 4 | Circuit 15R/circuit 15, status ON | 10E |
| 5 | SDAR, signal | 17D |
| 6 | 12G | |
| 7 | Switch-on request, signal | 12C |
| 8 | FM antenna, signal | 19C |
| 9 | Audio data display request | 14E |
| A2/12 | Rear window antenna amplifier module | 18B |
| A2/49 | Telephone and GPS antenna | 15C |
| A2/82 | SDAR antenna | 15C |
| A40/3 | COMAND control unit | 12E |
| A40/8 | COMAND display | 12A |
| A40/9 | Front central operating unit | 12J |
| A8/1 | Transmitter key | 7B |
| CAN A | Telematics CAN | 11D |
| CAN A | Telematics CAN | 12G |
| CAN B | Interior CAN | 6D |
| CAN E | Chassis CAN | 6G |
| CAN F | Central CAN | 9E |
| H4/17 | Bass module speaker | 25J |
| H4/27 | Center cockpit speaker (centerfill) | 25J |
| H4/3 | Left door rear speaker | 25H |
| H4/4 | Right door rear speaker | 25J |
| H4/54 | Left rear surround speaker | 25J |
| H4/57 | Right rear surround speaker | 25K |
| H4/68 | Left door Sound tweeter | 25K |
| H4/69 | Right door Sound tweeter | 25K |
| H4/72 | Left door Sound woofer and midrange speaker group | 25K |
| H4/73 | Right door Sound woofer and midrange speaker group | 25L |
| LIN E1 | Steering LIN | 3J |
| LVDS | Low voltage differential signal | 13D |
| MOST | Media Oriented System Transport | 15E |
| MOST | Media Oriented System Transport | 15F |
| MOST | Media Oriented System Transport | 23D |
| MOST | Media Oriented System Transport | 23F |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 6J |
| N87/5 | SDAR control unit | 19E |
| N87/8 | High-definition tuner control unit | 19C |
| N93 | Central gateway control unit | 6E |
| N93/1 | Audio tuner control unit | 25E |
| S110 | Left multifunction steering wheel button group | 1J |
| S111 | Right multifunction steering wheel button group | 3J |
