Separate hydraulic lines (ABC) - AR32.50-P-0024SX

MODEL 216, 221.0 /1 with CODE (487) Active Body Control (ABC)

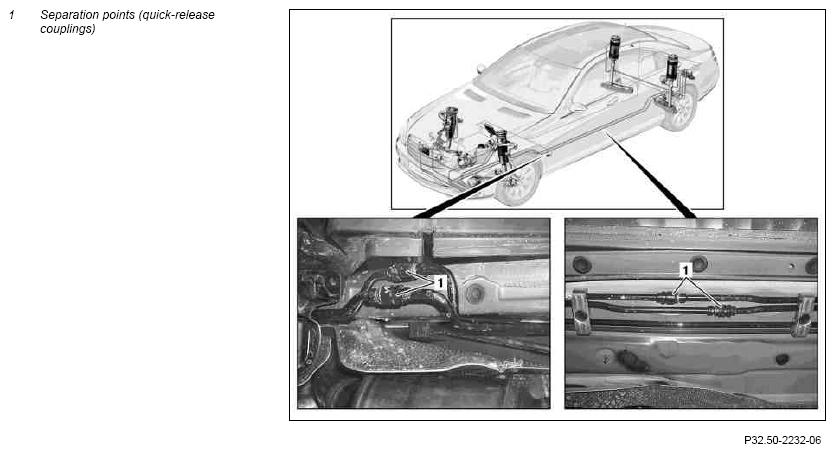

Fig 1: Identifying Separation Points - Quick-Release Couplings (1 Of 2)

Courtesy of MERCEDES-BENZ USA

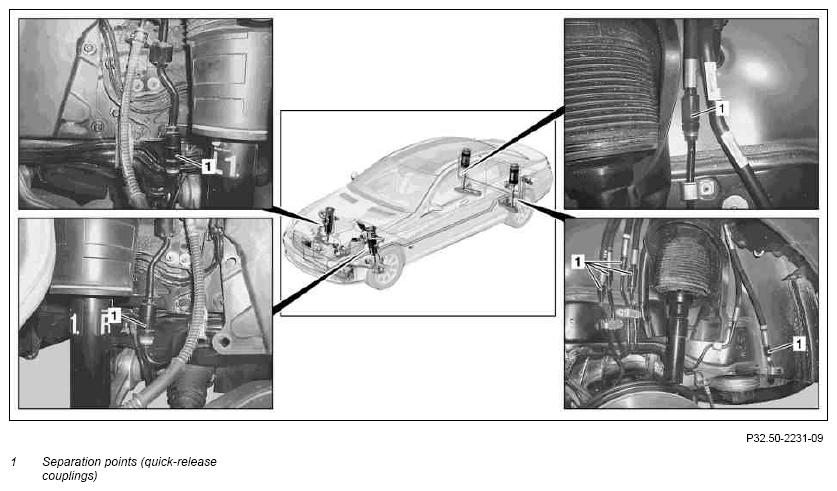

Fig 2: Identifying Separation Points - Quick-Release Couplings (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
1	Expose the respective separation point (1)
2	Relieve pressure in ABC system	The pressure can be relieved separately for the front axle, rear axle or for the respective suspension strut.	AR32.50-P-0001-01N
3	Clean the area around the separation points (quick-release couplings) (1)	Ensure that no dirt gets into the open separation points (quick-release couplings) as this can lead to the failure of the ABC system.
4	Separate hydraulic lines using release tool on the respective separation points (quick-release couplings) (1)	Observe different cross-sections of the quick-release couplings.
			*221589013300
		Installation:  Ensure that the quick-release couplings latch completely.	*230589013300
5	Install in the reverse order
6	Fill and bleed ABC system		AR32.50-P-0021SX

Fig 3: Identifying Detaching Tool (221 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Detaching Tool (230 589 01 33 00)

Courtesy of MERCEDES-BENZ USA
