Active Body Control (ABC), location of components - GF32.50-P-0001-01LE

Shown on model 221.0

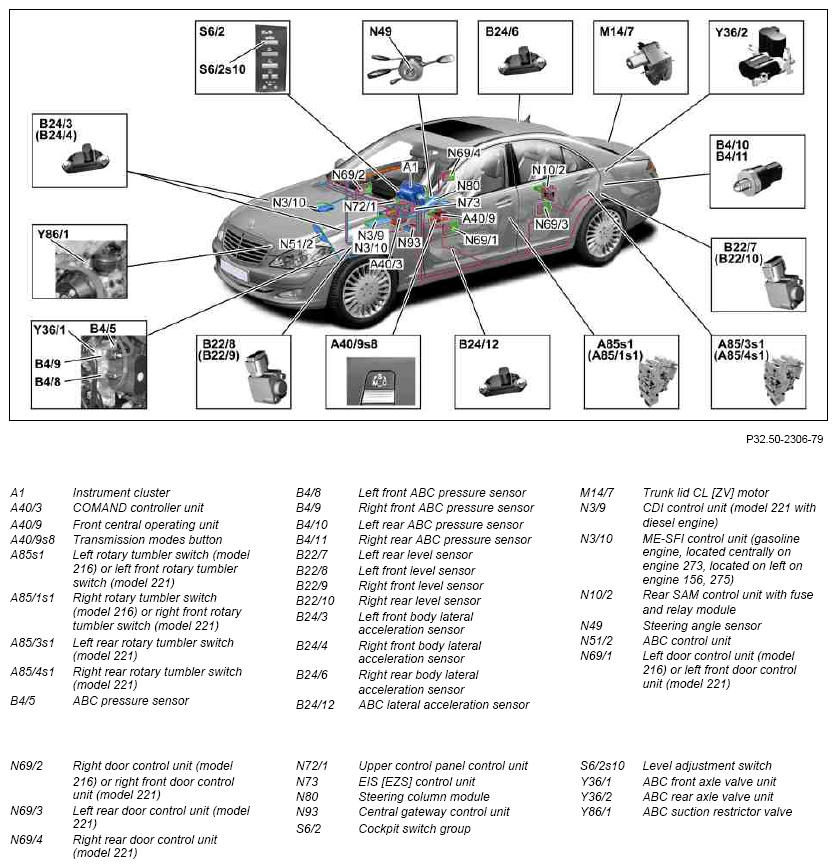

Fig 1: Identifying Active Body Control (ABC) Components Location

G07536560

Courtesy of MERCEDES-BENZ USA
