Remove/install pressure sensor throttle valve actuator - AR07.04-P-0101HA
ENGINE 275 in MODEL 215, 216, 220, 221, 230 Pressure sensor downstream of throttle valve actuator
ENGINE 285 in MODEL 240 Pressure sensor downstream of throttle valve actuator
Illustrated on model 240

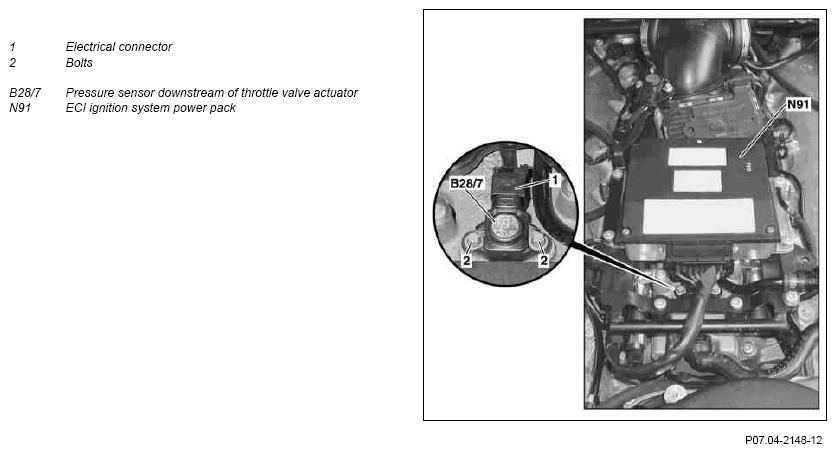

Fig 1: Identifying Pressure Sensor Of Throttle Valve Actuator, ECI Ignition System Power Pack And Bolt
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove engine trim panel | Engine 275.95 | AR01.10-P-2405LA |
| Engine 275.98 | AR01.10-P-2405IM | ||
| 2 | Dismount ECI ignition system power pack (N91) from bracket and place to the side | AR15.15-P-2093H | |
| *BA15.15-P-1003-01A | |||
| 3 | Disconnect electrical connector (1) | ||
| 4 | Unscrew bolts (2) and take out pressure sensor downstream throttle valve actuator (B28/7) | *BA07.04-P-1001-01C | |
| 5 | Install in the reverse order |
SENSORS
| Number | Designation | Engine 275, 285 | |
|---|---|---|---|
| BA07.04-P-1001-01C | Bolt, pressure sensor in front of throttle valve actuator to charge air manifold | Nm | 8 |
IGNITION SYSTEM ECI
| Number | Designation | Engine 275, 285 | |
|---|---|---|---|
| BA15.15-P-1003-01A | Bolt, ECI ignition system power pack to bracket | Nm | 8 |
