Remove/install camshaft Hall sensor - AR15.10-P-2000M

ENGINE 275 in MODEL 215, 216, 220, 221, 230

Illustrated on model 220

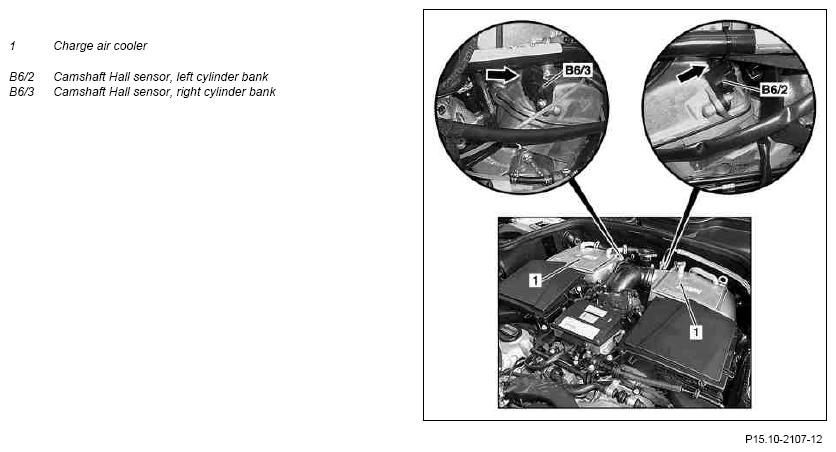

Fig 1: Identifying Camshaft Hall Sensor And Charge Air Cooler (Model 220)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Remove right charge air cooler (1) from engine and connect with connected coolant hoses to the engine hood	Do not open low temperature circuit.	AR09.41-P-6817HH
2	Pull out the plug (arrow)
3	Remove camshaft Hall sensor, left cylinder bank (B6/2) and camshaft Hall sensor, right cylinder bank (B6/3)	Installation:  Check sealing ring; replace if necessary.
			*BA15.10-P-1002-03D
4	Install in the reverse order
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Run engine and inspect for oil leaks
6	Read out fault memory and erase if required		*WH58.30-Z-1048-13A
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
