Crank engine with starter - AR01.10-P-0110SX
ENGINES 156, 272, 273, 275, 642, 651 (except, 272.974) in MODEL 221
ENGINES 156, 273, 275 in MODEL 216
ENGINES 642 in MODEL 212
ENGINES 642 in MODEL 218
Shown on model 221
| Attaching | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. | AS00.00-Z-0005-01A | |
| Wear closed and snug-fitting work clothes. | |||
| Do not touch hot or rotating parts. | |||
| 1 | Bring transmission into neutral and switch off ignition | ||

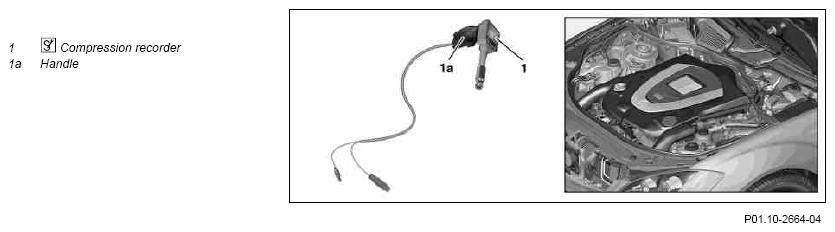

| 2 | Connect up electrical feed lines for compression recorder (1) | Engines 272, 273, 275, 642, 651 | AR01.10-P-0010-01SX |
| Engine 156 | AR01.10-P-0010-01GZ | ||
| *001589762100 | |||
| *220589009900 | |||
| 3 | Crank engine by pressing contact switch at handle (1a) for the compression recorder (1) | ||
| Removal | |||
| 4 | Disconnect electrical feed lines for compression recorder (1) | Engines 272, 273, 275, 642, 651 | AR01.10-P-0010-01SX |
| Engine 156 | AR01.10-P-0010-01GZ | ||
| *001589762100 | |||
| *220589009900 |
