Check cylinder head bolts - AR01.30-P-5800-03M
CYLINDER HEAD/CYLINDER HEAD BOLTS
| Number | Designation | Engine 275, 285 | ||
|---|---|---|---|---|
| BE01.30-P-1001-04B | Cylinder head bolt | Thread diameter | M | 10 |
| Length (L) when new | mm | 132/1685 | ||
| Length (L) | mm | ≤33.5/170 | ||

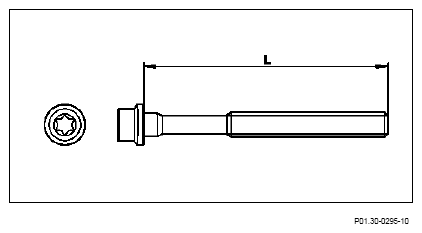

| See picture | - |
Measure length (L). If length (L) of connecting rod bolts exceeds the maximum permissible dimension, the cylinder head bolt must be replaced.
