Bolt plan for coolant pump - AR20.10-P-1271-03L
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 137, 275 | Engine 285 | ||
|---|---|---|---|---|---|
| BA20.10-P-1004-01C | Coolant pump on timing case | M7 | Nm | 14 | 14 |

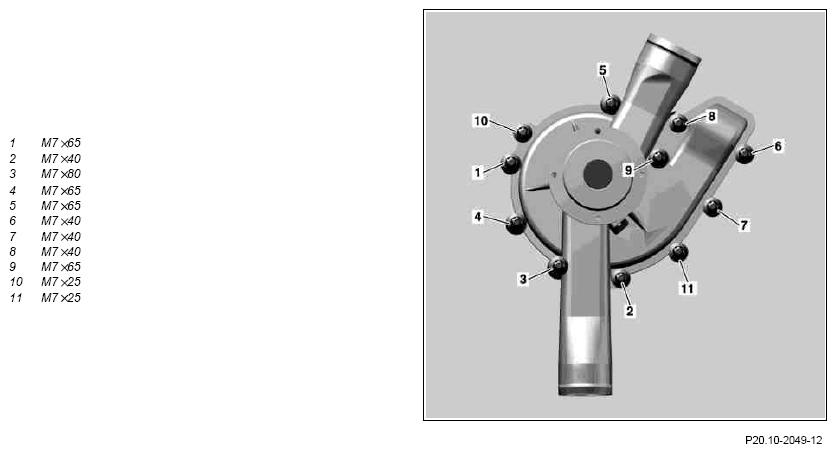

1 to 9: Bolts for fastening coolant pump at timing case cover and simultaneously fastening timing case cover to crankcase.
10 and 11: Bolts for fastening coolant pump to timing case cover.
- Screw in bolts according to the tightening sequence.
Item number corresponding to tightening sequence.
