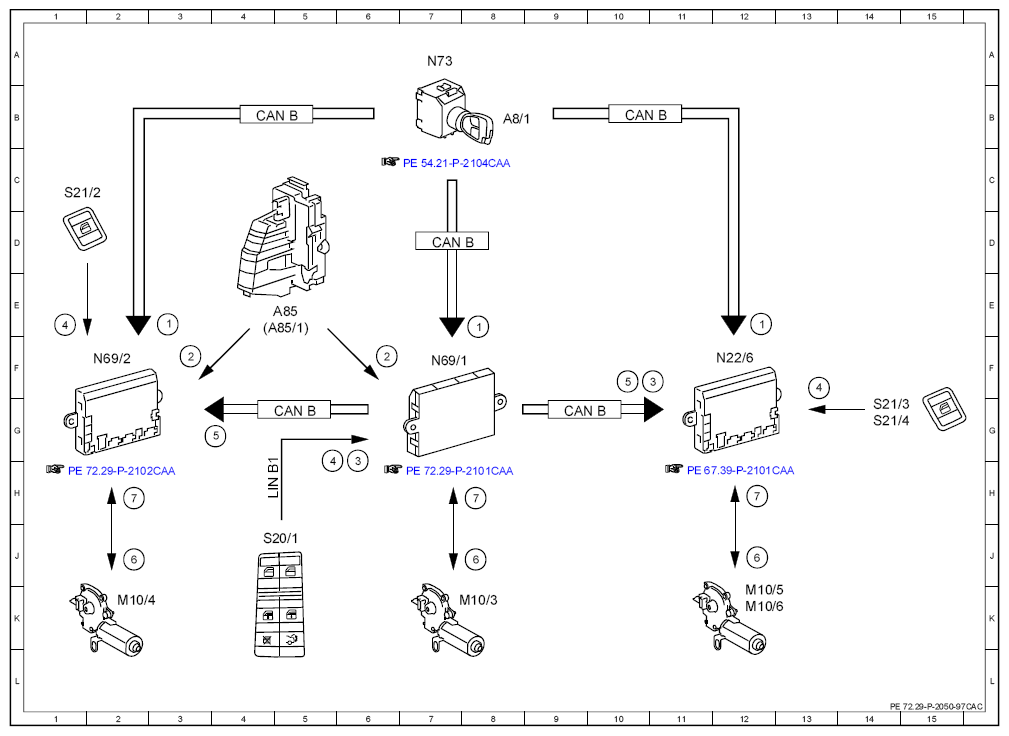

| 1 |
Circuit 15, status |
12E |
| 1 |
Circuit 15, status |
8E |
| 1 |
Circuit 15, status |
3E |
| 2 |
Door rotary tumbler switch, status |
3F |
| 2 |
Door rotary tumbler switch, status |
6F |
| 3 |
Child safety lock switch, status |
6G |
| 3 |
Child safety lock switch, status |
11F |
| 4 |
Power window switch, status |
13F |
| 4 |
Power window switch, status |
6H |
| 4 |
Power window switch, status |
1E |
| 5 |
Power window motor, request |
4G |
| 5 |
Power window motor, request |
10F |
| 6 |
Power window motor, actuation |
2J |
| 6 |
Power window motor, actuation |
8J |
| 6 |
Power window motor, actuation |
12J |
| 7 |
Power window motor, signal |
2H |
| 7 |
Power window motor, signal |
8H |
| 7 |
Power window motor, signal |
12H |
| A8/1 |
Transmitter key |
8B |
| A85 |
Left door lock unit |
5E |
| A85/1 |
Right door lock unit |
5E |
| CANB |
Interior CAN |
5B |
| CANB |
Interior CAN |
11B |
| CANB |
Interior CAN |
8D |
| CANB |
Interior CAN |
5G |
| CANB |
Interior CAN |
10G |
| LINB1 |
Front door LIN |
5H |
| M10/3 |
Left front power window motor |
8K |
| M10/4 |
Right front power window motor |
2K |
| M10/5 |
Left rear power window motor |
12K |
| M10/6 |
Right rear power window motor |
12K |
| N22/6 |
Rear control unit |
12F |
| N69/1 |
Left door control unit |
7F |
| N69/2 |
Right door control unit |
2G |
| N73 |
EIS [EZS] control unit |
7B |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
5J |
| S21/2 |
Front passenger power window switch |
1D |
| S21/3 |
Left rear power window switch |
14G |
| S21/4 |
Right rear power window switch |
14G |
