Remove/install outside door handle on front door - AR72.10-P-2400SC

MODEL 216.3

Shown with code (889) Keyless Go

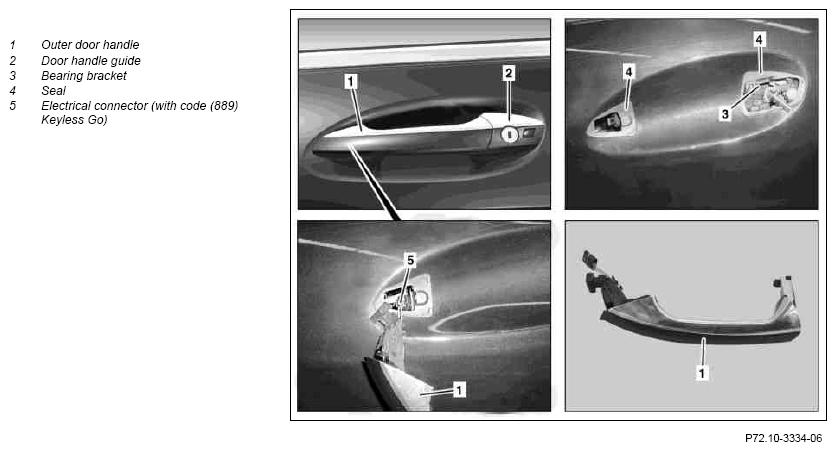

Fig 1: Identifying Front Door Outside Handle Components

Courtesy of MERCEDES-BENZ USA

	Removing, installing
1	Remove door handle guide (2).		*BA72.10-P-1005-01Q
2.1	Pull outer door handle (1) out of bearing bracket (3) toward rear and remove Installation  : Ensure that gaskets (4) seat properly.	On vehicles without code (889) Keyless go
2.2	Pull outer door handle (1) out of bearing bracket (3) toward rear, disconnect electrical connector (5) and remove outer door handle (1)	On vehicles with code (889) Keyless go Installation  : Ensure that electrical connector (5) is seated correctly on bearing bracket (3). Ensure that gaskets (4) are seated correctly.
3	Install in the reverse order

FRONT DOOR

Number	Designation		Model 216
BA72.10-P-1005-01Q	Bolt of guide of lock cylinder to front door	Nm	3
