Home >> Mercedes Benz >> 2014 >> CL600 >> Repair and Diagnosis >> Body & Frame >> Windows >> Doors & Windows -- Cl600 (216.376) >> Basic Knowledge >> Power windows (PW), location of components - GF72.29-P-0003-01LA

Power windows (PW), location of components - GF72.29-P-0003-01LA

REFER TO BASIC KNOWLEDGE

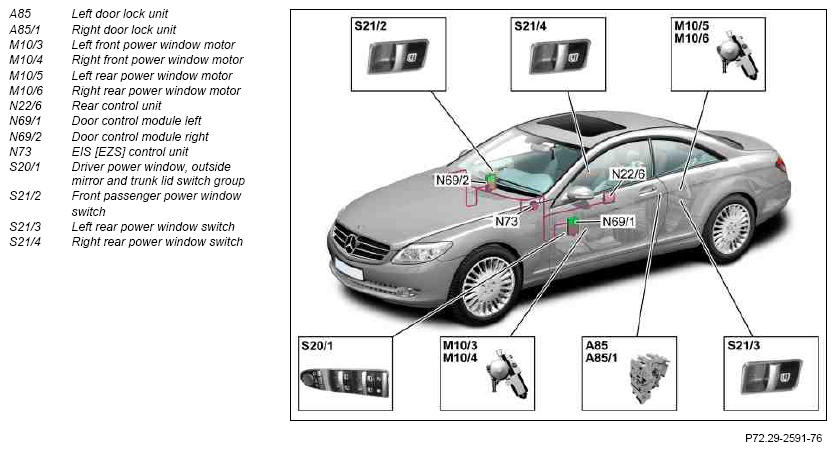

Fig 1: Identifying Power Windows Components Location
G07542797Courtesy of MERCEDES-BENZ USA
