Power window (PW), block diagram - GF72.29-P-0003-03SC

REFER TO BASIC KNOWLEDGE

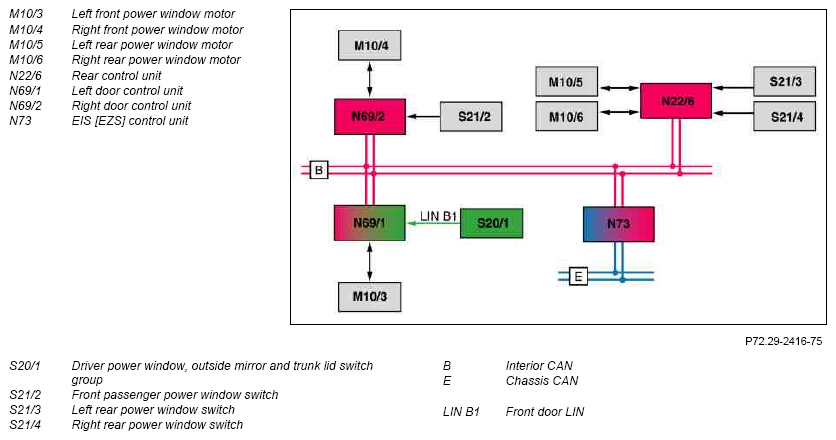

Fig 1: Power Window Block Diagram
G07542800Courtesy of MERCEDES-BENZ USA
