Remove/install tilting/sliding roof motor - AR77.20-P-3010SX

MODEL 221.0 with CODE (414) Power glass tilting/sliding roof

MODEL 221.1, 216.3

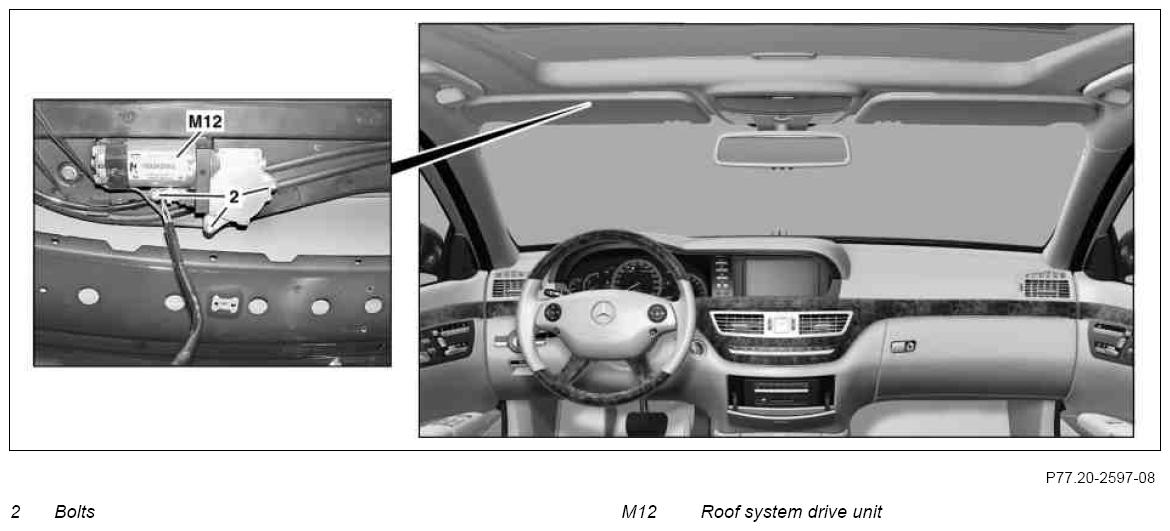

Fig 1: Identifying Tilting/Sliding Roof Motor Components

G07544393

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

23.3.06	Bolt to sliding roof drive	Model 221	*BA77.20-P-1001-01J
30.3.06	"Check position of input shafts" added	Step 5	AR77.20-P-1400-01SX

	Remove/install
1	Move tilting/sliding roof panel to tilt position
2	Completely open sliding roof lining
3	Remove left and right rubber bellows from tilting/sliding roof panel	Carefully loosen rubber bellows from lower arrest and then pull off of tilting/ sliding roof panel to prevent damaging the rubber bellows. Observe installation position of rubber bellows. Do not swap rubber bellows.
4	Loosen headliner in front left area until roof system drive unit (M12) is accessible.	Pull headliner down carefully so as not to damage it.
		Model 221	AR68.30-P-4300SX
		Model 216	AR68.30-P-4300SC
5	Unscrew bolts (2) and remove roof system drive unit (M12)		*BA77.20-P-1001-01J
5	Unscrew bolts (2) and remove roof system drive unit (M12)	Installation: Check position of input shafts; if necessary, adjust by moving drive wedge on lower gate.	AR77.20-P-1400-01SX
6	Install in the reverse order
7	Perform teach-in run for tilting/sliding roof anti-pinch protection
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

ELECTRIC SLIDING ROOF

Number	Designation			Model 216	Model 221
BA77.20-P-1001-01J	Bolt to sliding roof drive	Torx	Nm	3	3
