Remove/install license plate lamps - AR82.10-P-5161SX

MODEL 216.3, 221.0 /1

Illustrated on model 221

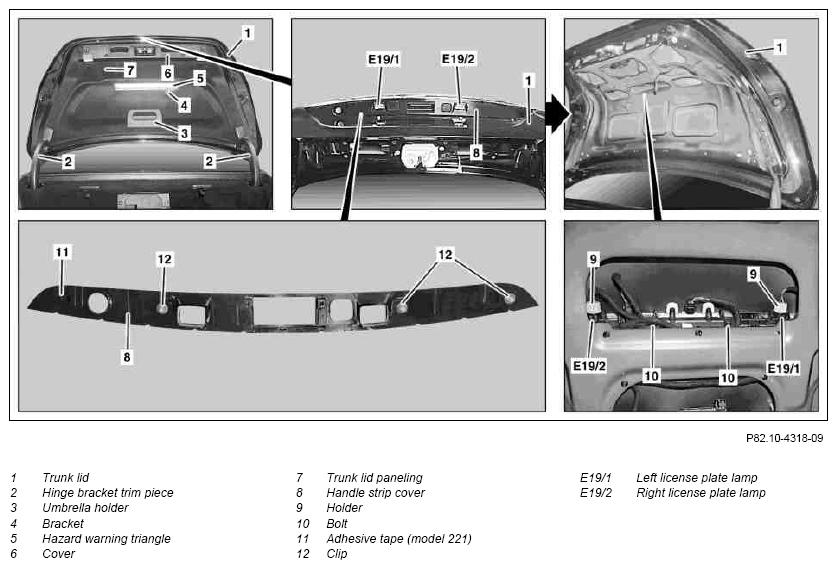

Fig 1: Identifying License Plate Lamps Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach trunk lid trim (7)
2	Remove socket (9) of left license plate lamp (E19/1) or right license plate lamp (E19/2)
3.1	Remove bulb from left or right socket (9)	When replacing the bulbs.
4	Remove bolts (10)
5	Unclip handle strip cover (8) from the inside	Start on the right hand side of the vehicle. On model 216, a clip is installed instead of the adhesive tape (11). Installation  : For model 221, check adhesive tape (11) and replace if necessary.
6	Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from the inside
7	Install in the reverse order
