Remove/install front axle level sensors - AR82.10-P-0004SX
MODEL 216, 221.0 /1
MODIFICATION NOTES
| 25.8.05 | Carry out level and plunger calibration, added | Step 5 |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |

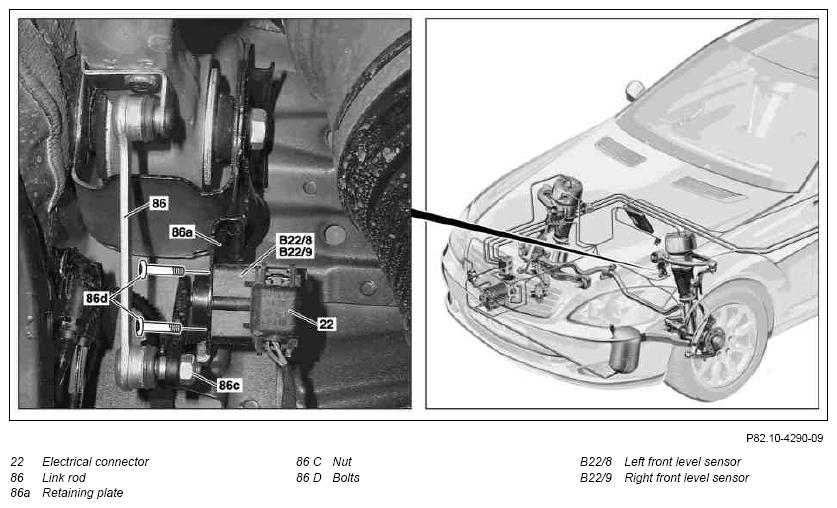

| 1 | Disconnect electrical connector (22) at level sensor (B22/8, B22/9) | ||
| 2 | Unscrew nut (86c) on link rod (86) from level sensor (B22/8, B22/9) and press link rod (86) out of level sensor (B22/8, B22/9) | *BA82.10-P-1002-01A | |
| 3 | Unscrew bolts (86d) on retaining plate (86a) and remove level sensor (B22/8, B22/9) | *BA82.10-P-1003-01A | |
| 4 | Install in the reverse order | ||
| 5 | Carry out level and plunger calibration using STAR DIAGNOSIS | STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A |
FRONT AXLE LEVEL SENSOR
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA82.10-P-1002-01A | Nut, connecting rod to level sensor | Nm | 6 | 5 |
| BA82.10-P-1003-01A | Bolt/nut of level sensor to retaining plate | Nm | 4 | 5 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR diagnostic system, Compact Passenger Car | 6511 1801 00 |
