Remove/install bulbs of headlamp unit - AR82.10-P-1201SC

MODEL 216.3 up to model year 2011

Shown on the left front lamp unit

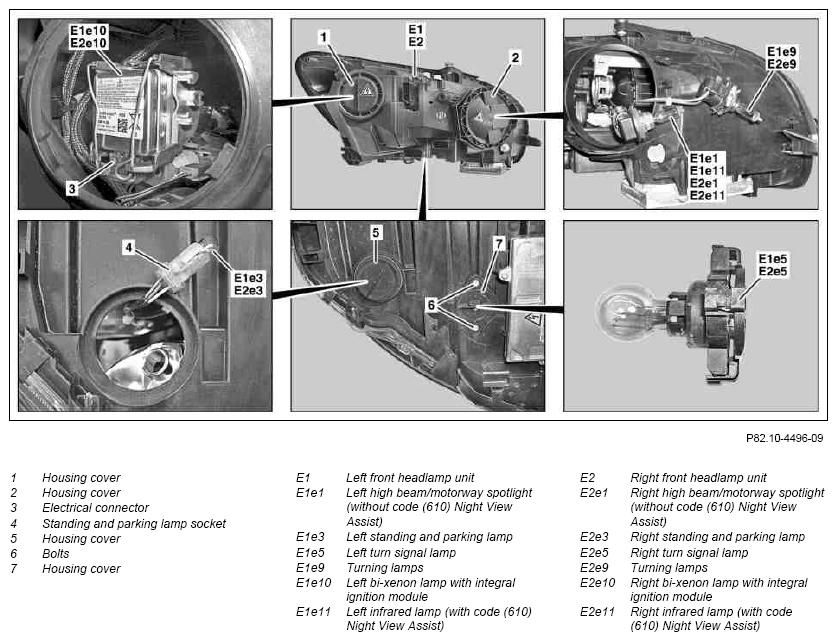

Fig 1: Identifying Headlamp Unit Bulbs Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Picture item, etc.	Work instructions
	Risk of death  caused by high voltage at xenon headlamps. Risk of explosion/risk of fire  caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury  caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning  caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area.	AS82.10-Z-0001-01A
	Do not touch the glass bulb elements of the bulbs with fingers, but use a soft cloth free of oil and grease; otherwise the bulbs can be damaged by overheating during operation
	Switch off the exterior lights prior to the bulb replacement in order to avoid a short circuit
	Connect STAR DIAGNOSIS and bring "xenon bulb into removal position"	To change left bi-xenon lamp with integral ignition module (E1e10) or right bi-xenon lamp with integral ignition module (E2e10).	AD00.00-P-2000-04A
	Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EZS control unit	Keyless Go start/stop button only on vehicles with code (889) Keyless Go.
	Remove/install washer fluid reservoir of windshield washer system	Model 216.3 except 216.386 To change left standing light and parking light (E1e3) and left turn signal light (E1e5).	AR82.35-P-6000SY
		Type 216.386 To change left high beam/motorway spotlight (E1e1), corner-illuminating fog lamp (E1e9) and left infrared lamp (E1e11).	AR82.35-P-6000SX
	Remove/install telescoping nozzle for headlamp cleaning system	To change the left turn signal lamp (E1e5), remove the left telescopic nozzle and place to one side with the hose connected. To change right turn signal light (E2e5), remove right telescopic nozzle and place to one side with hose connected.	AR82.15-P-6100SX
	Detach/attach lower engine compartment paneling	Model 216.3 except model 216.376/379, to change right standing light and parking light (E2e3) and right turn signal light (E2e5), remove front engine compartment paneling. Model 216.386, to change left standing light and parking light (E1e3), left turn signal light (E1e5), right standing light and parking light (E2e3) and right turn signal light (E2e5), remove front engine compartment paneling.	AR61.20-P-1105SX
	Remove/install fender liner in front fender	Model 216.376/379, to change right standing light and parking light (E2e3) and right turn signal light (E2e5), remove front section of fender liner in right front fender. To change left bi-xenon lamp with integral ignition module (E1e10), remove front section of fender liner in left front fender.
	Remove/install expansion reservoir	To change right bi-xenon lamp with integral ignition module (E2e10), remove expansion reservoir and place to one side with lines connected.	AR20.30-P-4950SX
E1e1, E2e1	Left high beam/motorway spotlight, right high beam/motorway spotlight	On vehicles without code (610) Night View Assist, remove housing cover (2), turn high beam/motorway spotlight socket to the left and remove. Pull left high beam/motorway spotlight (E1e1) or right high beam/motorway spotlight (E2e1) out of high beam/motorway spotlight socket.
E1e3, E2e3	Left standing and parking lamp, right standing and parking lamp	Detach housing cover (5) and remove standing and parking lamp socket (4). Remove left standing and parking lamp (E1e3) or right standing and parking lamp (E2e3) from standing and parking lamp socket (4).
E1e5, E2e5	Left turn signal light, right turn signal light	Remove bolts (6) from housing cover (7) and remove housing cover (7). Remove left turn signal lamp (E1e5) from left front lamp unit (E1) or right turn signal lamp (E2e5) from the right front lamp unit (E2).
E1e9, E2e9	Turning lamps	Detach housing cover (2), twist cornering illumination socket to the left and remove. Remove cornering illumination (E1e9 or E2e9) from the cornering illumination socket.
E1e10, E2e10	Left bi-xenon lamp with integral ignition module, right bi-xenon lamp with integral ignition module	Detach housing cover (1), disconnect electrical connector (3), detach mounting clamp and pull out left bi-xenon lamp with integral ignition module (E1e10) or right bi-xenon lamp with integral ignition module (E2e10).
E1e11, E2e11	Left infrared lamp, right infrared lamp	On vehicles with code (610) Night View Assist. Detach housing cover (2), twist infrared lamp socket to the left and remove. Pull left infrared lamp (E1e11) or right infrared lamp (E2e11) out of infrared lamp socket.
