Remove/install bass module speaker - AR82.62-P-7839SX
MODEL 216.3, 221.0 /1

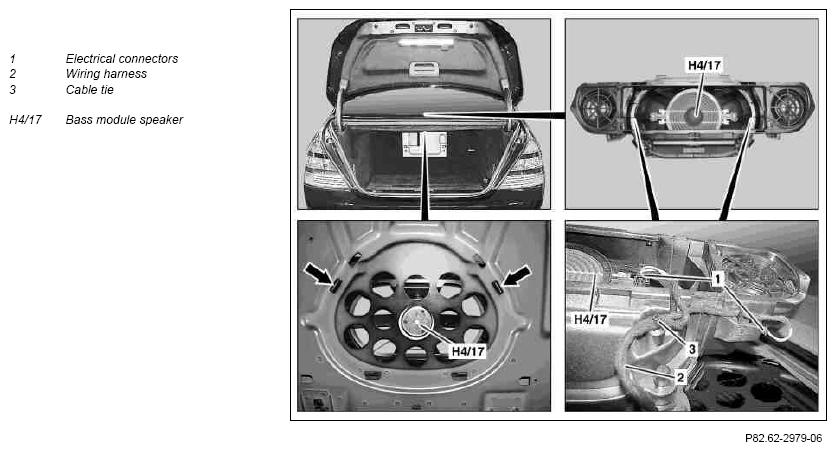

Shown on model 221 with code (810) Sound system
| Removing | |||
| 1 | Remove rear shelf | On model 221.0/1 without code (Z07) Top protection, without code (540) Electric rear window roller blind. | AR68.30-P-4580SX |
| On model 221.0/1 without code (Z07) Top protection, with code (540) Electric rear window roller blind, only remove front section. | AR68.30-P-4580SX | ||
| Model 216.3 only remove front section. | AR68.30-P-4580SC | ||
| 2 | Remove screws from roller blind | On vehicles with code (540) Electric rear window roller blind. | |
| Model 221.0/1 without code (Z07) Top protection. | AR68.30-P-4580SX | ||
| Model 216.3 | AR68.30-P-4580SC | ||
| 3 | Unlock catch hooks (arrows) of the bass module speaker (H4/17) | ||
| 4 | Remove bass module speaker (H4/17) from the guides until the electrical connectors (1) can be disconnected | ||
| 5 | Release cable tie (3) and expose electrical wiring harness (2) of bass module speaker (H4/17) | ||
| 6 | Disconnect electrical connectors (1) on the left and right at the bass module speaker (H4/17) | ||
| 7 | Remove bass module speaker (H4/17) | ||
| Install | |||
| 8 | Contact electrical connectors (1) at the left and right on the bass module speaker (H4/17) | ||
| 9 | Route electrical wiring harness (2) at the bass module speaker (H4/17) and affix with cable ties (3) | ||
| 10 | Insert bass module speaker (H4/17) in the guides and clip in | ||
| Fig 2 | |||
| 11 | Align the roller blind and tighten with screws | On vehicles with code (540) Electric rear window roller blind. | |
| Model 221.0/1 without code (Z07) Top protection. | AR68.30-P-4580SX | ||
| Model 216.3 | AR68.30-P-4580SC | ||
| 12 | Install rear shelf | ||
| Model 221.0/1 without code (Z07) Top protection. | AR68.30-P-4580SX | ||
| Model 216.3 | AR68.30-P-4580SC |
