Check wiper arms and adjust - AR82.30-P-6000SX
MODEL 216.3, 221.0 /1
Shown on model 221
| Check | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| When working on raised driver-side wiper arm (1) or passenger-side wiper arm (2), it has to be observed that they do not fall onto the windshield to prevent it from being damaged. | |||
| Outside the park position, the driver-side wiper arm (1) and passenger-side wiper arm (2), can be separately and manually adjusted, when the transmitter key is removed, because the master wiper motor and slave wiper motor are not mechanically connected. In the park position the driver-side wiper arm (1) is locked in place by the master wiper motor and the passenger-side wiper arm (2) by the slave wiper motor. Any movement of the driver-side wiper arm (1) or the passenger-side wiper arm (2), out of the park position, is then only possible when the wiper system is switched on. | |||

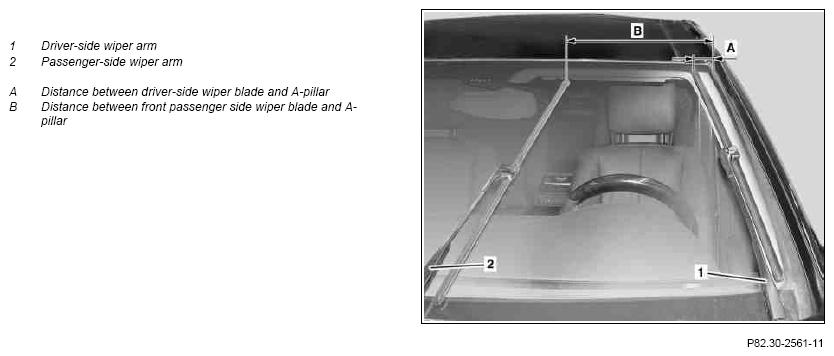

| 1 | Position the driver-side wiper arm (1) and passenger-side wiper arm (2) by hand in the reversing position | The reversing position of the passenger-side wiper arm (2) corresponds to the distance from the passenger-side wiper blade to the A-pillar (B) of approx. 400 mm. |
|
| 2 | Remove wiper blades | ||
| 3 | Measure the angle of incidence from the driver-side wiper arm (1) and from the passenger-side wiper arm (2) to the windshield, note it down and then compare the test value with the adjustment value | AR82.30-P-6000-01SX | |
| Angle of incidence of wiper arm on driver-side in reversing position | *BE82.30-P-1001-01L | ||
| Angle of incidence of wiper arm on front passenger side in reversing position | *BE82.30-P-1002-01L | ||
| Angle of incidence of driver-side wiper arm in lower section of wipe pattern | *BE82.30-P-1003-01L | ||
| Angle of incidence of passenger side wiper arm in lower section of wipe pattern | *BE82.30-P-1004-01L | ||
| Fig 2 | |||
| 4.1 | Adjust angle of incidence of driver-side wiper arm (1) or passenger-side wiper arm (2) | If test value deviates from tolerance range. |
AR82.30-P-6100-01SX |
| Angle of incidence of driver-side wiper arm in lower section of wipe pattern | *BE82.30-P-1003-01L | ||
| Angle of incidence of passenger side wiper arm in lower section of wipe pattern | *BE82.30-P-1004-01L | ||
| Fig 2 | |||
| 5 | Position the driver-side wiper arm (1) or passenger-side wiper arm (2) starting from the lower wipe field area in the reversing position and fit the wiper blades |
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number | Designation | Model 216 | Model 221 | ||
|---|---|---|---|---|---|
| BE82.30-P-1001-01L | Angle of incidence of wiper arm on driver-side in reversing position | Left-hand drive vehicle | ∠° | -2.5 to -7.0 | -2.5 to -7.0 |
| Right-hand drive vehicle | ∠° | +2.5 to +7.0 | +2.5 to +7.0 | ||
| BE82.30-P-1002-01L | Angle of incidence of wiper arm on front passenger side in reversing position | Left-hand drive vehicle | ∠° | -0.5 to -4.0 | -0.5 to -4.0 |
| Right-hand drive vehicle | ∠° | +0.5 to +4.0 | +0.5 to +4.0 | ||
| BE82.30-P-1003-01L | Angle of incidence of wiper arm on driver-side in park position | Left-hand drive vehicle | ∠° | +2.0 to +6.0 | +2.0 to +6.0 |
| Right-hand drive vehicle | ∠° | -2.0 to -6.0 | -2.0 to -6.0 | ||
| BE82.30-P-1004-01L | Angle of incidence of wiper arm on front passenger side in park position | Left-hand drive vehicle | ∠° | +2.0 to +6.0 | +2.0 to +6.0 |
| Right-hand drive vehicle | ∠° | -2.0 to -6.0 | -2.0 to -6.0 | ||
