Wiring diagram, right dashboard fuse box - PE54.15-P-2512-97CAA
MODEL 216.3 Fuse box F1/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A40/3 | COMAND control unit | 18L |
| A40/3 | COMAND control unit | 18L |
| A6 | STH heater unit | 50L |
| A6/1 | STH radio remote control receiver | 54L |
| A80 | Intelligent servo module for DIRECT SELECT | 46L |
| F1/6 | Right instrument panel fuse box | 4A |
| F1/6 | Right instrument panel fuse box | 12A |
| F1/6 | Right instrument panel fuse box | 22A |
| F1/6 | Right instrument panel fuse box | 28A |
| F1/6 | Right instrument panel fuse box | 36A |
| F1/6 | Right instrument panel fuse box | 44A |
| F1/6 | Right instrument panel fuse box | 52A |

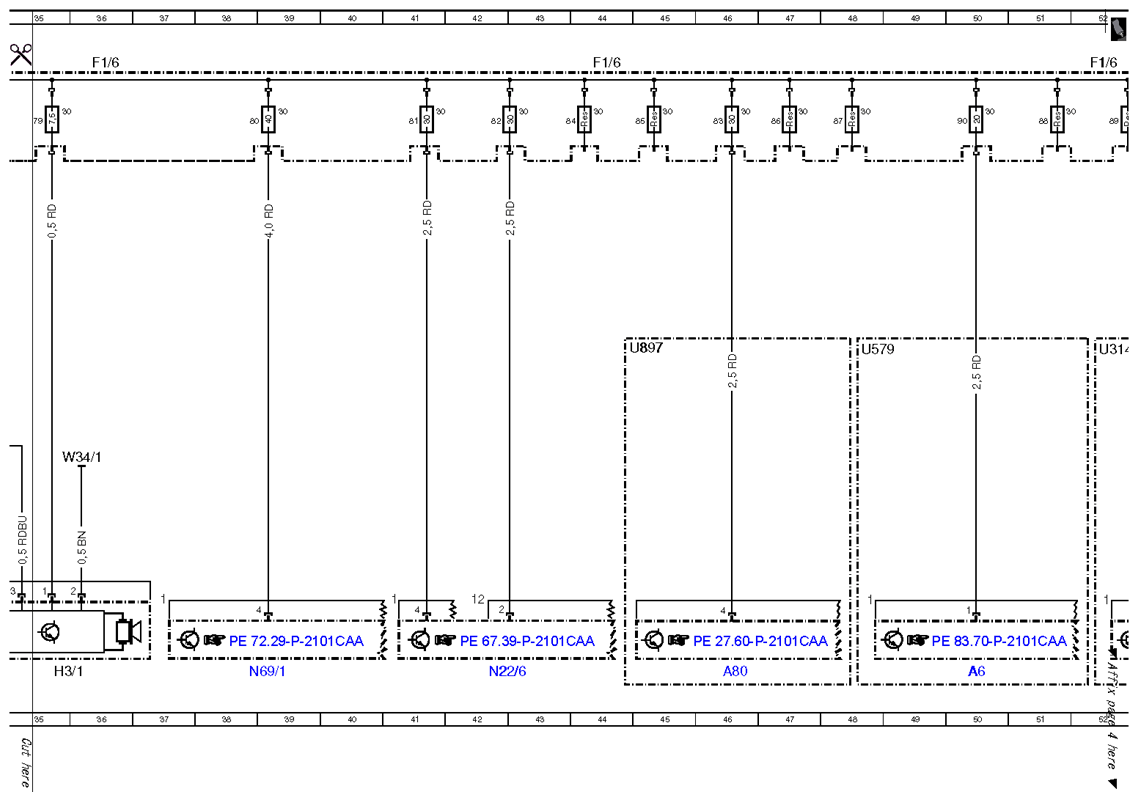

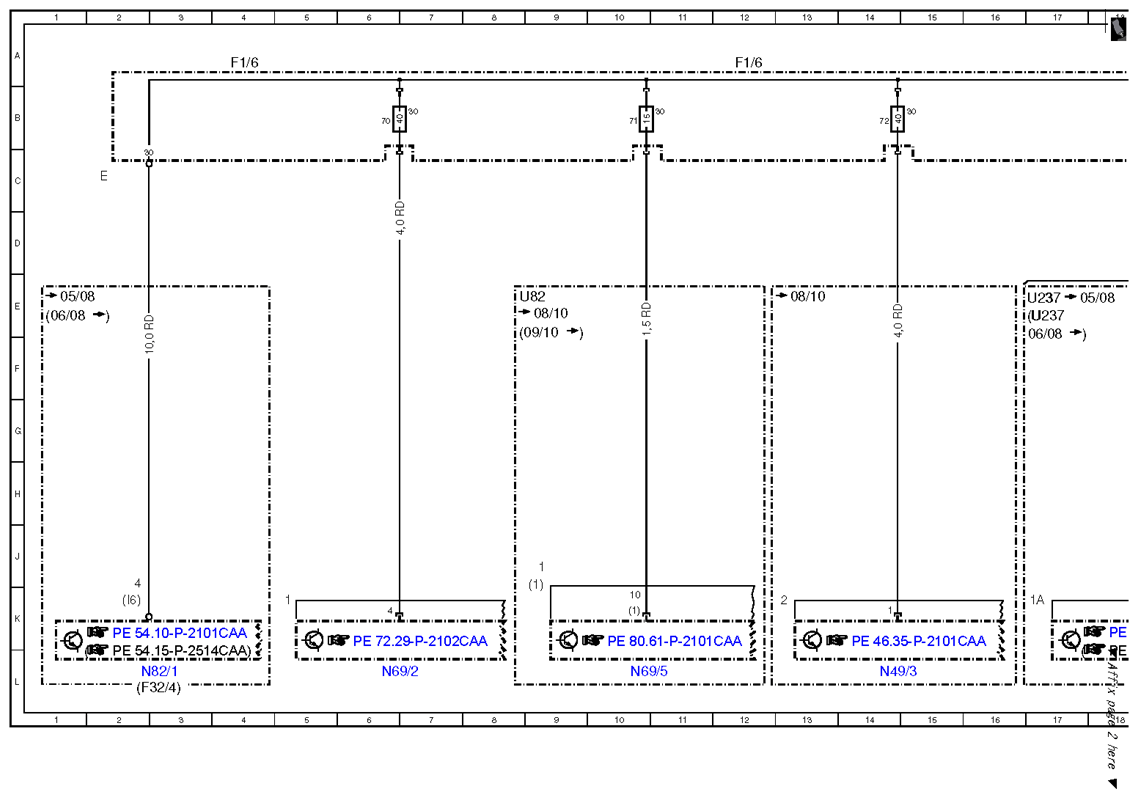

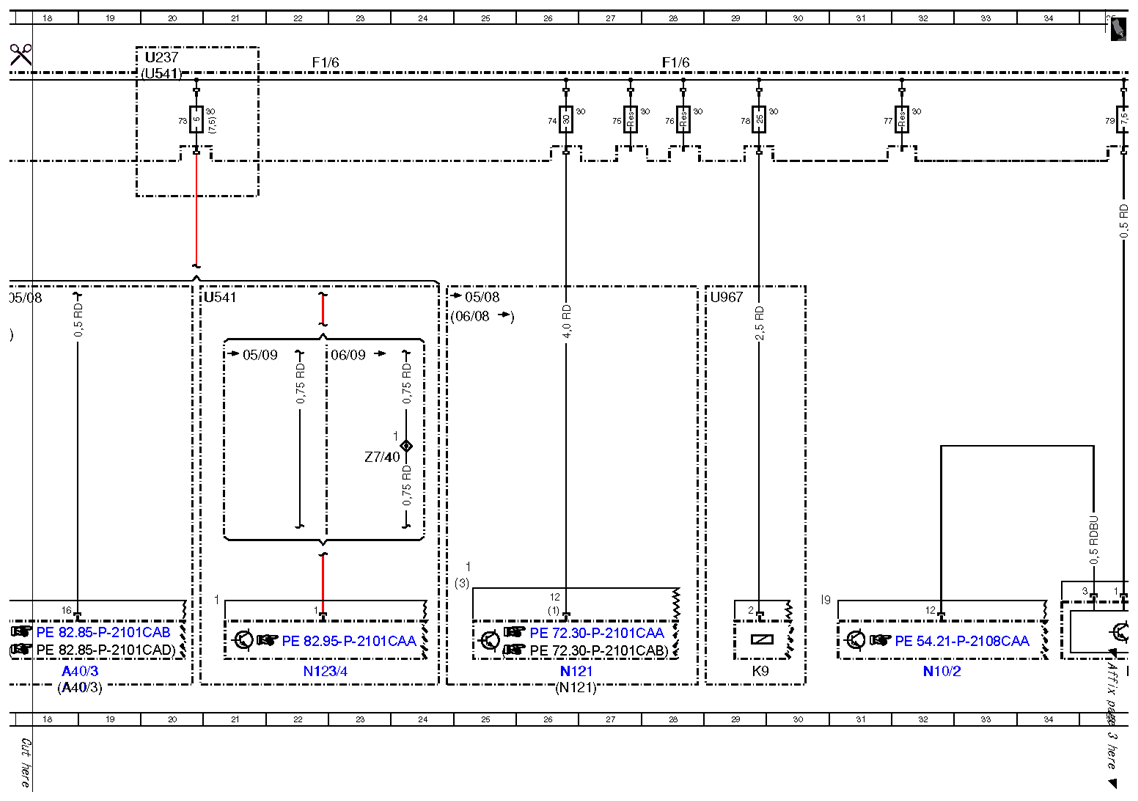

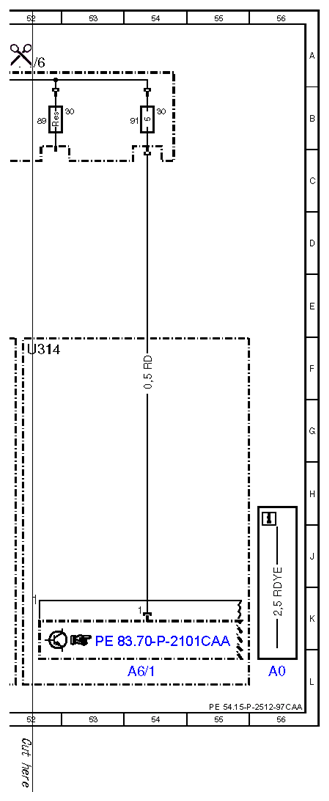

| F1/6f70 | Fuse 70 | 6B |
| F1/6f71 | Fuse 71 | 10B |
| F1/6f72 | Fuse 72 | 14B |
| F1/6f73 | Fuse 73 | 20B |
| F1/6f74 | Fuse 74 | 26B |
| F1/6f75 | Fuse 75 | 27B |
| F1/6f76 | Fuse 76 | 28B |
| F1/6f77 | Fuse 77 | 31B |
| F1/6f78 | Fuse 78 | 29B |
| F1/6f79 | Fuse 79 | 35B |
| F1/6f80 | Fuse 80 | 38B |
| F1/6f81 | Fuse 81 | 41B |
| F1/6f82 | Fuse 82 | 42B |
| F1/6f83 | Fuse 83 | 46B |
| F1/6f84 | Fuse 84 | 43B |
| F1/6f85 | Fuse 85 | 45B |
| F1/6f86 | Fuse 86 | 47B |
| F1/6f87 | Fuse 87 | 48B |
| F1/6f88 | Fuse 88 | 51B |
| F1/6f89 | Fuse 89 | 52B |
| F1/6f90 | Fuse 90 | 50B |
| F1/6f91 | Fuse 91 | 54B |
| F32/4 | Interior prefuse box | 2L |
| H3/1 | Alarm signal siren | 35L |
| K9 | Additional fan relay | 29L |
| N10/2 | Rear SAM control unit with fuse and relay module | 32L |
| N121 | TLC [HDS] control unit | 26L |
| N121 | TLC [HDS] control unit | 26L |
| N123/4 | Emergency call system control unit | 22L |
| N22/6 | Rear control unit | 42L |
| N49/3 | Electromechanical steering system control unit | 14L |
| N69/1 | Left door control unit | 39L |
| N69/2 | Right door control unit | 6L |
| N69/5 | KEYLESS-GO control unit | 10L |
| N82/1 | Vehicle power supply control unit | 3L |
| U237 | Valid for COMAND operating unit, {{Japan}} version | 17E |
| U237 | Valid for COMAND operating unit, {{Japan}} version | 17E |
| U237 | Valid for COMAND operating unit, {{Japan}} version | 20A |
| U314 | Valid for STH radio remote control | 52F |
| U541 | Valid for TELE AID emergency call system | 21E |
| U541 | Valid for TELE AID emergency call system | 19A |
| U579 | Valid for stationary heater (STH) | 48F |
| U82 | Valid for KEYLESS GO | 8E |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 44F |
| U967 | Valid for engine 275.982 | 29E |
| W34/1 | Ground (electronics - left footwell) | 36G |
| Z7/40 | Tml. 30 connector sleeve | 23G |
