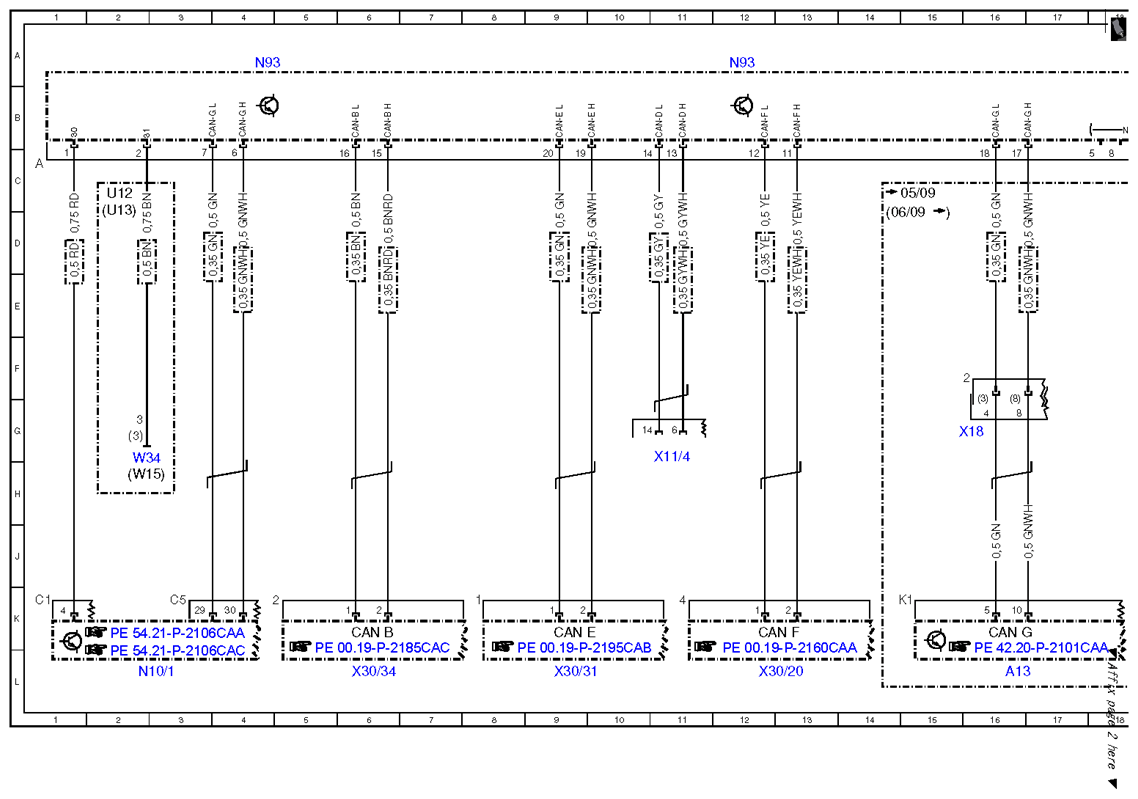

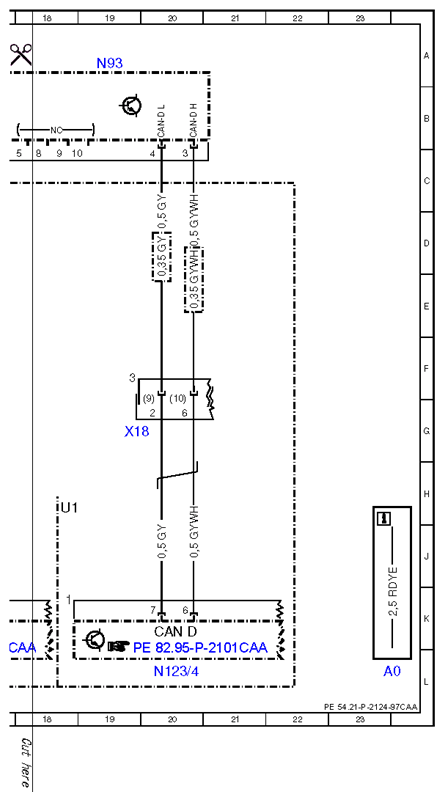

Wiring diagram of central gateway control unit - PE54.21-P-2124-97CAA
MODEL 216.3 Control unit N93
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A13 | Electric parking brake control unit | 16L |
| CAN B | Interior CAN | 6K |
| CAN D | Diagnostic CAN | 20K |
| CAN E | Chassis CAN | 9K |
| CAN F | Central CAN | 12K |
| CAN G | Front end CAN | 16K |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N123/4 | Emergency call system control unit | 20L |
| N93 | Central gateway control unit | 4A |
| N93 | Central gateway control unit | 12A |
| N93 | Central gateway control unit | 19A |
| U1 | Valid for {{USA}} | 18H |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| W15 | Power ground (electronics) | 2H |
| W34 | Ground (left footwell) | 2H |
| X11/4 | Data link connector | 11G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 16G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 19G |
| X30/20 | Central CAN voltage distributor connector | 12L |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 9L |
| X30/34 | Interior CAN/cockpit voltage distributor connector | 6L |
