Clean slide rails and sliding blocks for tilting/sliding roof - AP77.20-P-7731SX

MODEL 216, 221.0 with CODE 414 (Sliding sunroof)

MODEL 221.1 without CODE 413 (Automatic panoramic sliding sunroof)

Shown on model 221

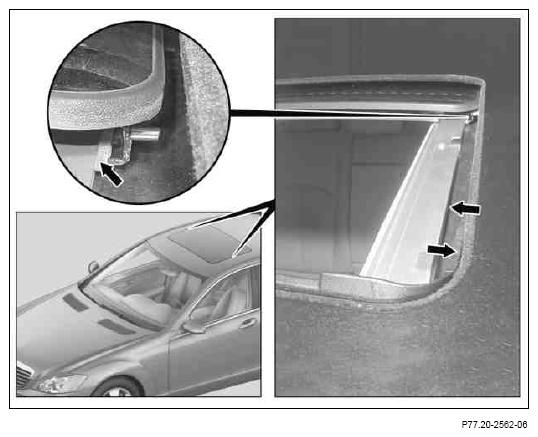

Fig 1: Locating Roof Blocks And Rails - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Clean
1	Fully open sliding roof
2	Clean slide rails and sliding blocks (arrows) with rag
3	Coat sliding rails and sliding blocks (arrows) thinly with grease	Synthetic grease, sliding roof 500 g, DBL 6827.60	*BR00.45-Z-1004-06A
4	Perform function test of sliding roof
5	Close sliding roof
