Retrofit reversing camera - AN54.65-P-0030CW

MODEL 204.0## (except 204.077) 1# as of 3/1/11, 204.2## (except 204.277) 1# as of 3/1/11 as of model year 2012 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version/additional parts) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.3## (except 204.377) 1# with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

Shown on model 204.0

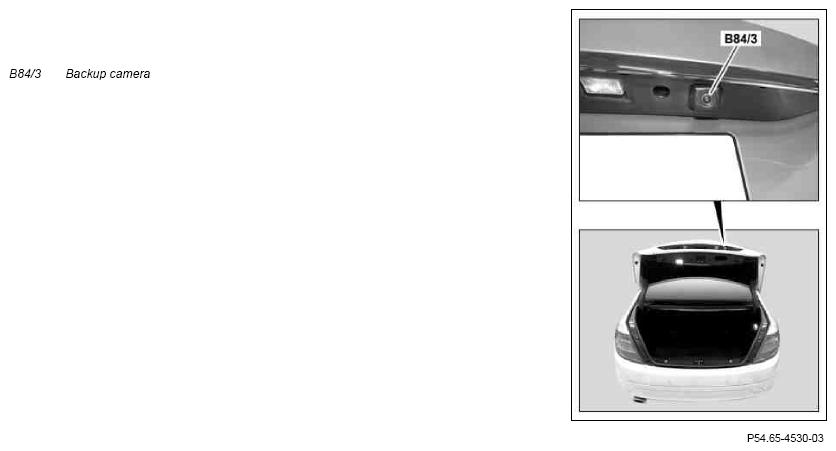

Fig 1: Identifying Retrofit Reversing Camera - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

Shown on model 204.2

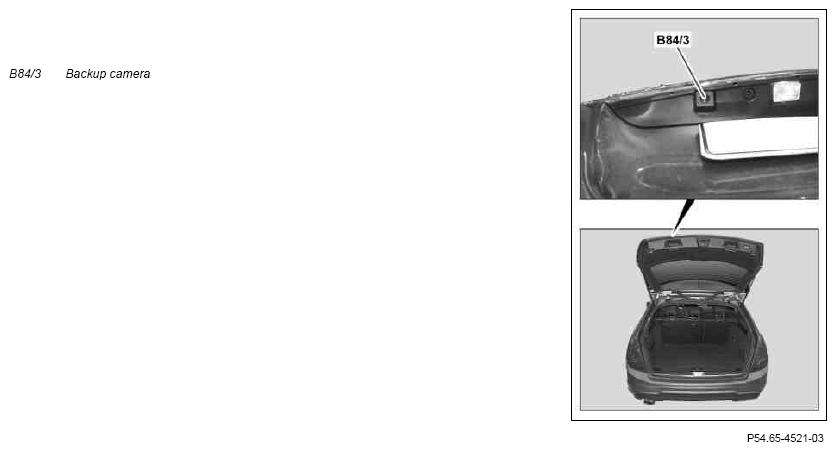

Fig 2: Identifying Retrofit Reversing Camera - Shown On Model 204.2

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Adjust driver seat to the rear
2	Remove left front and rear door sill
3	Loosen left front edge guard in the area of the A-pillar cover and in the area of the door sill
4	Remove left A-pillar cover in footwell
5	Remove cover below left of instrument panel
6	Remove left front floor covering in footwell
7	Release COMAND controller unit
			AR82.60-P-7502CW
		Do not detach wiring harnesses.
8.1	Remove left and right trunk lining	Model 204.0/3
			AR68.30-P-4600CW
8.2	Remove left and right-hand cargo area lining	Model 204.2
			AR68.30-P-1180CX
9.1	Remove handle strip from trunk lid	Model 204.0/3 Remove the trunk lid cover completely. The trunk lid handle strip is no longer required.
9.2	Remove handle strip for liftgate	Model 204.2 Remove trunk lid trim assembly. The trunk lid handle strip is no longer required.
10	Remove seat cushion in the rear
		MODEL 204.3	AR91.12-P-1020EC
		Model 204.0/2	AR91.12-P-1020CW
11	Fold down backrest in rear	Model 204.2/3
12	Remove paneling next to left rear seat
13	Remove headliner	Model 204.2
			AR68.30-P-4300CX
14	Disconnect the rear SAM control unit with fuse and relay module in the trunk and place to one side
			AR54.21-P-1258CW
	Install
15	Retrofit reversing camera power supply module	Model 204.0/3	AN54.65-P-0030-06CW
		Model 204.2	AN54.65-P-0030-06CX
16	Retrofit wiring harness and reversing camera (B84/3)	Model 204.0/3	AN54.65-P-0030-03CX
		Model 204.2	AN54.65-P-0030-03CW
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
17	Install remaining parts
18	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 218 (Reversing camera)
19	Document retrofitted equipment in VeDoc	Attach a note "Reversing camera retrofitted as per AN54.65-P-0030CW " under field organization texts to KG54.
20	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
21	Perform variant coding with XENTRY using the software calibration number (SCN)	The following control units must be coded with XENTRY using SCN: "Central gateway (CGW)" "Front SAM control unit with fuse and relay module" "COMAND controller unit"
22	Disconnect diagnostic system
	Check
23	Perform function test

Fig 3: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
