Seat belt buckle switch, component description - GF91.60-P-4045CW
MODEL 204.0/2 up to Model Year 08

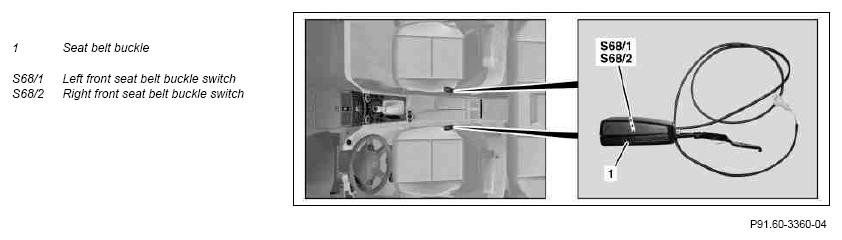

Illustrated on model 204.0
Location
The seat belt buckle switches are integrated in the particular seat belt buckle.
Task
The seat belt buckle switches monitor the insertion of the belt latch into the seat belt buckle.
The seat belt buckle switches are read in directly by the supplemental restraint system control unit (N2/10).
The data is also used to realize the seat belt reminder warning by the instrument cluster (A1).
