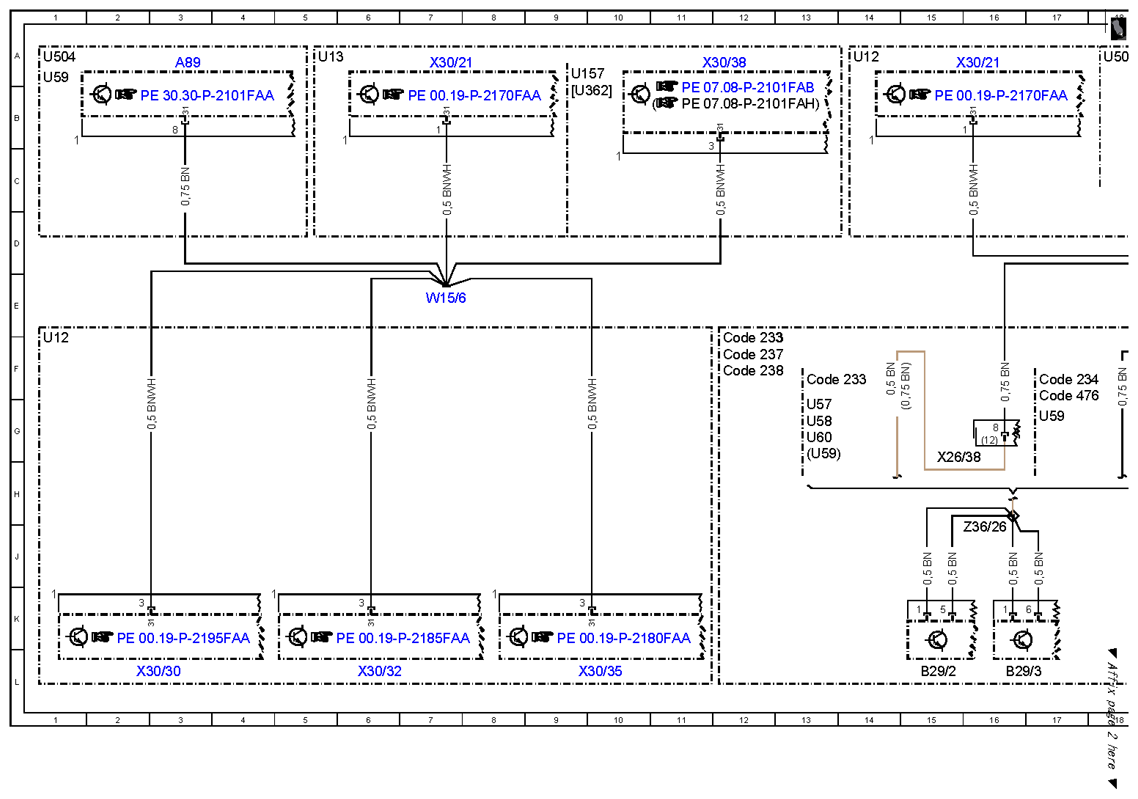

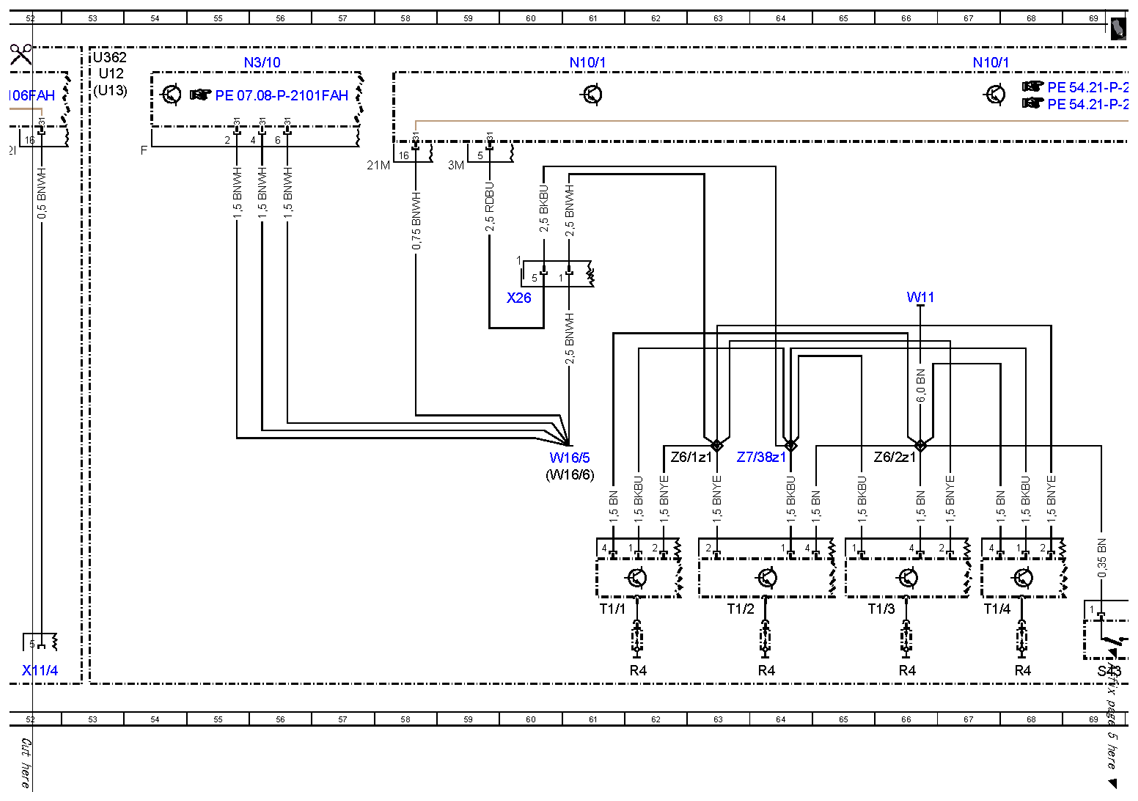

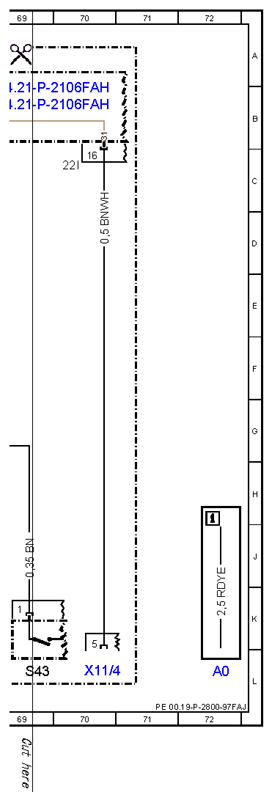

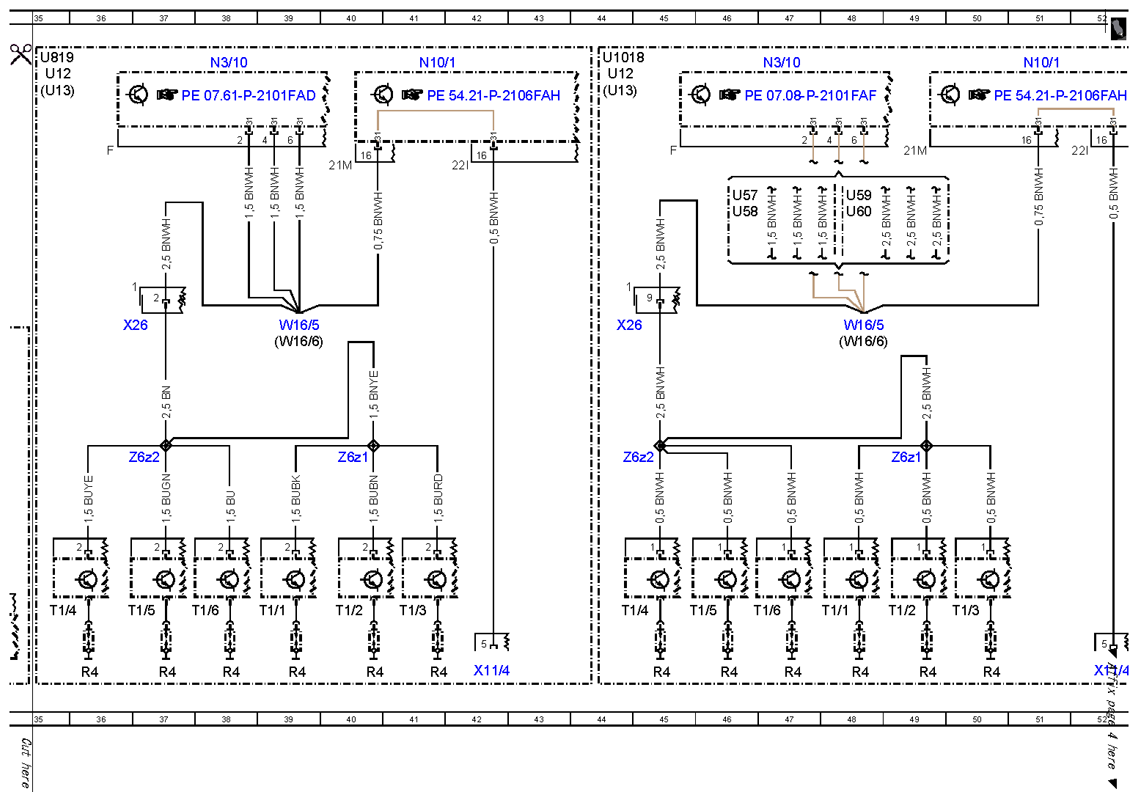

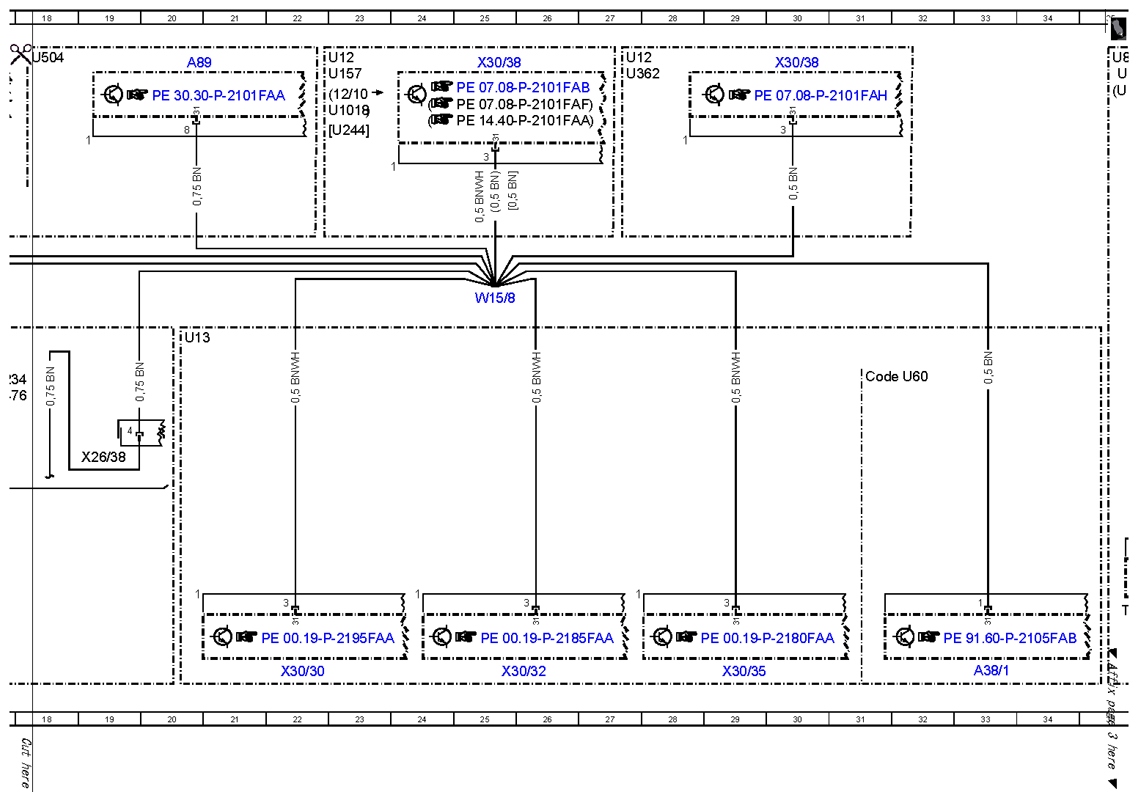

| A0 |
Color code key |
72L |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
33L |
| A89 |
DISTRONIC electric controller unit |
20A |
| A89 |
DISTRONIC electric controller unit |
3A |
| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
15L |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
16L |
| Code 233 |
DISTRONIC PLUS |
12F |
| Code 233 |
DISTRONIC PLUS |
13F |
| Code 234 |
Blind spot assist |
17F |
| Code 237 |
Active Blind Spot Assist |
12F |
| Code 238 |
Active Lane Keeping Assist |
12F |
| Code 476 |
Automatic lane detection |
17G |
| Code U60 |
Active engine hood |
31F |
| N10/1 |
Front SAM control unit with fuse and relay module |
41A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1 |
Front SAM control unit with fuse and relay module |
67A |
| N10/1 |
Front SAM control unit with fuse and relay module |
51A |
| N3/10 |
ME-SFI [ME] control unit |
47A |
| N3/10 |
ME-SFI [ME] control unit |
38A |
| N3/10 |
ME-SFI [ME] control unit |
56A |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
45L |
| R4 |
Spark plugs |
47L |
| R4 |
Spark plugs |
48L |
| R4 |
Spark plugs |
49L |
| R4 |
Spark plugs |
50L |
| R4 |
Spark plugs |
36L |
| R4 |
Spark plugs |
38L |
| R4 |
Spark plugs |
37L |
| R4 |
Spark plugs |
39L |
| R4 |
Spark plugs |
40L |
| R4 |
Spark plugs |
41L |
| R4 |
Spark plugs |
62L |
| R4 |
Spark plugs |
64L |
| R4 |
Spark plugs |
66L |
| R4 |
Spark plugs |
68L |
| S43 |
Oil level check switch |
69L |
| T1/1 |
Cylinder 1 ignition coil |
48K |
| T1/1 |
Cylinder 1 ignition coil |
39K |
| T1/1 |
Cylinder 1 ignition coil |
61K |
| T1/2 |
Cylinder 2 ignition coil |
49K |
| T1/2 |
Cylinder 2 ignition coil |
40K |
| T1/2 |
Cylinder 2 ignition coil |
63K |
| T1/3 |
Cylinder 3 ignition coil |
50K |
| T1/3 |
Cylinder 3 ignition coil |
41K |
| T1/3 |
Cylinder 3 ignition coil |
65K |
| T1/4 |
Cylinder 4 ignition coil |
44K |
| T1/4 |
Cylinder 4 ignition coil |
35K |
| T1/4 |
Cylinder 4 ignition coil |
67K |
| T1/5 |
Cylinder 5 ignition coil |
46K |
| T1/5 |
Cylinder 5 ignition coil |
37K |
| T1/6 |
Cylinder 6 ignition coil |
47K |
| T1/6 |
Cylinder 6 ignition coil |
38K |
| U1018 |
Valid for gasoline engine 276 |
23B |
| U1018 |
Valid for gasoline engine 276 |
44A |
| U12 |
Valid for left-hand drive vehicles |
1F |
| U12 |
Valid for left-hand drive vehicles |
14A |
| U12 |
Valid for left-hand drive vehicles |
23A |
| U12 |
Valid for left-hand drive vehicles |
44A |
| U12 |
Valid for left-hand drive vehicles |
35A |
| U12 |
Valid for left-hand drive vehicles |
53A |
| U12 |
Valid for left-hand drive vehicles |
27A |
| U13 |
Valid for right-hand drive vehicles |
5A |
| U13 |
Valid for right-hand drive vehicles |
20F |
| U13 |
Valid for right-hand drive vehicles |
44B |
| U13 |
Valid for right-hand drive vehicles |
35B |
| U13 |
Valid for right-hand drive vehicles |
53B |
| U157 |
Valid for combustion engine 272 DE |
9A |
| U157 |
Valid for combustion engine 272 DE |
23A |
| U244 |
Valid for BlueTEC |
23B |
| U362 |
Valid for gasoline engine 274 |
53A |
| U362 |
Valid for gasoline engine 274 |
27A |
| U362 |
Valid for gasoline engine 274 |
9B |
| U504 |
Valid for DISTRONIC |
18A |
| U504 |
Valid for DISTRONIC |
1A |
| U57 |
Valid for model 204.2 |
13G |
| U57 |
Valid for model 204.2 |
46C |
| U58 |
Valid for model 204.0 |
13G |
| U58 |
Valid for model 204.0 |
46D |
| U59 |
Valid for model 204.9 |
1A |
| U59 |
Valid for model 204.9 |
13G |
| U59 |
Valid for model 204.9 |
17G |
| U59 |
Valid for model 204.9 |
48C |
| U60 |
Valid for model 204.3 |
13G |
| U60 |
Valid for model 204.3 |
48D |
| U819 |
Valid for gasoline engine 272 |
35A |
| W11 |
Combustion engine ground point |
66E |
| W15/6 |
Ground point (left front footwell CAN) |
7E |
| W15/8 |
Ground point (right front footwell CAN) |
25E |
| W16/5 |
Left major assembly compartment electronics ground point |
48E |
| W16/5 |
Left major assembly compartment electronics ground point |
39E |
| W16/5 |
Left major assembly compartment electronics ground point |
60H |
| W16/6 |
Right major assembly compartment ground point |
48F |
| W16/6 |
Right major assembly compartment ground point |
39F |
| W16/6 |
Right major assembly compartment ground point |
60H |
| X11/4 |
Diagnostic connector |
52L |
| X11/4 |
Diagnostic connector |
42L |
| X11/4 |
Diagnostic connector |
70L |
| X26 |
Interior and engine wiring harness electrical connector |
44E |
| X26 |
Interior and engine wiring harness electrical connector |
37E |
| X26 |
Interior and engine wiring harness electrical connector |
60E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
15H |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
19H |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
7A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
16A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
2L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
22L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
6L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
25L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
10L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
29L |
| X30/38 |
Potential distributor electrical connector (CAN I) |
12A |
| X30/38 |
Potential distributor electrical connector (CAN I) |
25A |
| X30/38 |
Potential distributor electrical connector (CAN I) |
30A |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
16J |
| Z6/1z1 |
Ground line connector sleeve |
63G |
| Z6/2z1 |
Ground line connector sleeve |
66G |
| Z6z1 |
Circuit 31 connector sleeve |
49G |
| Z6z1 |
Circuit 31 connector sleeve |
40G |
| Z6z2 |
Circuit 31 connector sleeve |
45G |
| Z6z2 |
Circuit 31 connector sleeve |
37G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
64G |
