Location and assignment of ground points, engine compartment, left - GF00.19-P-2000-01FAA

Model 204

MODEL 204

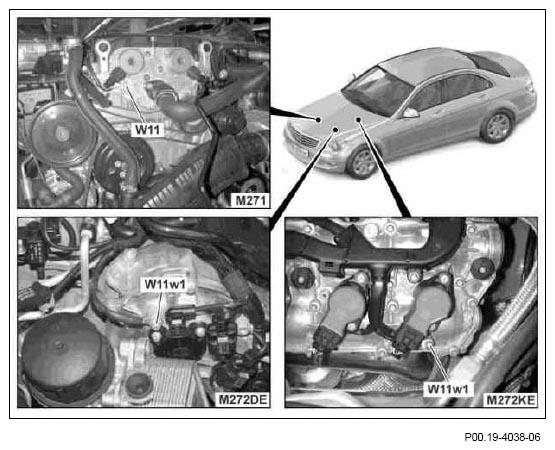

Fig 1: Overview Of Ground Points, Engine Left Compartment (1 Of 3)

Courtesy of MERCEDES-BENZ USA

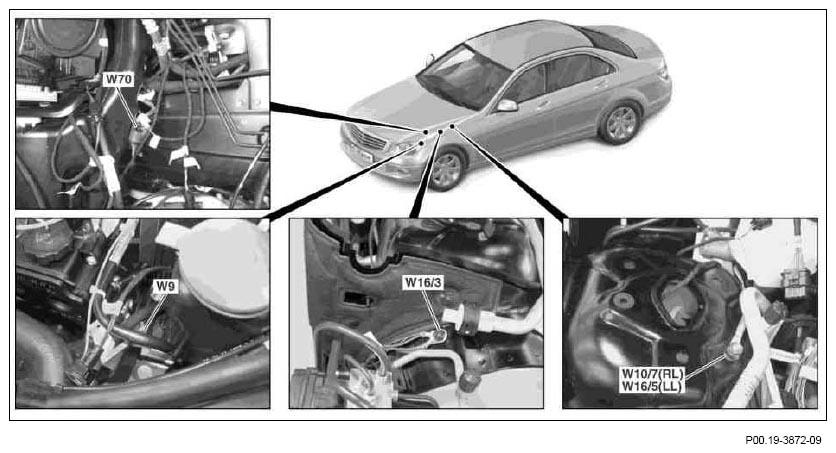

Fig 2: Overview Of Ground Points, Engine Left Compartment (2 Of 3)

Courtesy of MERCEDES-BENZ USA

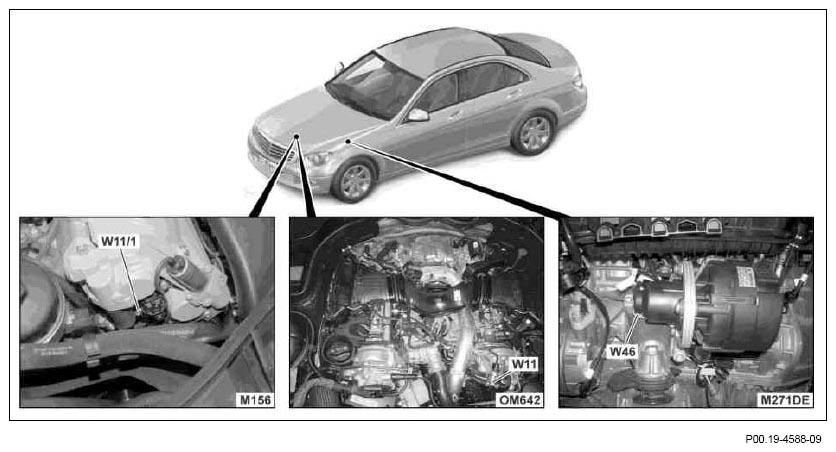

Fig 3: Overview Of Ground Points, Engine Left Compartment (3 Of 3)

Courtesy of MERCEDES-BENZ USA
