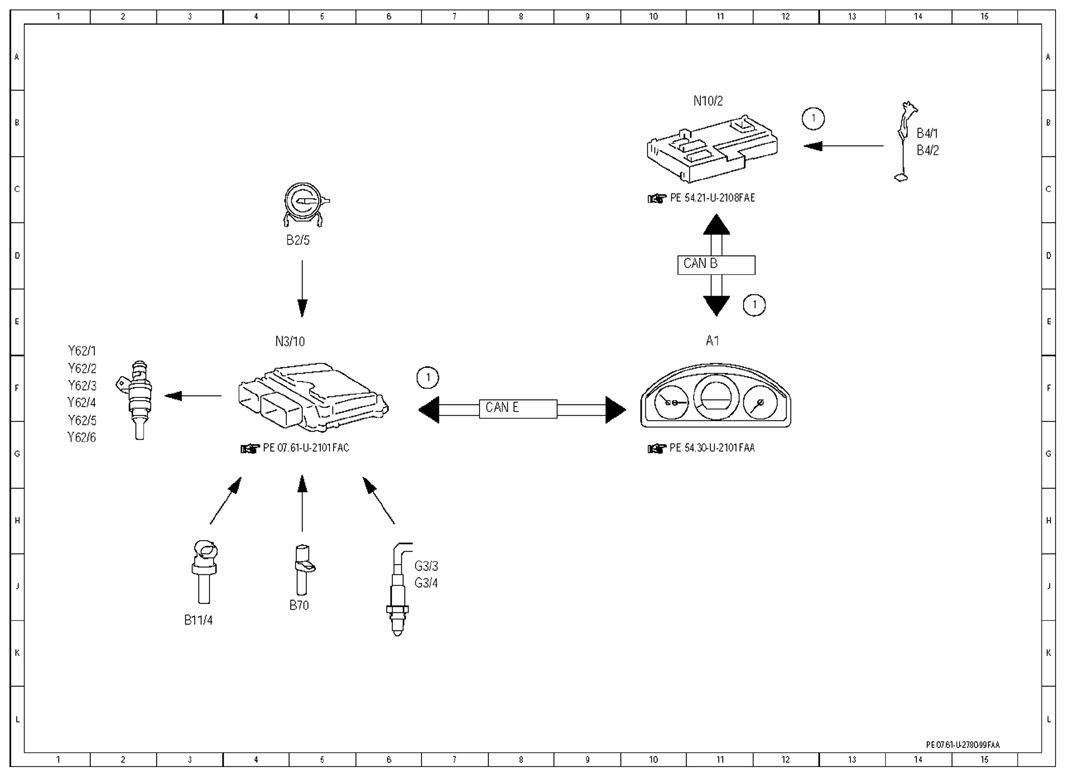

| 1 |
Fuel level, signal |
7 F |
| 1 |
Fuel level, signal |
12 E |
| 1 |
Fuel level, signal |
13 B |
| A1 |
Instrument cluster |
11 E |
| B11/4 |
Coolant temperature sensor |
3 J |
| B2/5 |
Hot film MAF sensor |
5 D |
| B4/1 |
Left fuel level indicator sensor |
14 B |
| B4/2 |
Right fuel level indicator sensor |
14 B |
| B70 |
Crankshaft Hall sensor |
5 J |
| CAN B |
Interior CAN |
11 D |
| CAN E |
Chassis CAN |
8 F |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
7 J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
7 J |
| N10/2 |
Rear SAM control module with fuse and relay module |
11 A |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| Y62/1 |
Cylinder 1 injection valve |
1 E |
| Y62/2 |
Cylinder 2 injection valve |
1 F |
| Y62/3 |
Cylinder 3 injection valve |
1 F |
| Y62/4 |
Cylinder 4 injection valve |
1 F |
| Y62/5 |
Cylinder 5 injection valve |
1 F |
| Y62/6 |
Cylinder 6 injection valve |
1 G |
