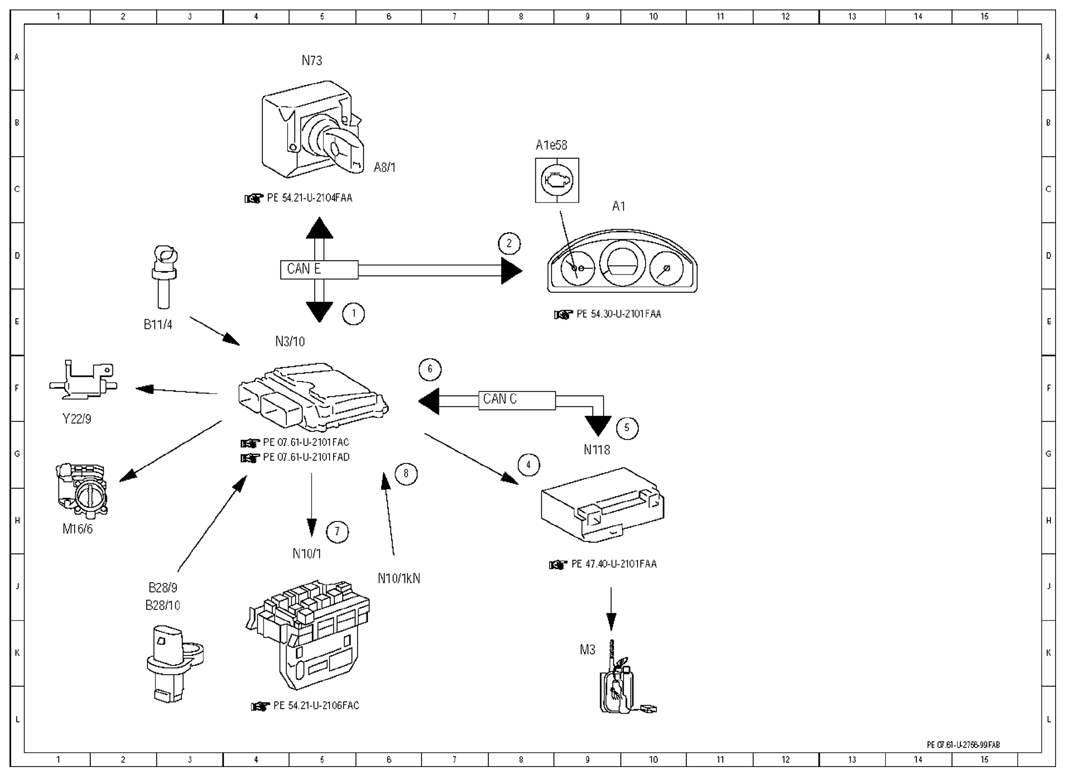

| 1 |
Circuit 50, status |
6 E |
| 2 |
Engine diagnosis indicator lamp, actuation |
8 D |
| 4 |
Fuel pump, request ON |
8 G |
| 5 |
Fuel pump, specified pressure request |
10 F |
| 6 |
Fuel pump control unit, status |
7 F |
| 7 |
Engine control, status ACTIVE |
5 H |
| 8 |
Circuit 87, status |
6 G |
| A1 |
Instrument cluster |
10 C |
| A1e58 |
Engine diagnosis malfunction indicator lamp |
8 B |
| A8/1 |
Transmitter key |
6 C |
| B11/4 |
Coolant temperature sensor |
2 E |
| B28/10 |
Right intake manifold tumble flap position sensor |
3 J |
| B28/9 |
Left intake manifold tumble flap position sensor |
3 J |
| CAN C |
Drive train CAN |
8 F |
| CAN E |
Chassis CAN |
5 D |
| M16/6 |
Throttle valve actuator |
1 H |
| M3 |
Fuel pump (FP) |
9 K |
| N10/1 |
Front SAM control module with fuse and relay module |
5 H |
| N10/1kN |
Engine circuit 87 relay |
6 J |
| N118 |
Fuel pump control module |
9 G |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| N73 |
Electronic ignition switch control unit |
5 A |
| Y22/9 |
Intake manifold tumble flap switchover valve |
1 F |
