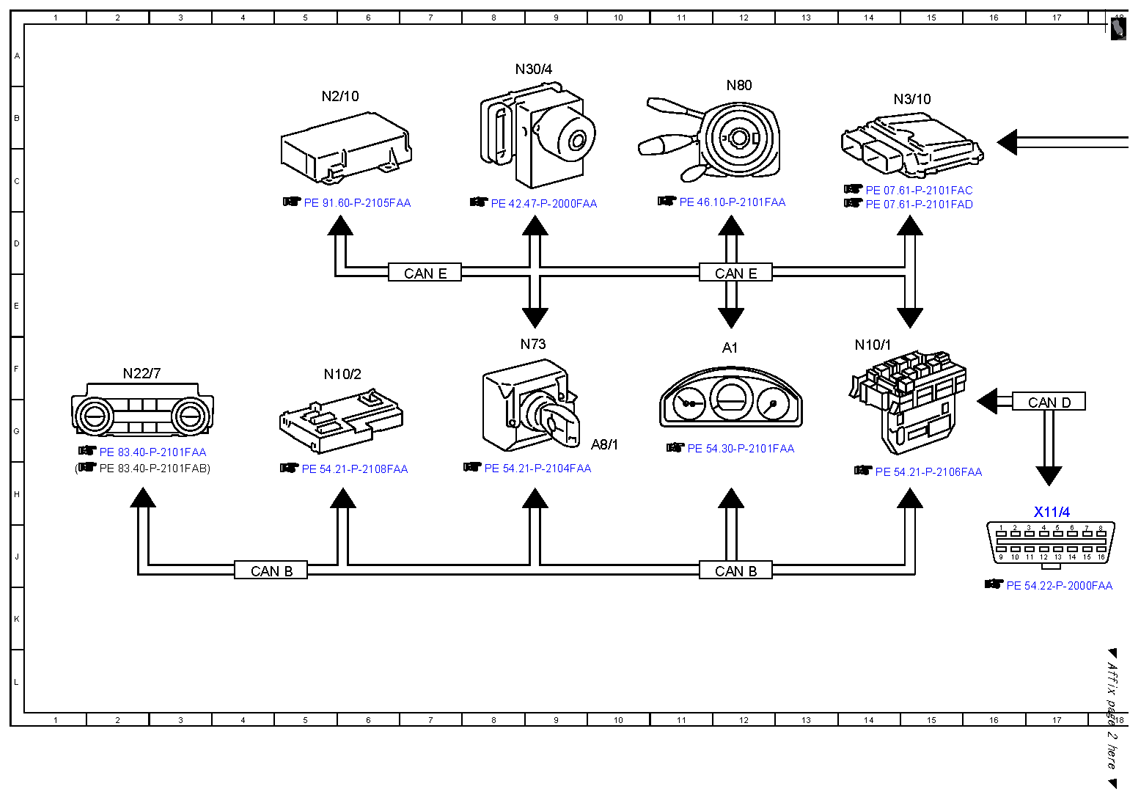

| A1 |
Instrument cluster |
12F |
| A8/1 |
Transmitter key |
10G |
| CAN B |
Interior CAN |
4J |
| CAN B |
Interior CAN |
12J |

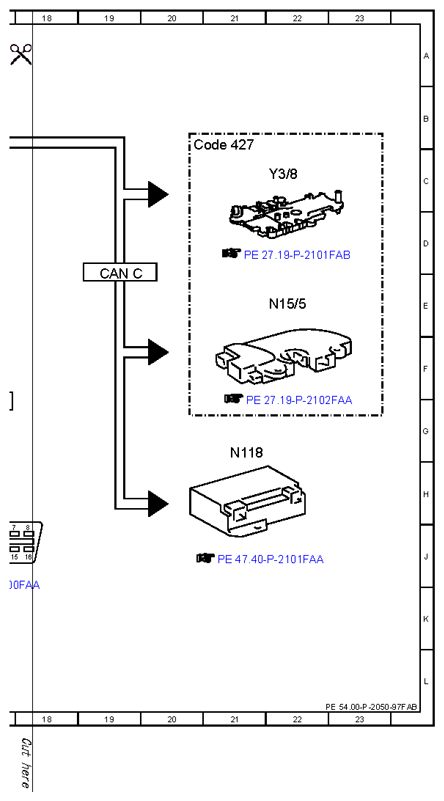

| CAN C |
Drive train CAN |
19E |
| CAN D |
Diagnostic CAN |
17G |
| CAN E |
Chassis CAN |
7D |
| CAN E |
Chassis CAN |
12D |
| Code 427 |
7-speed automatic transmission |
22D |
| N10/1 |
Front SAM control unit with fuse and relay module |
14F |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5F |
| N118 |
Fuel pump control unit |
21G |
| N15/5 |
Electronic selector lever module control unit |
22E |
| N2/10 |
Supplemental restraint system control unit |
5B |
| N22/7 |
Automatic air conditioning control and operating unit |
2F |
| N3/10 |
ME-SFI [ME] control unit |
14B |
| N30/4 |
Electronic Stability Program control unit |
8A |
| N73 |
Electronic ignition switch control unit |
8F |
| N80 |
Steering column module control unit |
12B |
| X11/4 |
Diagnostic connector |
17H |
| Y3/8 |
Fully integrated transmission control control unit |
22C |
