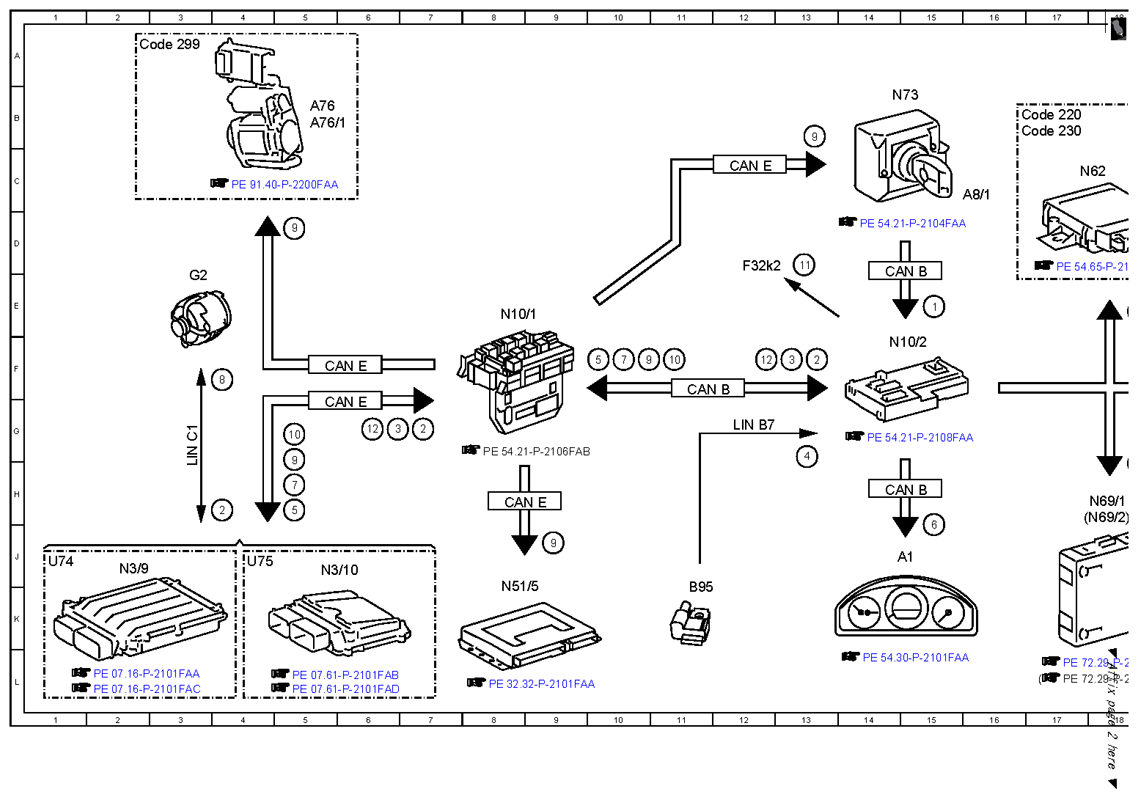

| 1 |
Circuit 15, status |
15E |
| 10 |
Idle speed increase, request |
5G |
| 10 |
Idle speed increase, request |
11F |
| 11 |
Quiescent current cutout relay, actuation |
13D |
| 12 |
Alternator operating rate, signal |
12F |
| 12 |
Alternator operating rate, signal |
6G |
| 2 |
Circuit 61, status |
4H |
| 2 |
Circuit 61, status |
13F |
| 2 |
Circuit 61, status |
7G |
| 3 |
Engine speed, signal |
13F |
| 3 |
Engine speed, signal |
7G |
| 4 |
Battery sensor, signal |
13G |
| 5 |
On-board electrical system limp-home mode, signal |
5H |
| 5 |
On-board electrical system limp-home mode, signal |
10F |
| 6 |
Instrument cluster, message |
15J |
| 7 |
Alternator, request |
5H |
| 7 |
Alternator, request |
10F |
| 8 |
Alternator, actuation |
4F |
| 9 |
Consumer shutoff, request |
5H |
| 9 |
Consumer shutoff, request |
9J |
| 9 |
Consumer shutoff, request |
10F |
| 9 |
Consumer shutoff, request |
18H |
| 9 |
Consumer shutoff, request |
28H |
| 9 |
Consumer shutoff, request |
24E |
| 9 |
Consumer shutoff, request |
13B |
| 9 |
Consumer shutoff, request |
18E |
| 9 |
Consumer shutoff, request |
30E |
| 9 |
Consumer shutoff, request |
30H |
| 9 |
Consumer shutoff, request |
22H |
| 9 |
Consumer shutoff, request |
5D |

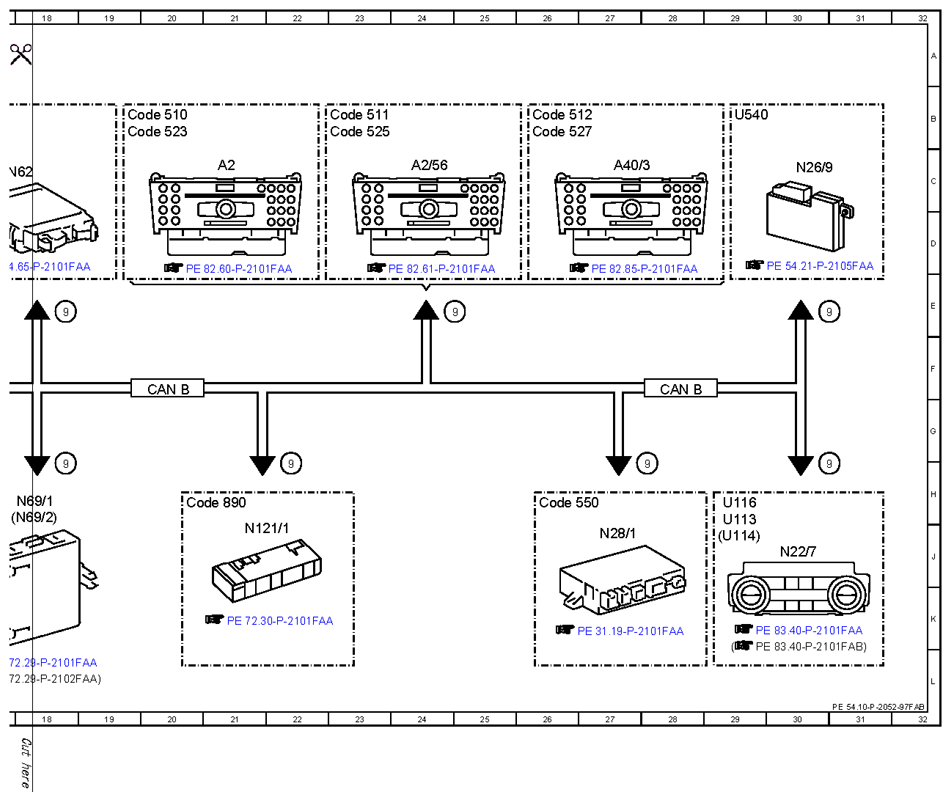

| A1 |
Instrument cluster |
14J |
| A2 |
Radio |
21C |
| A2/56 |
Radio with auto pilot system |
24C |
| A40/3 |
COMAND control unit |
27C |
| A76 |
Left front reversible emergency tensioning retractor |
5B |
| A76/1 |
Right front reversible emergency tensioning retractor |
5B |
| A8/1 |
Transmitter key |
16C |
| B95 |
Battery sensor |
11K |
| CAN B |
Interior CAN |
11F |
| CAN B |
Interior CAN |
14D |
| CAN B |
Interior CAN |
14H |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
28F |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
6G |
| CAN E |
Chassis CAN |
9H |
| CAN E |
Chassis CAN |
12C |
| Code 220 |
PARKTRONIC (PTS) |
18C |
| Code 230 |
Exclusive parking assist |
18C |
| Code 299 |
PRE-SAFE® |
4B |
| Code 510 |
Audio 20 with CD changer |
21C |
| Code 511 |
Audio 50 APS incl. DVD changer |
24C |
| Code 512 |
COMAND APS with DVD changer |
27C |
| Code 523 |
Audio 20 radio |
21C |
| Code 525 |
Audio 50 APS radio (CD) |
24C |
| Code 527 |
COMAND APS |
27C |
| Code 550 |
Trailer hitch |
27J |
| Code 890 |
Tailgate control |
22K |
| F32k2 |
Quiescent current cutout relay |
12D |
| G2 |
Alternator |
3E |
| LIN B7 |
On-board electrical system LIN |
12G |
| LIN C1 |
Drive train LIN |
4G |
| N10/1 |
Front SAM control unit with fuse and relay module |
8E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14F |
| N121/1 |
Tailgate control control unit |
21J |
| N22/7 |
Automatic air conditioning control and operating unit |
30J |
| N26/9 |
Special-purpose vehicle multifunction control unit |
30C |
| N28/1 |
Trailer recognition control unit |
27J |
| N3/10 |
ME-SFI [ME] control unit |
5J |
| N3/9 |
CDI control unit |
2J |
| N51/5 |
Adaptive damping system control unit |
8K |
| N62 |
PARKTRONIC control unit |
17C |
| N69/1 |
Left front door control unit |
18H |
| N69/2 |
Right front door control unit |
18H |
| N73 |
Electronic ignition switch control unit |
14B |
| U113 |
Valid for 2-zone THERMATIC |
29H |
| U114 |
Valid for 3-zone THERMOTRONIC |
29J |
| U116 |
Valid for 1-zone air conditioning |
29H |
| U540 |
Valid for special-purpose vehicles |
29B |
| U74 |
Valid for diesel engines |
1J |
| U75 |
Valid for gasoline engines |
4J |
