Remove/install front prefuse box - AR54.15-P-1330CW

MODEL 204.0/2/3/9

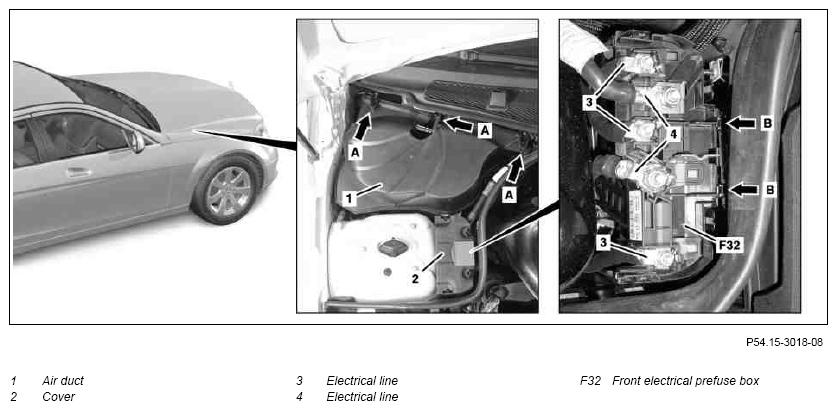

Fig 1: Identifying Front Pre-Fuse Box Remove/Install Components - Shown On Model 204.0
G09983724Courtesy of MERCEDES-BENZ USA

Shown on model 204.0

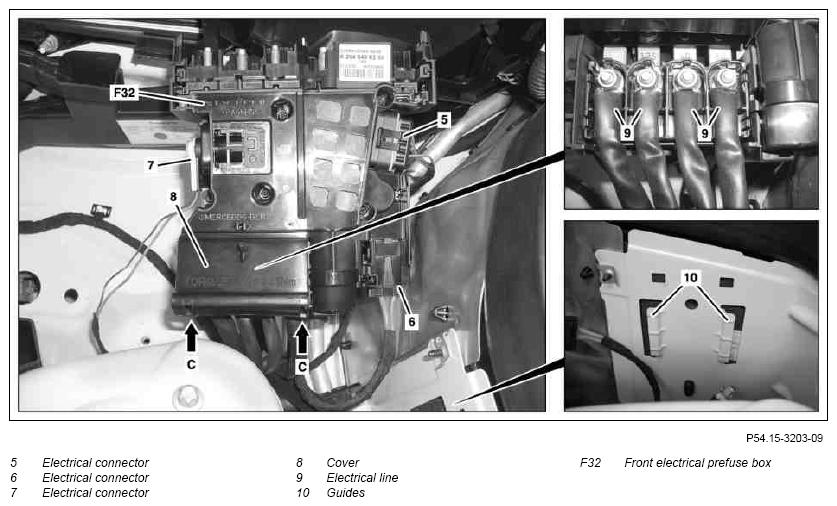

Fig 2: Identifying Front Pre-Fuse Box Remove/Install Components
G09983725Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

10.2.12 Torque for fuse box recorded Operation step 5 and 6
REMOVINGINSTALLING Remove/install
1.1 Disconnect ground line for on-board electrical system battery (G1) Model 204.0/2 with engine 642, 646 AR54.10-P-0003CW
1.2 Remove on-board electrical system battery Model 204.0/2 except engine 642, 646, model 204.3/9 AR54.10-P-0005CW
2 Remove battery frame from on-board electrical system battery Model 204.0/2/3 except engine 642, 646, model 204.3/9
TORQUE SPECIFICATION *BA54.10-P-1003-01F
3 Unclip air duct (1) (arrow A) and remove Model 204.0/2 with engine 642, 646
4 Unclip cover (2) from front electrical prefuse box (F32)
5 Remove electrical cables (3) IMPORTANT The number of electrical lines (3) differs depending on the equipment.
INSTALLATION IMPORTANT The electrical lines (3) are coded.

TORQUE SPECIFICATION *BA54.15-P-1001-01A
6 Remove electrical cables (4) INSTALLATION IMPORTANT The electrical lines (4) are coded.
TORQUE SPECIFICATION *BA54.15-P-1002-01A
7 Unclip front electrical prefuse box (F32) (arrows B), pull upwards out of the guides (10) and place to one side INSTALLATION IMPORTANT Pay attention to correct seating of the front electrical prefuse box (F32) in the guides (10).
8 Disconnect electrical connectors (5, 6, 7)
9 Unlock cover (8) on bottom of the front electrical prefuse box (F32) (arrows C) and open
10 Mark electrical lines (9)
11 Remove electrical cables (9) INSTALLATION IMPORTANT Do not swap electrical lines (9) or electrical components may be damaged.
12 Remove front electrical prefuse box (F32)
13 Install in the reverse order
BATTERY

Number Designation Model 204
BA54.10-P-1003-01F Bolt, battery frame to firewall/wheel arch/body Nm 20
FUSE AND RELAY BOX

Number Designation Model 204 with manual transmission, code 411 Model 204 with automatic transmission, code 423/427
BA54.15-P-1001-01A Nut connecting positive battery cable to prefuse box M6 Nm 8 8
BA54.15-P-1002-01A Nut connecting positive battery cable to prefuse box M8 Nm 16 16
