Retrofit pedal pads - AN29.10-P-0002NKB

MODEL 117.3 (except 117.352), 117.9 (except 117.952) except code 950 (amg sports package) except code p34 (exclusive package) except code p39 (amg exclusive package) except code p84 (sports model)

MODEL 156.9 (except 156.952) except code 950 (amg sports package) except code p19 (edition 1) except code p34 (exclusive package) except code p39 (amg exclusive package)

MODEL 176.0 except code 950 (amg sports package) except code p34 (exclusive package) except code p39 (amg exclusive package) except code p84 (sports model)

MODEL 242.8 except code 952 (sports package)

MODEL 246.2 except code 952 (sports package)

Shown on vehicle with TRANSMISSION 711

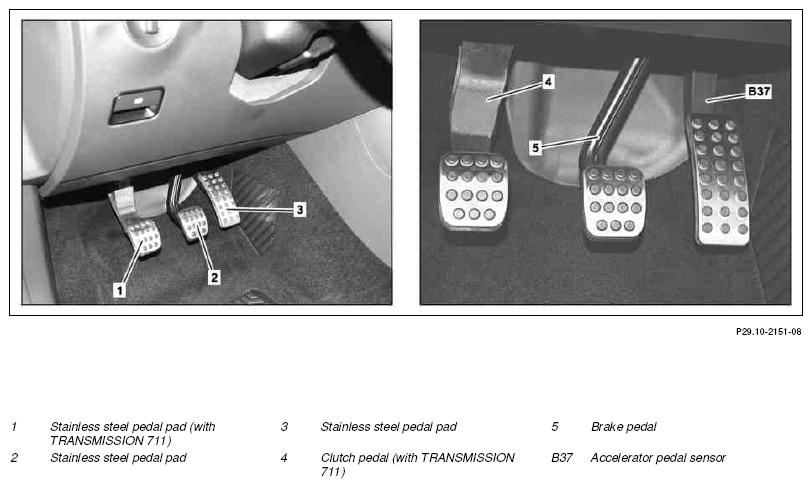

Fig 1: Identifying Pedal Pads

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove pedal rubber support of accelerator pedal sensor (B37) and of brake pedal (5)	The rubber pedal pads are no longer required.
2	Remove pedal rubber support of clutch pedal (4)	With TRANSMISSION 711 The rubber pedal pad is no longer required.
	Install
3	Attach stainless steel pedal covers (2, 3) on the accelerator pedal sensor (B37) and the brake pedal (5)	Do not use any lubricants. Otherwise the firm seating of the stainless steel pedal covers (2, 3) is not assured.
4	Attach stainless steel pedal cover (1) on the clutch pedal (4)	With TRANSMISSION 711
		Do not use any lubricants. Otherwise the firm seating of the stainless steel pedal cover (1) is not assured.
	Update Vehicle Documentation (VeDoc)
5	Attach a note "Stainless steel pedal pads retrofitted as per AN29.10-P-0002NKB " under field organization texts for DG 29 and DG 30
