Remove/install mechanical stop lamp switch - AR42.10-P-0040NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246

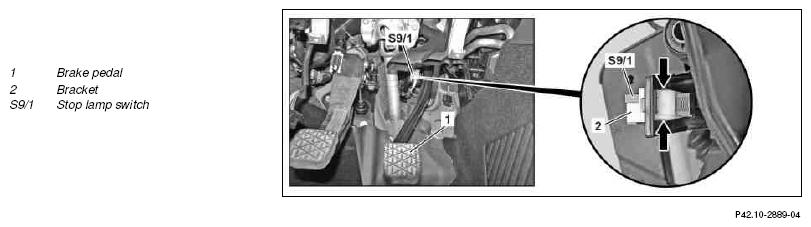

Fig 1: Identifying Mechanical Stop Lamp Switch Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove driver kneebag	Vehicles with CODE 294 (Kneebag)	AR91.60-P-0200NKB
2	Detach electrical connector from brake light switch (S91)
3	Pull brake light switch (S91) out of bracket (2)
4	Pull out brake light switch (S9/1), press catches together (arrows) and detach bracket (2)	Depress brake pedal (1) and insert brake light switch (S9/1) with bracket (2). Press brake light switch (S9/1) in fully, release the brake pedal (1) and pull back with little force (reference value 20 N).
5	Install in the reverse order
