Remove/install paneling on rear center section - AR68.30-P-4785NKB

MODEL 242, 246

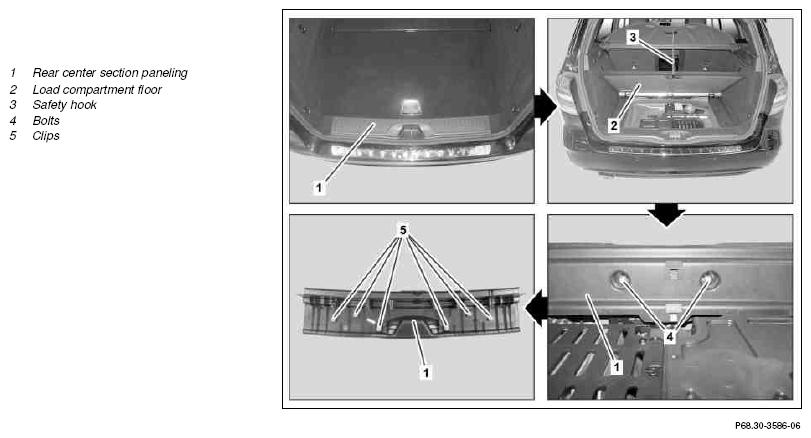

Fig 1: Identifying Rear Center Section Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Lift cargo floor area (2) and secure with safety hook (3)
2	Remove screws/bolts (4)
3	Unclip rear center section panel (1) and remove upward	Carefully detach rear center section panel (1). Otherwise the rear center section panel (1) can be damaged.
		Clip remover	Fig 2
4	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
