Remove/install accelerator pedal - AR30.12-P-1321NKB

MODEL 117, 156, 176, 242, 246

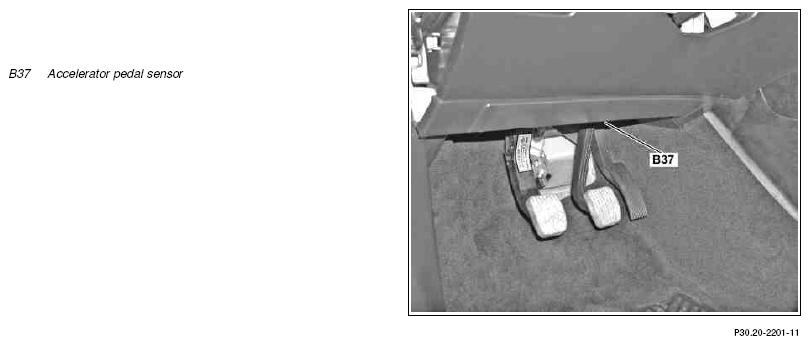

Fig 1: Identifying Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Bring driver seat into the rearmost seat position
2	Remove driver kneebag	MODEL 117, 156, 176, 242, 246 with CODE 294 (Kneebag)
			AR91.60-P-0200NKB
3	Unscrew plastic nut from accelerator pedal on firewall	Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
4	Disconnect electrical connector on accelerator pedal sensor (B37) and remove accelerator pedal	The accelerator pedal must not be disassembled. It will be damaged otherwise.
5	Install in the reverse order

ACCELERATOR PEDAL

Number	Designation		MODEL 117	MODEL 156
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	5	5

ACCELERATOR PEDAL

Number	Designation		MODEL 176, 246	MODEL 242
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	5	5
