Overview of system components for adaptive damping system (ADS) - GF32.32-P-9997RDA
MODEL 172.4 as of model year 2017 with CODE 483 (ADVANCED AGILITY package)

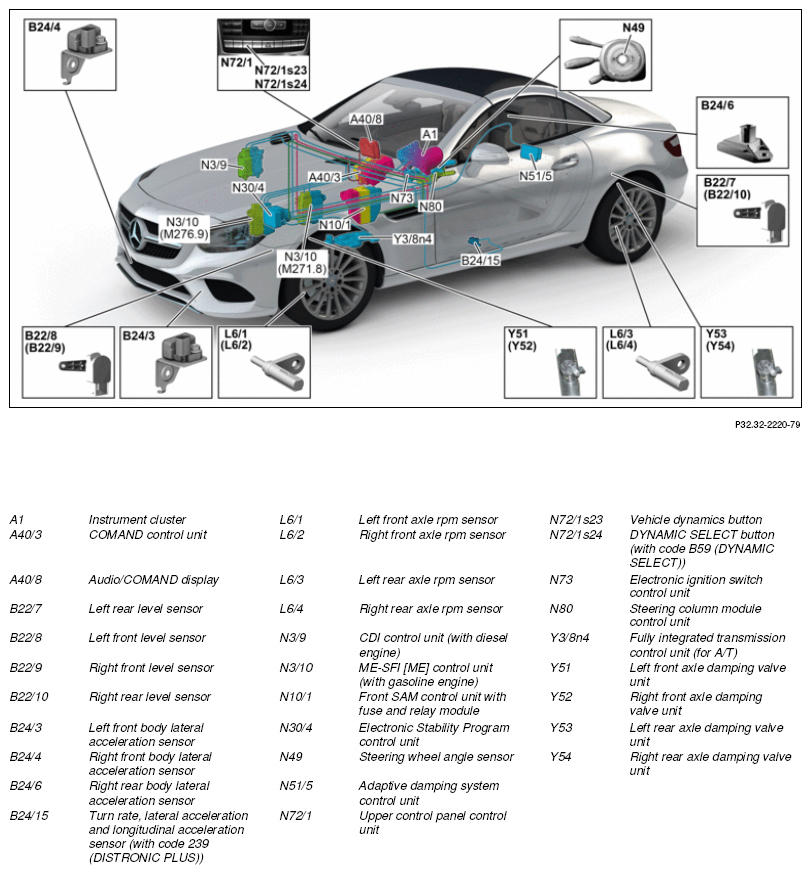

Overview of system components

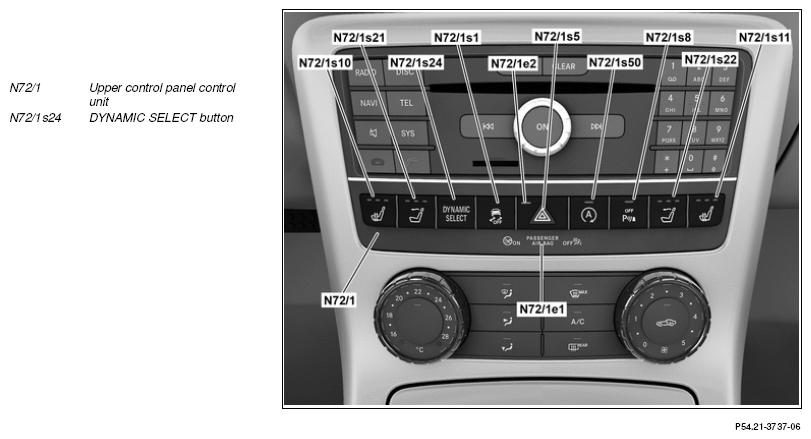

Illustration shows center console with code B59 (DYNAMIC SELECT)

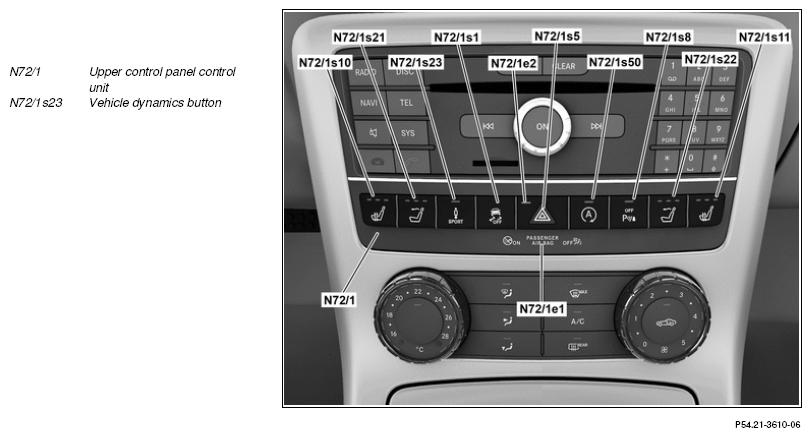

Illustration shows center console
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for COMAND controller unit | Model 172.4 as of model year 2017 with code 483 (ADVANCED AGILITY package) with code 531 (COMAND APS) A40/3 |
GF82.85-P-3136RDM | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RD | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 172.4 as of model year 2017 with code 239 (DISTRONIC PLUS) with code 483 (ADVANCED AGILITY package) B24/15 |
GF42.45-P-4810RD | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 as of model year 2017 with code 483 (ADVANCED AGILITY package) N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 274.9 as of model year 2017 with code 483 (ADVANCED AGILITY package) |
GF07.61-P-6000MRE | |
| Model 172.4 with engine 276.8 as of model year 2017 with code 483 (ADVANCED AGILITY package) N3/10 |
GF07.61-P-6000MNC | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119RDA | |
| Component description for adaptive damping system control unit | N51/5 | GF32.32-P-1010RDA | |
| Upper control panel control unit, component description | N72/1, N72/1s23, N72/1s24 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Component description for fully integrated transmission control unit | Model 172 with transmission 725.0 as of model year 2017 with code 483 (ADVANCED AGILITY package) Y38n4 |
GF27.60-P-5165ANH | |
| Table of contents for function description of adaptive damping system (ADS) | GF32.32-P-0998RD |
