Lift/jack up vehicle - AR00.60-P-1000V
MODEL 171, 172

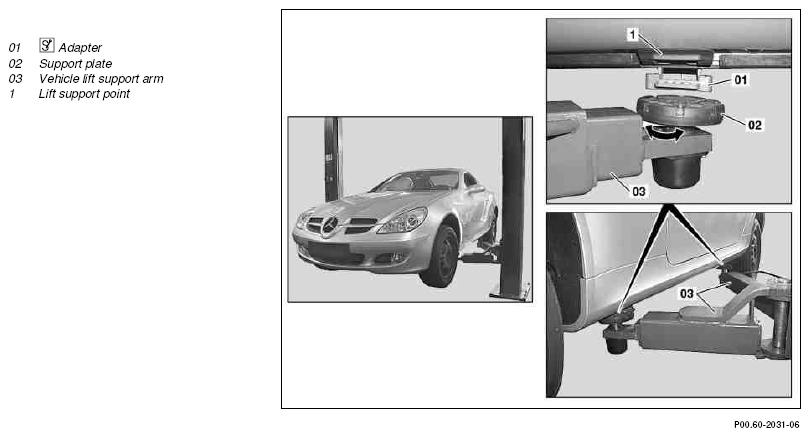

Illustrated on model 171
| Lift/lower vehicle | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands have secure and adequate footing. An authorized person must occupy the driver seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0008-01A | |
| 1 | Clip adapter (01) into lift support points (1) of longitudinal members | When removing underfloor paneling. | |
| Fig 2 | |||
| 2 | Adjust support plates (02) of vehicle lift support arms (03) to height of vehicle | ||
| 3.1 | Raise vehicle with vehicle lift. | ||
| 3.2 | Lift vehicle with inspection pit lift or floor jack | Pit lift | AR00.60-P-1000-01V |
| Trolley jack | |||
| 4.1 | For this reason, secure vehicle on vehicle lift against tilting and falling down. | AR00.60-P-0100T | |
| 4.2 | Secure vehicle on inspection pit lift or floor jack against tilting and falling down | Jack stand |
|
| 5 | Lower vehicle in reverse order |
