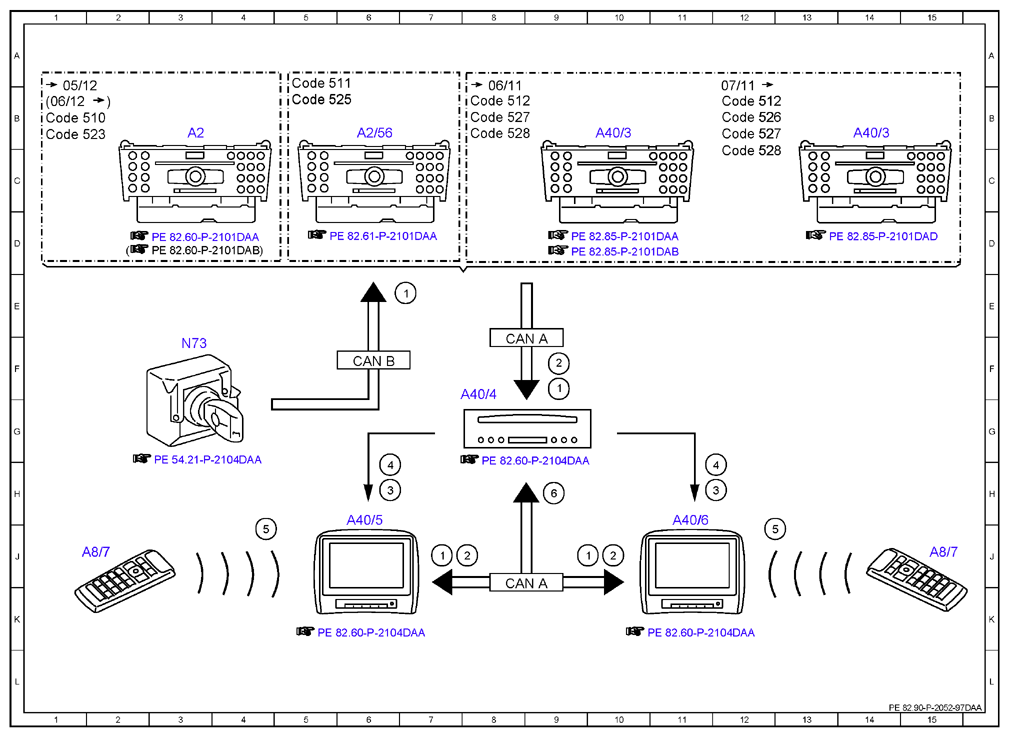

Electrical function schematic for rear entertainment switch on/off behavior and system settings - PE82.90-P-2052-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15 up to model year 2016 with CODE 864 (Rear entertainment system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9J |
| 1 | Circuit 15, status | 7J |
| 1 | Circuit 15, status | 9F |
| 1 | Circuit 15, status | 7E |
| 2 | Telematics CAN active, signal | 8J |
| 2 | Telematics CAN active, signal | 9F |
| 2 | Telematics CAN active, signal | 10J |
| 3 | Analog picture signal, signal | 6H |
| 3 | Analog picture signal, signal | 12H |
| 4 | Analog audio signal, signal | 6H |
| 4 | Analog audio signal, signal | 12H |
| 5 | Infrared, signal | 4J |
| 5 | Infrared, signal | 12J |
| 6 | Switch on/off, signal | 9H |
| A2 | Radio | 3B |
| A2/56 | Radio with auto pilot system | 6B |
| A40/3 | COMAND control unit | 10B |
| A40/3 | COMAND control unit | 14B |
| A40/4 | DVD player | 8F |
| A40/5 | Left rear display | 6H |
| A40/6 | Right rear display | 11H |
| A8/7 | Remote control | 2J |
| A8/7 | Remote control | 15J |
| CAN A | Telematics CAN | 8K |
| CAN A | Telematics CAN | 8F |
| CAN B | Interior CAN | 6F |
| Code 510 | Audio 20 with CD changer | 1B |
| Code 511 | Audio 50 APS incl. DVD changer | 5B |
| Code 512 | COMAND APS with DVD changer | 8B |
| Code 512 | COMAND APS with DVD changer | 12B |
| Code 523 | Audio 20 radio | 1B |
| Code 525 | Audio 50 APS radio (CD) | 5B |
| Code 526 | COMAND with single DVD drive (without navigation) | 12B |
| Code 527 | COMAND APS (with navigation) | 8B |
| Code 527 | COMAND APS (with navigation) | 12B |
| Code 528 | COMAND with DVD changer | 8B |
| Code 528 | COMAND with DVD changer | 12C |
| N73 | Electronic ignition switch control unit | 3F |
