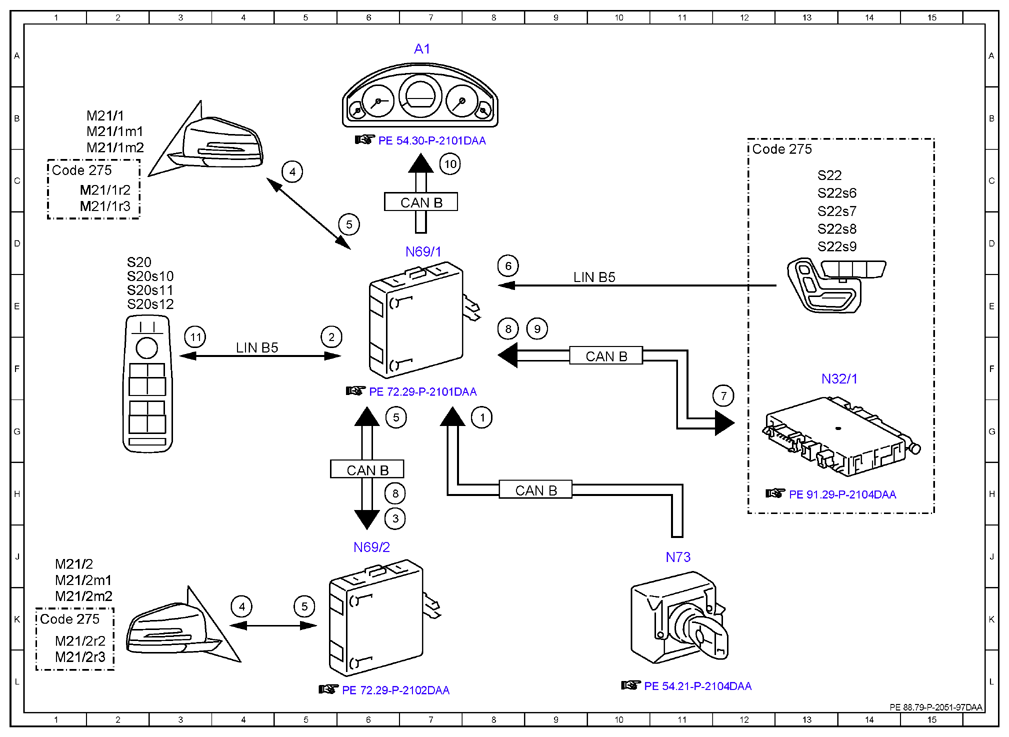

Electrical function schematic for mirror lens adjustment - PE88.79-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8G |
| 10 | Acknowledgement tone after memory positions stored successfully, request | 7C |
| 11 | Visual feedback, actuation | 3F |
| 2 | Driver-side switch group, status | 5F |
| 3 | Outside mirror actuator motor, request | 6H |
| 4 | Outside mirror actuator motor, actuation | 4K |
| 4 | Outside mirror actuator motor, actuation | 5C |
| 5 | Outside mirror actuator motor, signal | 5K |
| 5 | Outside mirror actuator motor, signal | 6D |
| 5 | Outside mirror actuator motor, signal | 6G |
| 6 | Seat adjustment switch group, status | 8D |
| 7 | Store/call up outside mirror position, request | 12G |
| 8 | Store/call up position of exterior mirrors actuation | 6H |
| 8 | Store/call up position of exterior mirrors actuation | 8E |
| 9 | Save acknowledgment tone, request | 9E |
| A1 | Instrument cluster | 7A |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 7C |
| Code 275 | Front passenger seat memory package / electrically adjustable driver seat | 12C |
| Code 275 | Front passenger seat memory package / electrically adjustable driver seat | 1K |
| Code 275 | Front passenger seat memory package / electrically adjustable driver seat | 1C |
| LIN B5 | Left front door LIN | 4F |
| LIN B5 | Left front door LIN | 9E |
| M21/1 | Left outside mirror | 1B |
| M21/1m1 | Vertical inclination adjustment actuator motor | 1B |
| M21/1m2 | Horizontal inclination adjustment actuator motor | 1C |
| M21/1r2 | Vertical inclination adjustment potentiometer | 1C |
| M21/1r3 | Horizontal inclination adjustment potentiometer | 1C |
| M21/2 | Right outside mirror | 1J |
| M21/2m1 | Vertical inclination adjustment actuator motor | 1J |
| M21/2m2 | Horizontal inclination adjustment actuator motor | 1K |
| M21/2r2 | Vertical inclination adjustment potentiometer | 1K |
| M21/2r3 | Horizontal inclination adjustment potentiometer | 1L |
| N32/1 | Driver seat control unit | 13F |
| N69/1 | Left front door control unit | 7D |
| N69/2 | Right front door control unit | 6J |
| N73 | Electronic ignition switch control unit | 11J |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2D |
| S20s10 | Left outside mirror adjustment switch | 2E |
| S20s11 | Right outside mirror adjustment switch | 2E |
| S20s12 | Outside mirror adjustment switch | 2E |
| S22 | Left front seat adjustment switch group | 13C |
| S22s6 | Left front memory function switch | 13C |
| S22s7 | Left front memory 1 switch | 13D |
| S22s8 | Left front memory 2 switch | 13D |
| S22s9 | Left front memory 3 switch | 13D |
