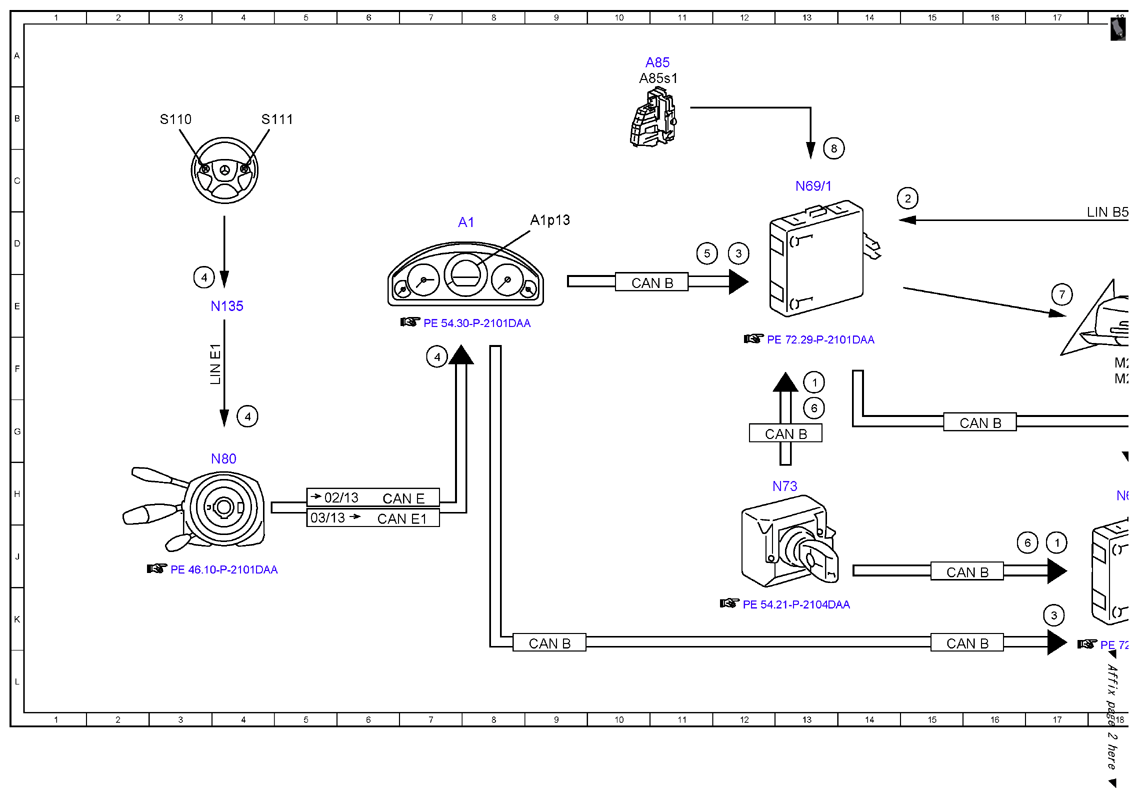

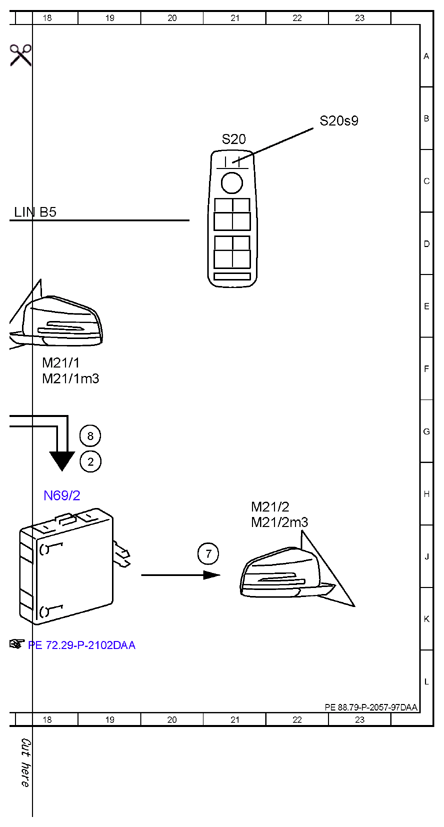

Electrical function schematic for folding outside mirrors - PE88.79-P-2057-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) without CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13F |
| 1 | Circuit 15, status | 17J |
| 2 | Driver-side switch group, status | 19H |
| 2 | Driver-side switch group, status | 15C |
| 3 | Vehicle speed, signal | 12D |
| 3 | Vehicle speed, signal | 17K |
| 4 | Multifunction steering wheel button group, signal | 4G |
| 4 | Multifunction steering wheel button group, signal | 7F |
| 4 | Multifunction steering wheel button group, signal | 3E |
| 5 | Automatic power folding mirrors, status | 11D |
| 6 | Central locking (CL[ZV]), status | 13G |
| 6 | Central locking (CL[ZV]), status | 17J |
| 7 | Outside mirror actuator motor, actuation | 21J |
| 7 | Outside mirror actuator motor, actuation | 17E |
| 8 | Door rotary tumbler switch, status | 13C |
| 8 | Door rotary tumbler switch, status | 19G |
| A1 | Instrument cluster | 7D |
| A1p13 | Multifunction display | 9D |
| A85 | Left front door lock | 11A |
| A85s1 | Left front door rotary tumbler switch | 10A |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 15J |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 9K |
| CAN E | Chassis CAN | 6H |
| CAN E1 | Chassis CAN | 16H |
| LIN B5 | Left front door LIN | 18D |
| LIN E1 | Steering LIN | 3F |
| M21/1 | Left outside mirror | 18F |
| M21/1m3 | Outside mirror fold-in/fold-out electric motor | 18F |
| M21/2 | Right outside mirror | 21H |
| M21/2m3 | Outside mirror fold-in/fold-out electric motor | 21J |
| N135 | Steering wheel electronics | 3E |
| N69/1 | Left front door control unit | 13C |
| N69/2 | Right front door control unit | 18H |
| N73 | Electronic ignition switch control unit | 12H |
| N80 | Steering column module control unit | 3H |
| S110 | Left multifunction steering wheel button group | 3B |
| S111 | Right multifunction steering wheel button group | 4B |
| S20 | Driver-side power window and outside mirror adjustment switch group | 21B |
| S20s9 | Outside mirror fold-in/fold-out switch | 22B |
