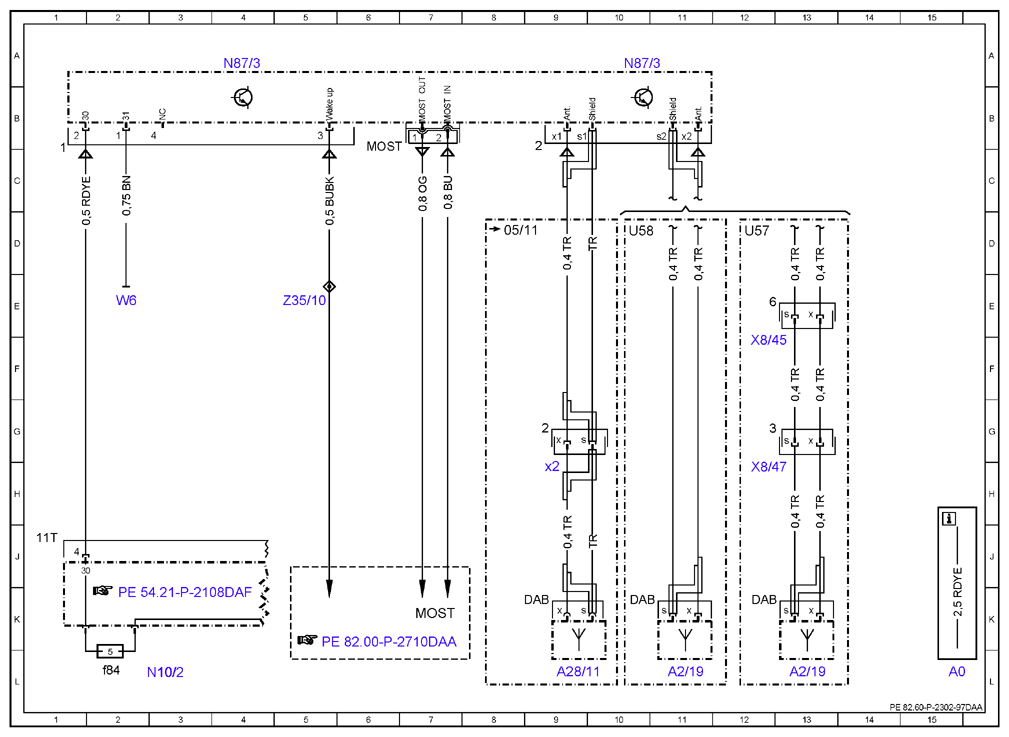

Wiring diagram for Digital Audio Broadcasting control unit system (DAB) - PE82.60-P-2302-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 537 (Digital radio) Control unit N87/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/19 | FM 2 and DAB antenna amplifier | 11L |
| A2/19 | FM 2 and DAB antenna amplifier | 13L |
| A28/11 | Multifunction antenna | 9L |
| A28/11x2 | Multifunction antenna electrical connector | 9H |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N87/3 | Digital Audio Broadcasting control unit | 4A |
| N87/3 | Digital Audio Broadcasting control unit | 10A |
| U57 | Valid for model 212.2 | 12D |
| U58 | Valid for model 212.0/1 | 10D |
| W6 | Left rear wheel well ground point | 2E |
| X8/45 | Left vehicle interior and tailgate electrical connector | 12F |
| X8/47 | Left and right liftgate electrical connector | 12H |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
