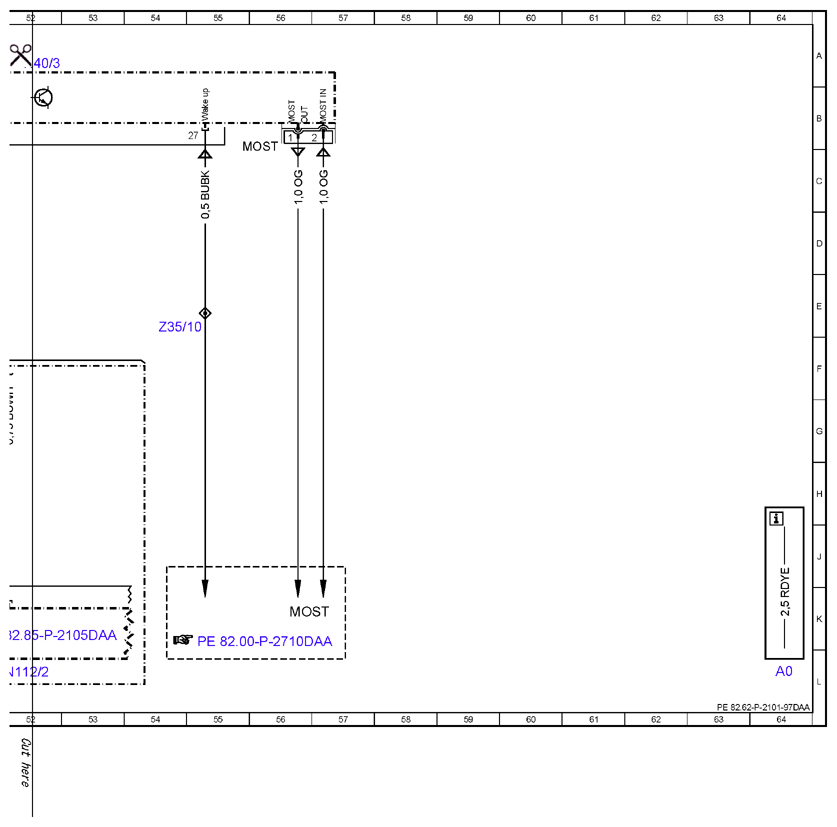

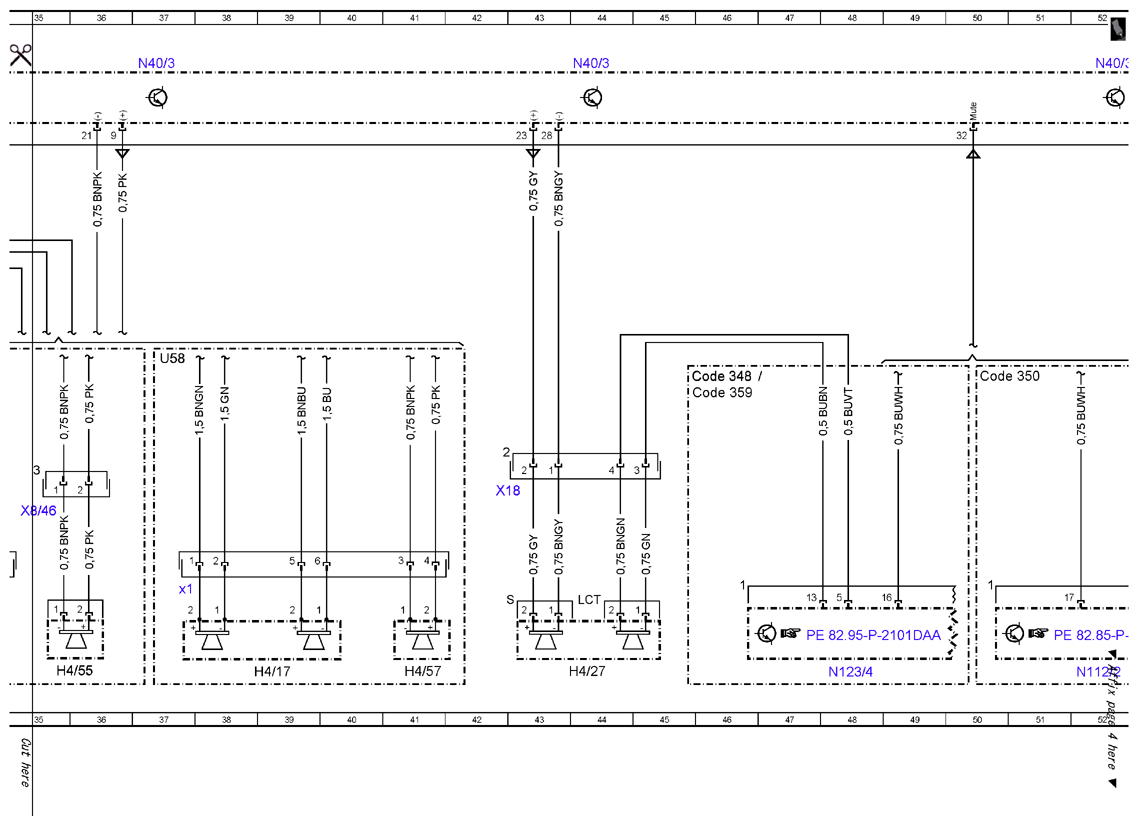

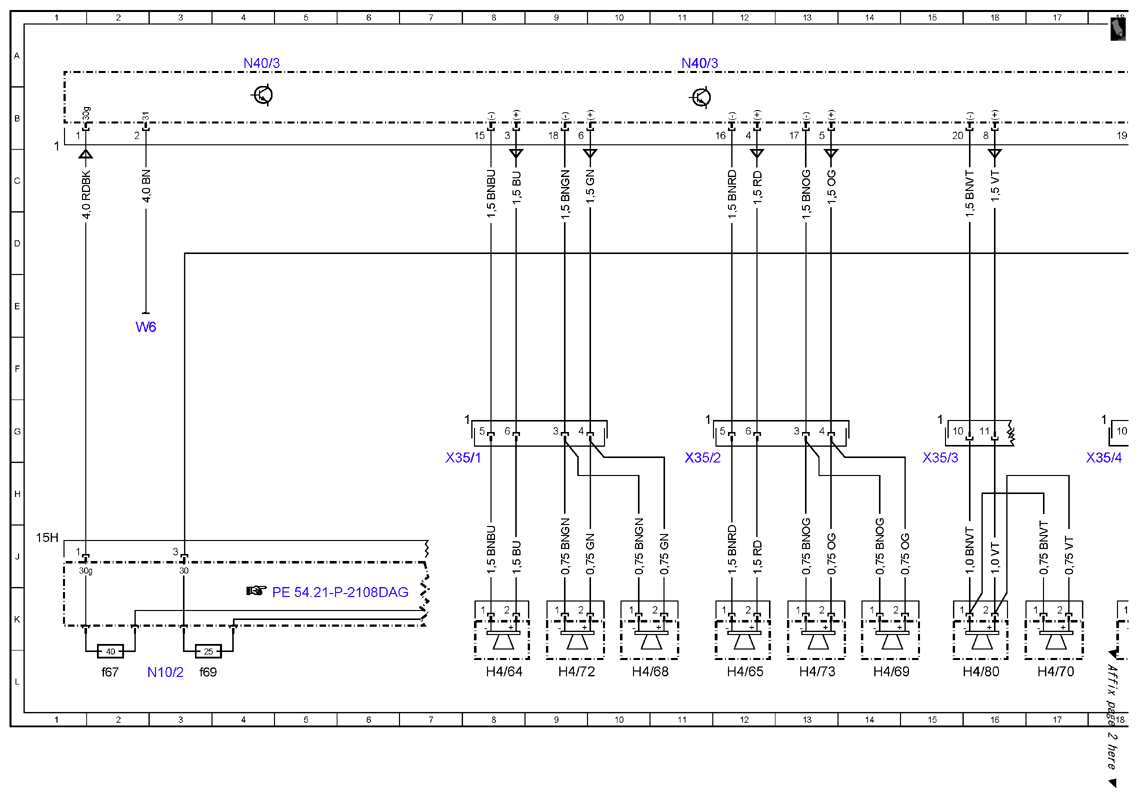

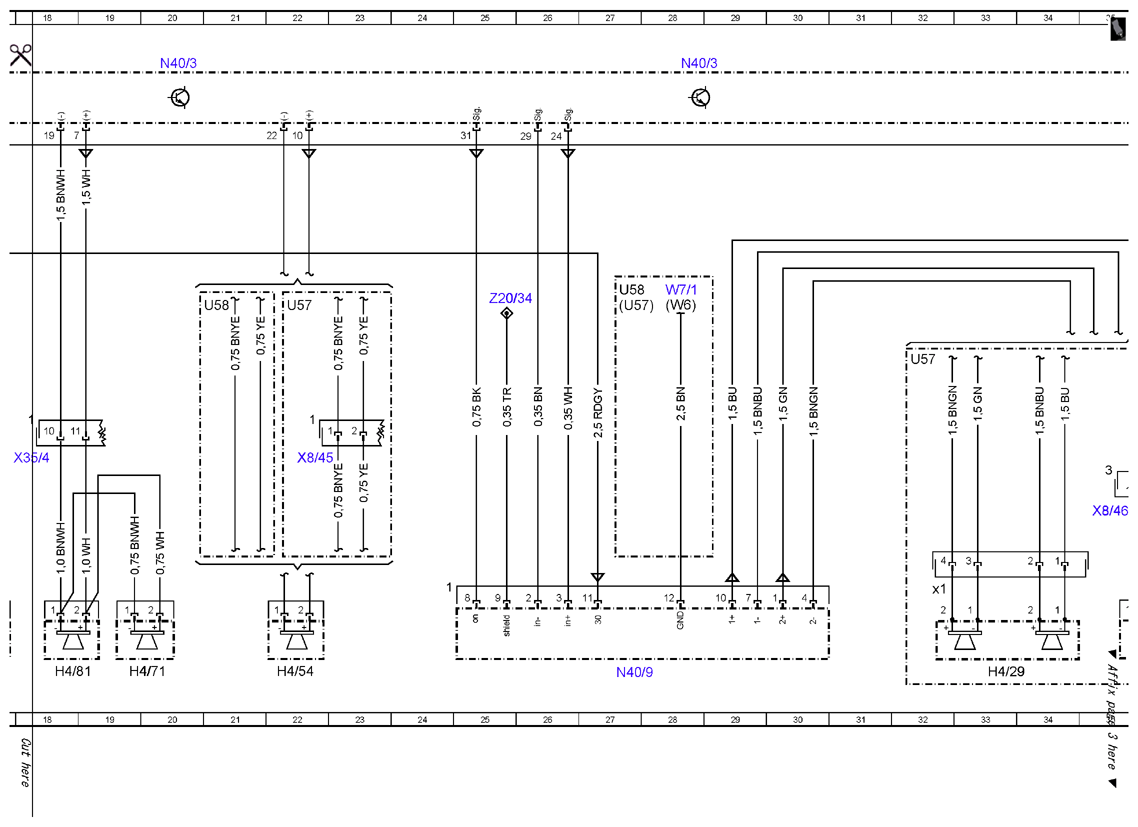

Sound amplifier control unit wiring diagram - PE82.62-P-2101-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 810 (Sound system) Control unit N40/3, N40/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| Code 348 | Emergency call/assistance system | 45F |
| Code 350 | E-call emergency call system Europe Generation 2 | 50F |
| Code 359 | TELEAID emergency call system | 45F |
| H4/17 | Bass speaker | 39L |
| H4/17x1 | Bass speaker electrical connector | 37K |
| H4/27 | Center instrument panel speaker | 44L |
| H4/29 | Bass speaker | 33L |
| H4/29x1 | Bass speaker electrical connector | 32K |
| H4/54 | Left rear surround speaker | 22L |
| H4/55 | Right rear surround speaker | 35L |
| H4/57 | Right rear surround speaker | 41L |
| H4/64 | Left front door sound system bass speaker | 8L |
| H4/65 | Right front door sound system bass speaker | 12L |
| H4/68 | Left front door sound system tweeter | 10L |
| H4/69 | Right front door sound system tweeter | 14L |
| H4/70 | Left rear door sound system tweeter | 17L |
| H4/71 | Right rear door sound system tweeter | 19L |
| H4/72 | Left front door sound system midrange speaker | 9L |
| H4/73 | Right front door sound system midrange speaker | 13L |
| H4/80 | Left rear door sound system midrange speaker | 16L |
| H4/81 | Right rear door sound system midrange speaker | 18L |
| MOST | Media Oriented System Transport | 56K |
| MOST | Media Oriented System Transport | 56C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f67 | Fuse 67 | 2L |
| N10/2f69 | Fuse 69 | 3L |
| N112/2 | Telematics services communication module | 52L |
| N123/4 | Emergency call system control unit | 48L |
| N40/3 | Sound system amplifier control unit | 4A |
| N40/3 | Sound system amplifier control unit | 11A |
| N40/3 | Sound system amplifier control unit | 20A |
| N40/3 | Sound system amplifier control unit | 28A |
| N40/3 | Sound system amplifier control unit | 37A |
| N40/3 | Sound system amplifier control unit | 44A |
| N40/3 | Sound system amplifier control unit | 52A |
| N40/9 | Rear bass speaker amplifier | 27L |
| U57 | Valid for model 212.2 | 22E |
| U57 | Valid for model 212.2 | 27E |
| U57 | Valid for model 212.2 | 32F |
| U58 | Valid for model 212.0/1 | 21E |
| U58 | Valid for model 212.0/1 | 27E |
| U58 | Valid for model 212.0/1 | 37F |
| W6 | Left rear wheel well ground point | 2E |
| W6 | Left rear wheel well ground point | 28E |
| W7/1 | Right taillamp trunk ground point | 28E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 43H |
| X35/1 | Left front door electrical connector | 8H |
| X35/2 | Right front door electrical connector | 11H |
| X35/3 | Left rear door electrical connector | 15H |
| X35/4 | Right rear door electrical connector | 18H |
| X8/45 | Left vehicle interior and tailgate electrical connector | 22H |
| X8/46 | Right vehicle interior and tailgate electrical connector | 35H |
| Z20/34 | Tracer wire connector sleeve | 25E |
| Z35/10 | MOST wake-up signal connector sleeve | 54E |
