Remove/install fender liner in rear fender - AR88.10-P-1400RK

MODEL 231

Shown on removed rear wheel

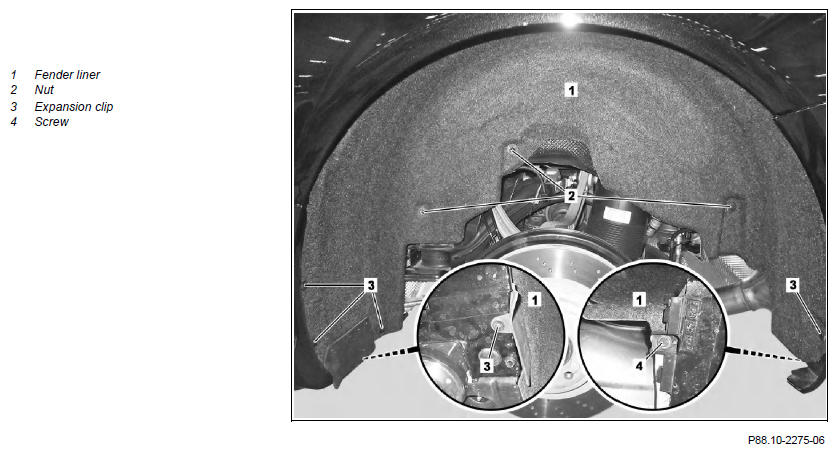

Fig 1: Rear Fender Liner Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

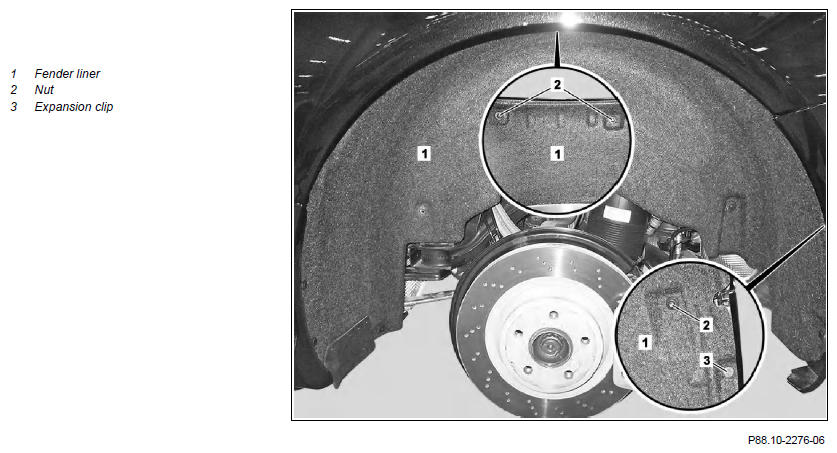

Fig 2: Rear Fender Liner Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Lift vehicle on vehicle list		AR00.60-P.1000TX
2	Remove bolt (4)
3	Remove expansion clips (3)	Check expansion clips (3), replace if required.
4	Unscrew nuts (2)
5	Pull outer edge of fender liner (1) toward inside from fender edge and remove fender liner (1) downward
6	Install in the reverse order
