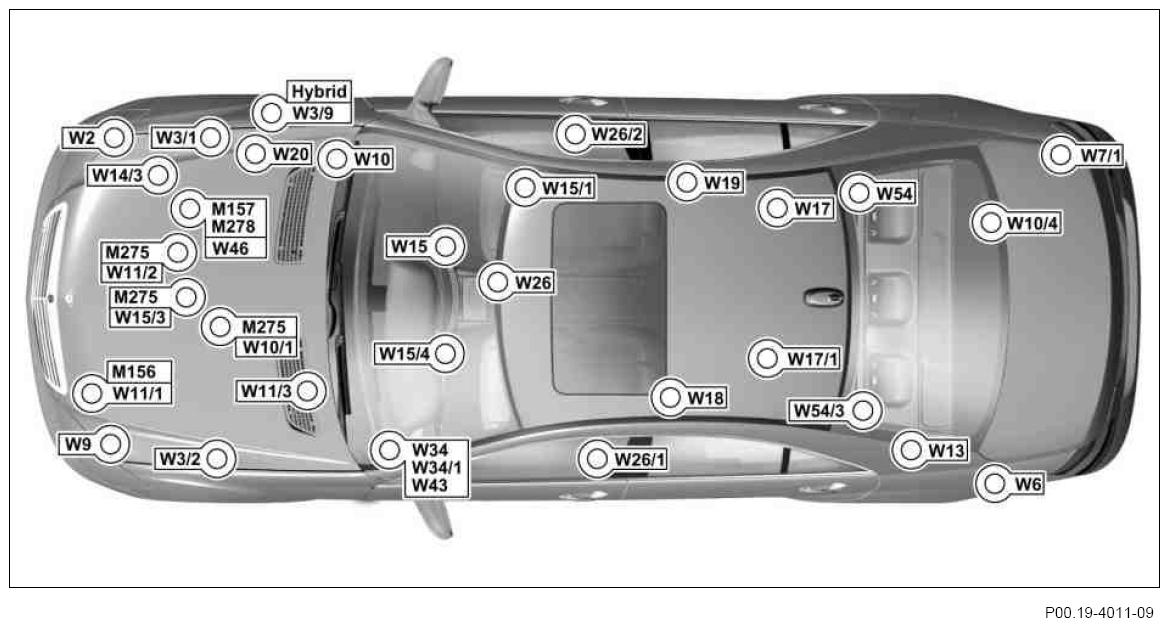

Location and assignment of ground points - GF00.19-P-2000SAA
MODEL 221
| W2 | Ground (right front, at lamp unit) | GF00.19-P-2000-02SAA | |
| W3/1 | Ground (right front wheelhouse) | GF00.19-P-2000-02SAA | |
| W3/2 | Ground (left front wheelhouse) | GF00.19-P-2000-01SAA | |
| W3/9 | DC/DC converter ground, right front wheel arch | GF00.19-P-2000-02SAA | |
| W6 | Ground (left wheelhouse in luggage compartment) | GF00.19-P-2000-06SAA | |
| W7/1 | Ground (right taillamp in trunk) | GF00.19-P-2000-09SAA | |
| W9 | Ground (left front, at lamp unit) | GF00.19-P-2000-01SAA | |
| W10 | Ground (battery) | GF00.19-P-2000-02SAA | |
| W10/1 | Ground (electronics) | GF00.19-P-2000-02SAA | |
| W10/4 | Ground (2nd battery) | GF00.19-P-2000-09SAA | |

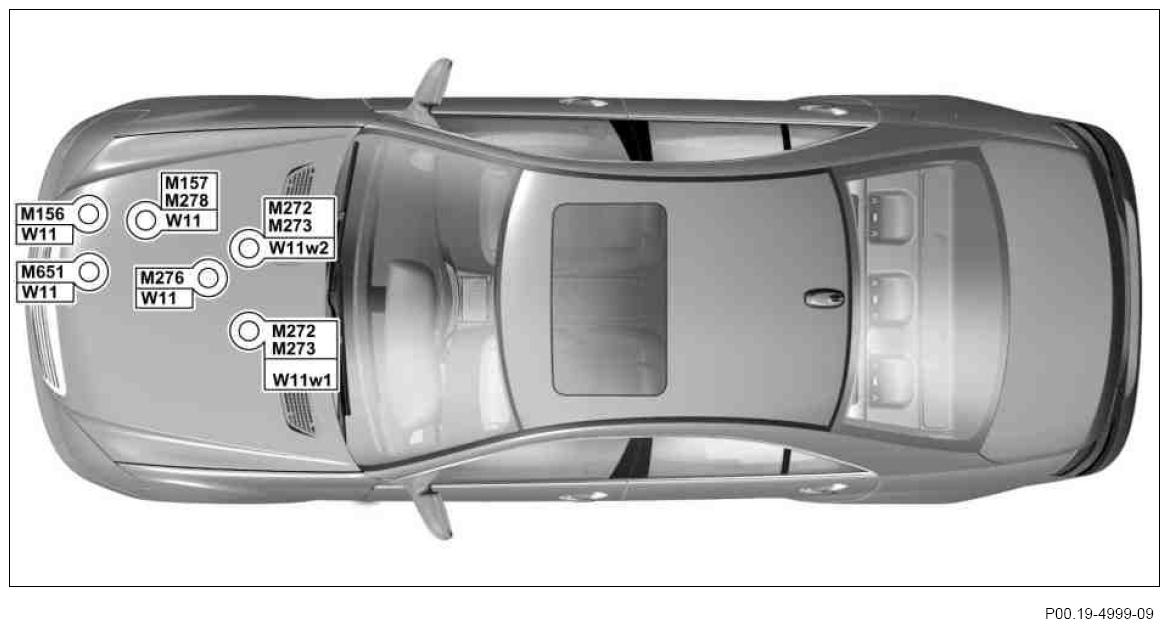

| W11 | Ground (engine - electrical line connected) | GF00.19-P-2000-02SAA | |
| W11w1 | Ground (engine - electrical line connected), left cylinder bank | GF00.19-P-2000-01SAA | |
| W11w2 | Ground (engine - electrical line connected), right cylinder bank | GF00.19-P-2000-02SAA | |
| W11/1 | Ground (engine - ground strap) | GF00.19-P-2000-01SAA | |
| W11/2 | Ground (engine, right) | GF00.19-P-2000-02SAA | |
| W11/3 | Ground (engine, left) | GF00.19-P-2000-01SAA | |
| W13 | Ground (heated rear window) | GF00.19-P-2000-04SAA | |
| W14/3 | Ground (SBC - right) | GF00.19-P-2000-02SAA | |
| W15 | Power ground (electronics) | GF00.19-P-2000-03SAA | |
| W15/1 | Ground (right footwell) | GF00.19-P-2000-05SAA | |
| W15/3 | Ground (electronics) | GF00.19-P-2000-02SAA | |
| W15/4 | Ground (cockpit, left footwell) | GF00.19-P-2000-04SAA | |
| W17 | Ground (right rear seat) | GF00.19-P-2000-05SAA | |
| W17/1 | Ground (left rear seat) | GF00.19-P-2000-04SAA | |
| W18 | Ground (left front seat crossmember) | GF00.19-P-2000-04SAA | |
| W19 | Ground (right front seat crossmember) | GF00.19-P-2000-05SAA | |
| W20 | Power electronics ground strap | GF00.19-P-2000-02SAA | |
| W26 | Ground (restraint systems control unit) | GF00.19-P-2000-03SAA | |
| W26/1 | Ground (seat, left front sidebag) | GF00.19-P-2000-04SAA | |
| W26/2 | Ground (seat, right front sidebag) | GF00.19-P-2000-05SAA | |
| W34 | Ground (left footwell) | GF00.19-P-2000-04SAA | |
| W34/1 | Ground (electronics - left footwell) | GF00.19-P-2000-04SAA | |
| W43 | Ground (reference, image transmission systems) | GF00.19-P-2000-04SAA | |
| W46 | Ground (air pump) | GF00.19-P-2000-02SAA | |
| W54 | Ground (right rear wheelhouse) | GF00.19-P-2000-09SAA | |
| W54/3 | Ground (left rear wheelhouse) | GF00.19-P-2000-04SAA | |
| Location and assignment of ground points, engine compartment, left | GF00.19-P-2000-01SAA | ||
| Location and assignment of ground points, engine compartment, right | GF00.19-P-2000-02SAA | ||
| Arrangement and assignment of ground terminals, cockpit | GF00.19-P-2000-03SAA | ||
| Location and assignment of ground points - interior left | GF00.19-P-2000-04SAA | ||
| Location and assignment of ground points, interior compartment, right | GF00.19-P-2000-05SAA | ||
| Location and assignment of ground points, trunk, left | GF00.19-P-2000-06SAA | ||
| Location and assignment of ground points - trunk right | GF00.19-P-2000-09SAA |
