| A1 |

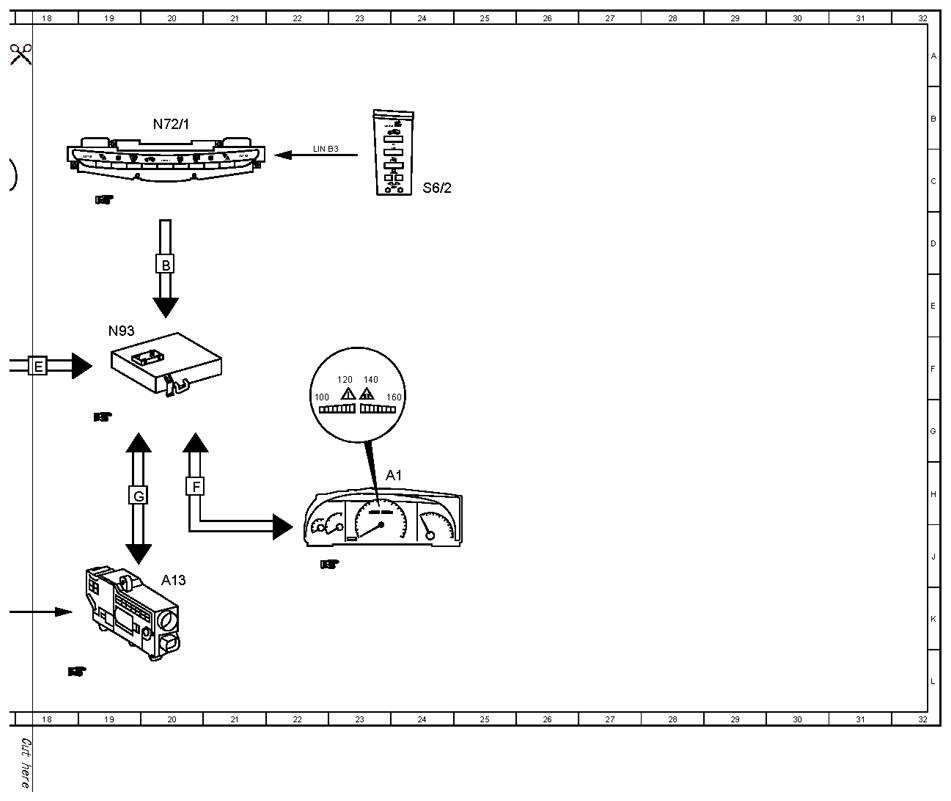

Instrument cluster |
23H |
| A13 |
Electric parking brake control unit |
20J |
| A44/3 |
Rear PTS warning indicator |
16A |
| A7/3 |

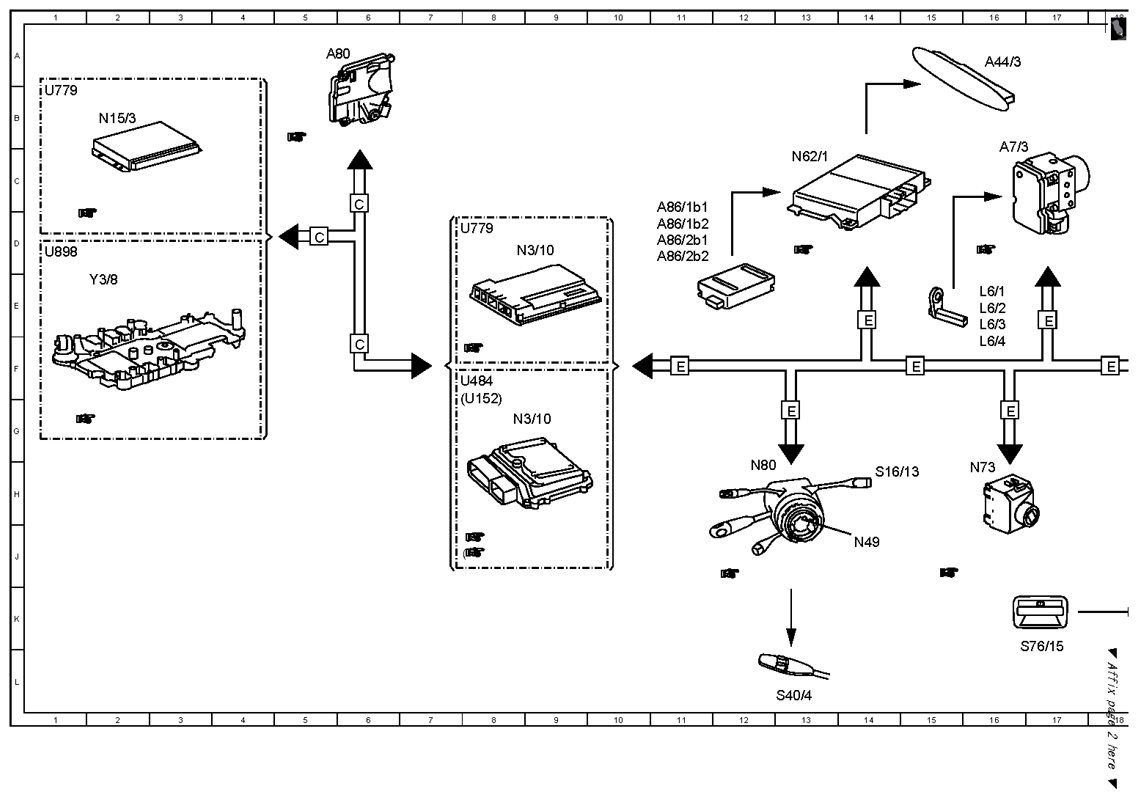

Traction system hydraulic unit |
16C |
| A80 |
Intelligent servo module for DIRECT SELECT |
5A |
| A86/1b1 |
Left outer radar sensor, front bumper |
11D |
| A86/1b2 |
Left inner radar sensor, front bumper |
11D |
| A86/2b1 |
Right outer radar sensor, rear bumper |
11D |
| A86/2b2 |
Right inner radar sensor, rear bumper |
11D |
| L6/1 |
Left front rpm sensor |
16E |
| L6/2 |
Right front rpm sensor |
16E |
| L6/3 |
Left rear rpm sensor |
16E |
| L6/4 |
right rear rpm sensor |
16F |
| LIN B3 |
OBF LIN |
22B |
| N15/3 |
ETC [EGS] control unit |
2B |
| N3/10 |
ME-SFI [ME] control unit |
8G |
| N3/10 |
ME-SFI [ME] control unit |
9D |
| N49 |
Steering angle sensor |
14J |
| N62/1 |
Radar sensors control unit (SGR) |
13C |
| N72/1 |
Upper control panel control unit |
20B |
| N73 |
EIS [EZS] control unit |
16H |
| N80 |
Steering column module |
12H |
| N93 |
Central gateway control unit |
19E |
| S16/13 |
Gear selector switch DIRECT SELECT |
14H |
| S40/4 |
CC [TPM] switch |
13L |
| S6/2 |
Cockpit switch group |
24C |
| S76/15 |
Electric parking brake switch |
17L |
| U152 |
Valid for engine 156 |
7G |
| U484 |
Valid for M273 ME |
7F |
| U484 |
Valid for M273 |
ME |
| U779 |
Valid for engine 275 |
1B |
| U779 |
Valid for engine 275 |
7D |
| U898 |
Not valid for M275 |
1D |
| Y3/8 |
Electric control unit (VGS) |
2E |
